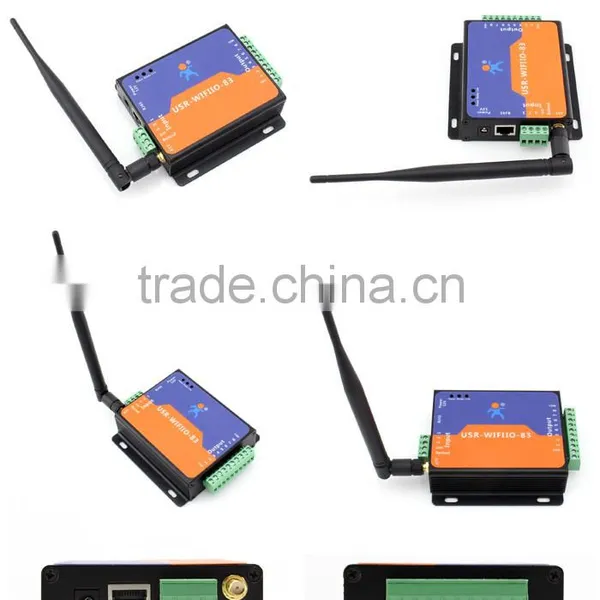

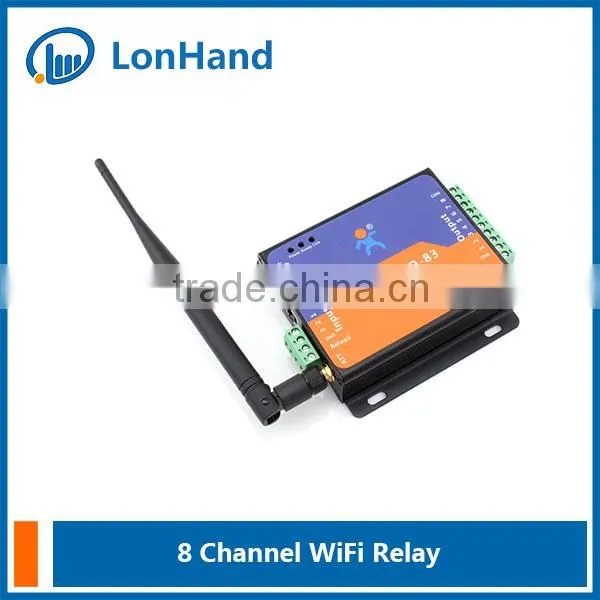

USR-WIFIIO-83 wifi relay board RJ45 8 channel output with app software
- 50000 Unit / Units per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- USR-WIFIIO-83 New version wifi relay board RJ45 8 channel output with app software
- USR-WIFIIO-83 wifi relay board RJ45 8 channel output remote control
- USR-WIFIIO-83 wifi relay board RJ45 8 channel output
- USR-WM1h WIFI Remote Controlled Relay,Support WPS Function---IOT OEM Manufacturer
- USR-WM1h DC12V Power Wifi Relay Remote Control System,Support WPS Function
- USR-WM1h DC12V Power Remote Control WiFi Relay Board,Support WPS Function----High Performance Quality Choice
Product Details
Place of Origin: | Shandong, China | Brand Name: | USR | Model Number: | USR-WIFIIO-83 |
Product Description
Attention: The item is sold only by wholesale, not by retail.
Introduction

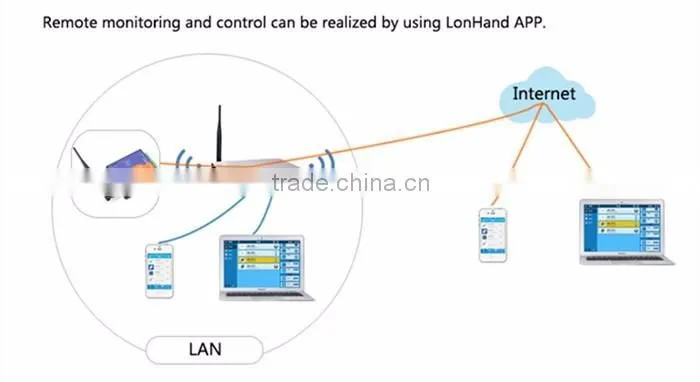

USR-WIFIIO-83 terminal controller is developed for the application in the field of smart home, Internet of Things, industrial control and so on. Remote monitoring and control can be easily realized by using our LonHand software.USR-WIFIIO-83 WiFi relay can be remotely switched on or off by smartphone and computer.
Features
- Control switches remotely
- 8 channel output,3 channel input
- Max working current up to 10A
- Supply app based on Android,IOS,Windows and MAC
- Support timing function
Parameter
Parameter | Value |
Dimension | 104.5*83*28.7mm |
Supply Voltage | DC 12V |
Number of Ports | 8 outputs 3 inputs |
Standby Power Consumption | Typical: 3W Max: 6W |
Input Port Operation Mode | Passive switch |
Max Output Ports Voltage/Current | AC 250V/10A |
Operating Temperature | -25~75°C |
Storage Temperature | -40~85°C |
Storage Humidity | 5%~95%RH |
Packing list | USR-WIFIIO-83, 12v power adapter |

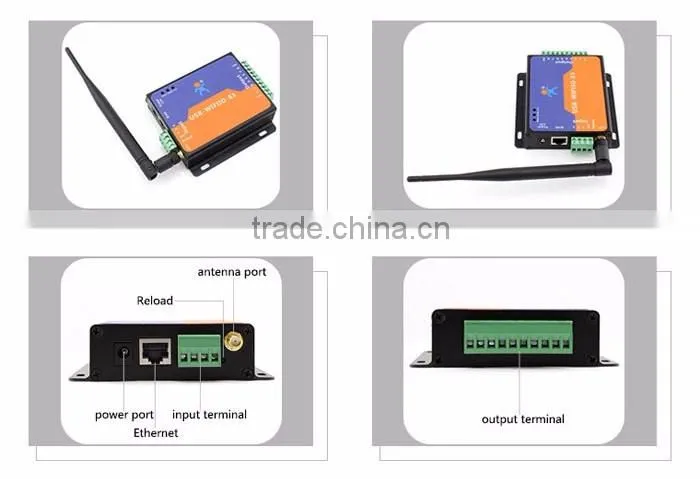

Structure
Jinan USR IOT Technology Limited has been focusing on IOT and M2M field for more than 6 years. We offer networking products
such as serial device server, Ethernet module/server, GPRS DTU, WIFI module and remote relay. We have professional R&D
teams for hardware and software, phone APP and server. And we can provide OEM & ODM service for clients.Our company has
rich experience in system solutions such as smart home system, intelligence fire, agricultural network,temperature and humidity
acquisition, industrial control, attendance, entrance guard system and remote control.
- Service: 2 years guarantee, and professional technical staff help.
- Supply ability: We usually have 3000-5000 units in stock for urgent orders.
- Capacity: 50K/week, can meet the demand of most enterprises application.
- Lifetime: At least 5 years for each device, can still produce just if you need.
- Cooperation: Welcome the cooperation with distributors all over the world.
Shipping ways
- Southeast Asia, Mid East and Australia: Egypt, Israel, Pakistan, Turkey, India, Singapore, Thailand, New Zealand ect. We choose DPEX or ARAMEX. It may take 7-15 days.
- Russian Federation: we only send orders by EMS or CPAM. It will take 20-45 days.
- South America: Brazil, Chile, Peru, Argentina, Columbia ect. We choose EMS or CPAM for shipping.It will take 20-45 days. If you really need DHL, please contact us.
- North America and Most of Europe: We choose DHL, except cities that DHL can not reach. It will take 7-10 days.
Return/refund policy
- If you get a defective item and you do not like the item we send to you, Please contact us within 5 days after you receive your order. item must be returned with its original packaging and accessories.Customer is responsible for shipping charges of returned item.We will refund the money to you when we get the returned item. Or we can send you a new one according to your demand.
- if item is lost in the transportation, we will fully refund to you.
