USR-GM3 GPRS Serial Module UART TTL to GPRS DTU Support Heartbeat Package Mechanism

   USR-GM3 is highly-integrated UART to GSM/GPRS module, Users can easily make communication with it among serial device,cellphone and network device.USR-GM3 is an embedded GSM module. It is designed for embedded system, and it is so small and convenient that you can integrate it to your system easily.

Features

• Small and completed function GPRS DTU, transmission between serial and GPRS
• Support GSM850/900,DCS1800/1900
• Support GSM/GPRS/EDGE and 2G/3G/4G card, but don't support 3G/4G network
• Support 2 sockets, Support TCP and UDP
• 4KB cache for each of sockets, user can choose to cache data or not
• Support register package and heart beat package
• Support setting parameters via SMS message
• Support 4 work modes: SMS message transmission mode, network transmission mode and HTTPD mode
• Support basic and extend AT command sets
• Support similar RFC2217
• Support flow control: RTS/CTS
• Support RS485

Parameter

• Baud rate: 2400, 4800, 9600, 14400, 19200, 28800, 33600, 38400, 57600    115200, 230400, 460800, 921600.
• Operating voltage: 3.40V~4.20V
• Operating current: average 55mA~80mA, maximum 750mA
• Operating temperature: -25~+85°C
• Storage temperature: -40~+85°C
• Storage humidity: 5%~95%RH
• Max TX power : GSM900 class4(2W),DCS1800 class1(1W)

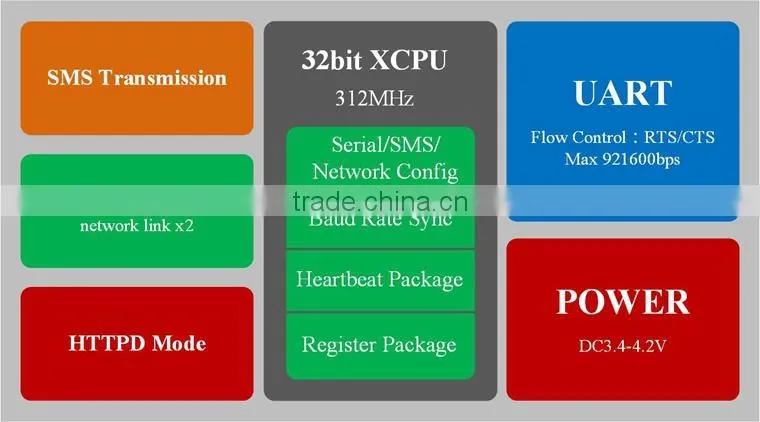

Structure

GM3 has the following features:

1.Built-in Antenna Interface
2.Httpd Client(Click to learn the function of Httpd Client);
3.Two Network Links : GM3 can build TCP link with two target servers and send the same data;
4.SMS Transmission : TTL can directly output SMS content;
5.SMS Configuration : telephone sends SMS to configure GM3;
6.Send SMS : apply to application of SMS alarm;
7.Hardware Flow Control : RTS/CTS;
8.Register Package Mechanism : convenient for server to identify device;
9.Heartbeat Package Mechanism : guarantee normal network connection;
10.Baud Rate Sync : support rapidly set up serial baud rate though network command;

Work Mode

Function
