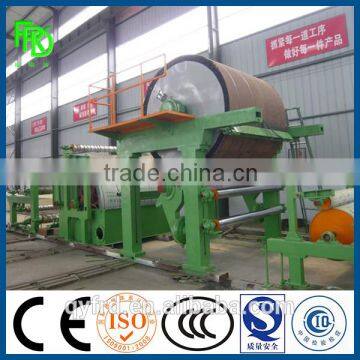

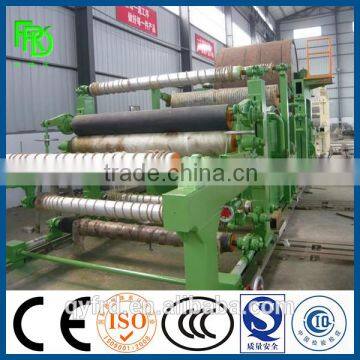

Friends paper machinery equipent 787mm Toilet tissue paper machinery

Main Equipment Parts:

1. Cylinder part: φ 700mm×1100mm stainless steel cylinder mould 1set, φ 220mm×1100mm couch roll 1set,coated by rubber, rubber shore hardness 38℃±2.

2. Dryer part: φ 1000mm×1100mm alloy dryer can 1 set, 1group scraper knife. φ 260mm×1100mm touch roll 1set, coated by rubber, rubber shore hardness 90℃±2.Mechanical loading device.

3.Winding part: φ 900mm×1100mm sweat cylinder (1pc), φ 280mm×2250mm fly rubber roll( 1pc ).rubber HSD75°±2. winding on the sweat cylinder.Equipped with the 250 speed reducer(1 set)

4. Rewinding and cutting part: matching 787mm rewinding and perforating machine, pacial tissue cutting machine.

5. Drive and control part: adopting AC frequency conversion speed, drive step by step.

Technical parameters:

Capacity:0.8-1t/d

Roll width:787-900mm

Output paper weight:13-40g/m2

Width of cylinder mould:1100mm

Rail gauge:1300mm

Working speed:50-80m/min

Cylinder mould:Φ700mm*1100mm

Dryer cylinder:Φ1000mm*1100mm

Pope reel section:winding against winding cylinder

Papermaking equipment selection Chinese, Chinese papermaking equipment is the first Qinyang Friends. Qinyang City Friends Machinery Equipment Co., Ltd. is specializing in the production of pulp and paper series of complete set of equipment, set research and development, production and sales as one of the modern enterprise.

Friends machinery with advanced modern management system, Seiko produced, independent innovation, collected and created a large number of technical backbone and management elites, all products were certified by CE, enterprise products continuously updating, with exquisite craft, advanced papermaking technology, strict quality, excellent performance of renowned at home and outside, and in a few years like a day of sincerity has been widely recognized by customers. Products sold throughout the country, exported to Southeast Asia, the Middle East, Russia, Mongolia. Jordan. Indonesia, Bangladesh and other regions.

The company has first-class sales and technical service team, according to customer needs to provide project design, process design and technical training, etc.. A pre-sale, sale, the after-sales tracking service, fully eliminate the worries of the majority of customers.
