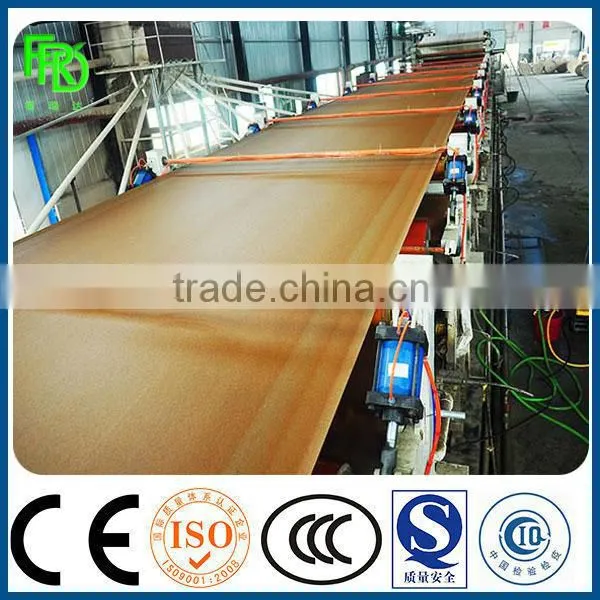

Fluting Paper Making Machine

2800mm 30TPD Kraft paper machine

technical data:

1. Material: waste paper

2. Paper making style:  Kraft paper ,corrugated paper

3. Weight of paper: 100-250g

4. Net paper width: 3200mm

5. width of cylinder mould: 3750mm

6. rail gauge: 4300mm

ing speed: 80-150m per min

8.capacity : 30-35T per day

9. drive way: Alternating current frequency conversion ,section drive

the main structure:

1.cylinder section: 1500×3750mm cylinder mould 2 pcs, 500×3750mm couch roll 3pcs(including round roller 1pcs);rubber hardness shore 38°C±2

2.compression section: 800×3750mm natural marble roller 1 pcs, 750×3750mm rubber roll 1pcs,rubber hardness shore 90°C±2,pneumatic pressure device.

3.dryer section: 2500×3750mm alloy dryer 2pcs, 750×3750mm roller 1pcs, rubber hardness shore 90°C±2, pneumatic pressure device;2nd dryer section500×3750mm opposite pressurized roll 1 pcs, rubber hardness shore 90°C±2,2nd dryer section route mesh device.

4.drive and controlling section: 650 speed reduction machine 1 set,500 speed reduction machine 2set,adopt alternating current frequency conversion.

Qinyang City Friends Machinery Equipment Co.,Ltd located in Qinyang City, Henan province, China, is one of leading paper machine manufacture,which specializes in pulp making machine, paper making machine and paper processing machine manufacturing.

Our company has perfect service system. We have engineer team with rich practice experience, who can supply professional service during the whole deal, including technbology consultation, design factory, project evaluation, detailed design of factory, installation and testing the whole production line, training engineers and workers.
