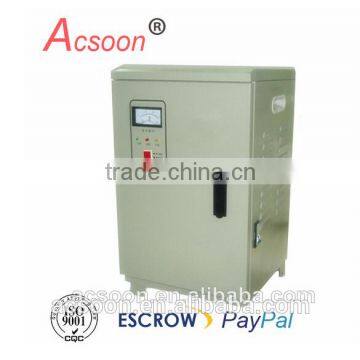

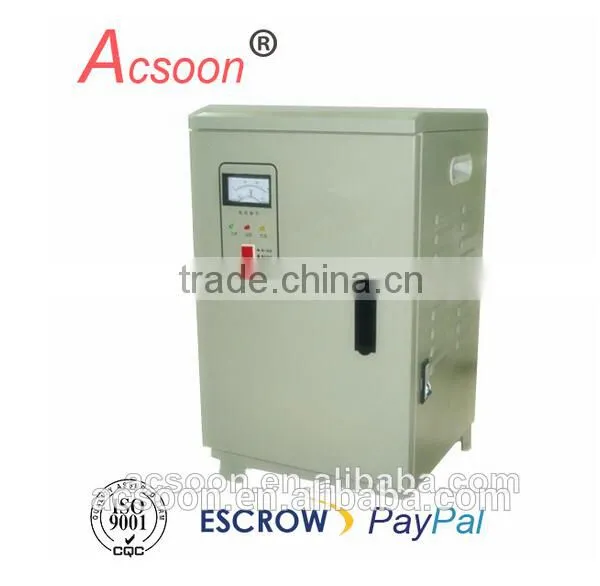

90KVA SVC ac voltage stabilizer regulator

Specifications

voltage regulator stabilizer
1.Pure sine wave,Low THD<2%
2.Overload capacity,ISO9001
3.IGBT/SPWM circuit design
4.Double iso

   AF50-90KVA Three-phase four-wire Input,ac voltage stabilizer regulator

Why AF50 power source

The electric power we used everyday. Most of them are from power plant generally. It is not stable on peak time powering are over supply the power station has to drop the voltage to ensure power supply normally. so this leads to the entire power grid is under voltage and viceversal.when the power  factor of   the  grid is  too low. the power station will add or remove the capacitor in grid to adjust the power factor. In this case. it’ll cause surge voltage in the grid

Report from bell laboratory

Report from bell in american45.3%damage of precision electronic equipment mostly cause by surge voltage 9.4% cause by thunder striking 87% error code during operating cause byover low up tage 9% error code cause by surge voltage.



IBM did research and show.usually a computer average monthly encountered trouble of power supply about 120 times every single month.result in keyboard locked.hardware pletely loos of data or motherboard burning



AF50 series are supposed to prevent the sensitive electronics from damage when they are supplied    under unstable grid power .such as flicker .power drop estranged design and reliable performance make them the smart choice for utilities and /or industrial environmentswhere power transients and surges are a concern clean low -distortion sine wave outputs make them ideal powering sensitive electronics such as microprocessor-based instrument and PLC‘s



Because AF50 series provide stable voltage and frequency

.output  pure  sine  wave and    overcome   the disadvantage of UPS that are not allowed to have the inductive load like generator motor are widely used in manufacturing .technology researching .military system aerospace testing ETC

 Features:

1: the pure sine wave output .low output THD

2:1GBT/pact size lower noise high reliability

3: double isolation of the input and output unit .safe and reliable

4: Protection:overcurrent.overvoltage .overheat.overload protection and automatic warning devices

voltage stabilizer regulator

  1.OEM/ODM Service;

  2.Excellent sales Service;

  3.Product guarantee Service;

  4.Escrow payment is available;



APPLICATION:

Electrochemistry: electroplate, corrosion, energize, be available for electronic aluminum foil, Chlor-Alkali,Cabon,SiC production;

Industrial electroplate,high precision electrolytic copper foil, low ripple wave durionise;

Industrial metal and Aluminum surface electrophoretic coating;

Precision measurement, Medical electronic equipment;

Imported electronic product and electricity equipment power supply;

Exported electrical product and electric equipment product testing;

CNC machine, Light and Textile industry automatic production lines;

Providing high-performance uninterruptible power supply system for electricity generation factory.



AF50 Series High precision voltage and frequency stabilizer power source,Voltage and frequency Regulator
Model		AF50-310090
Capacity		90KVA
Rated Power(W)		72KW
Circuit		IGBT/SPWM
Input	Voltage	265V-495V
	Phase	Three-phase four-wire
	Frequency	20-100Hz
	Power Factor	>85%
Output	Voltage	220+-1%
	Phase	Single phase
	Frequency	50Hz/60Hz+-0.01%
	Rated Current	409.09A
	Overload Capacity	150%,20S;250%,10S
Voltage Regulation		<1%(at full load)
Frequency Regulation		<+-0.01%
Distortion		<3%
Volatge Resolution		0.1V
Current Resolution		0.01A
Frequency Resolution		0.1Hz
Power Resolution		0.1W
Effiency		>85%
Response		<2ms
Communication Interface		RS232/485
LED Display		Voltage,current,power factor,active power,reactive power and display measure(customized)
Protection Function		overcurrent,short circuit,overheat,overload,phase loss,self diagnosis protection and warning device
IP Grade		IP20 or customized
Insulation Reactance		2500Vsine wave 1minute(power frequency)Flicker free
		500VDC/200MΩ
Withstand Voltage		1800VDC/5mA/1minute
Insulation Resistance		2MΩ
Colling Method		Fan cooling
Working Environment	Noise	<65dB(within 1 meter)
	Working Temperature	-10 Cto 50degrees Celsius
	Humidity(RH)	0-90%(non-condensation)
	Altitude	<1500M
Dimensions(W*D*H)		600*1320*1370 mm
Remark:Above sheet just normal model,custmized is acceptable.

  AF50-90KVA Three-phase four-wire Input,ac voltage stabilizer regulator



Package:Protective case(wooden case or carton for sea or airshipment and express delivery)

Lead time:It will take 15-20 working days once transfer;



voltage regulator stabilizer

Xi’an Jerrystar Instrument Co.,Ltd is a professional corporate enterprise which is specialized in developing & designing, manufacturing, trading and after service for electrical power supply. We dedicated in research and development the supreme quality and for the goal of “first grade power source and create ACSOON brand to the entire world.With the spirit of integrity, equitable, professional, innovations fight to the greatest benefit to customers as our management aim. Depend on our continuously development and improvement, we can provide the military industry products and quality service and energy conversation and find the most suitable solution by customized.

ACSOON adhering to concept of sophisticated technique in aerospace military power source designing and manufacturing ACSOON series power unit. The products are widely used in Variable-frequency Power Source, Aviation Ground Electrical Power Source, Aviation DC Power Source,400HZ Aviation Static Variable Power Source, High Precision Voltage and frequency Stabilized Power Source, AC Voltage and frequency Stabilized Power Source, AC Pure Sine Wave Regulated Power Source, Inductive voltage Stabilizer, Aviation-Military dedicated Power Source, Shore(Marine) Power Source, PLC’s AC Constant Flow Source, AC Uninterrupted Power Source and etc fields.



With the feedback from marketing and different requirement, ACSOON Power Source devote to research and development to create new product continuously and have various kind of specifications for choosing. Extensively used in:

GOVERNMENT ORGANIZATION,MESSAGE, HOME APPLIANCE,AVIATION,AEROSPACE,SHIPPING BUILDING(MARINE),RAILWAY,TRANSPORTATION,COMMUNICATION,BROADCASTING AND TV,MEDICAL TREATMENT,FINANCIAL,QUALITY INSPECTION,INDUSTRY,LABORATY and etc civil and military each field to provide the security and reliability, stability and high quality power source with clients home and abroad. And our factory is approve by ISO9001 and obtained all series product design patents.



We are building a new factory covered up to 10,000 square meters. And plan to purchasing improvement assembling lines and experimental inspection machines. Accompanied by business expansion, our products are promoted very well to Europe and America,Japan,Austrilia,Korea,Southeast Asia,Middle -East and North Africa etc more than 40 countries and areas. Depend on our supreme quality and excellent after sales service to obtain the good reputation from end users.



ACSOON Power Source, Military quality, Excellent performance,your most reliable power source!

voltage regulator stabilizer

We are committed to providing the best technical and commercial solution for your power source needs.

Pls feel free to contact with us if you have any questions.Kathy will try the best to provide an excellent service with you forever~
