Q35Y Series hole punch

Specifications

Q35Y Hydraulic ironworker,Hydraulic combined punching and shearing machine
Cutting,punching, notching, bending
CE&ISO

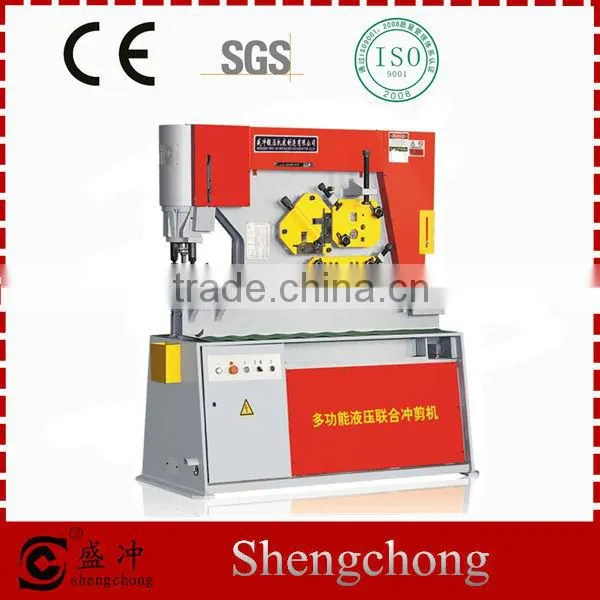

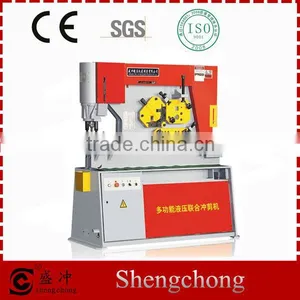

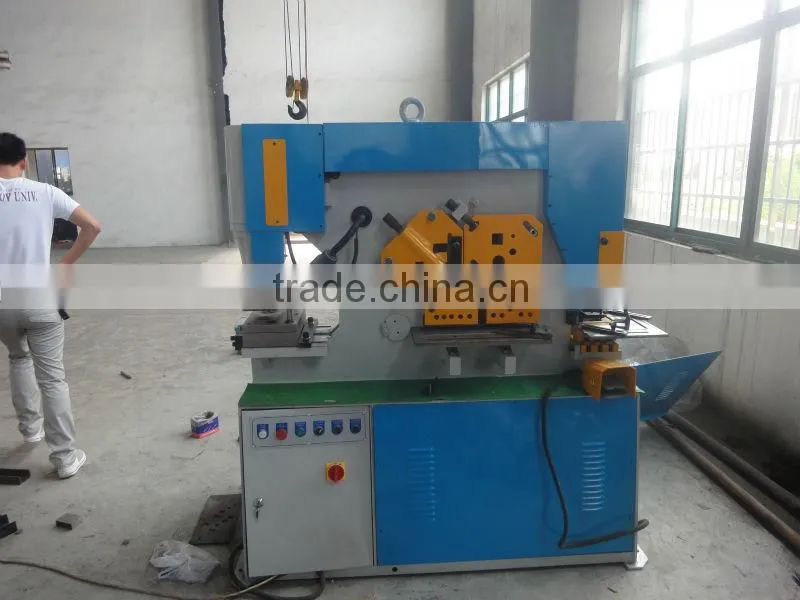

Q35Y Hydraulic ironworker Hydraulic combined punching and shearing machine











Introduction to the structure and properties:

Q35Y Series hydraulic combined punching&shearing machine can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on. Accurl Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come. This machine is typically in stock for quick deliveries.



1.Punching

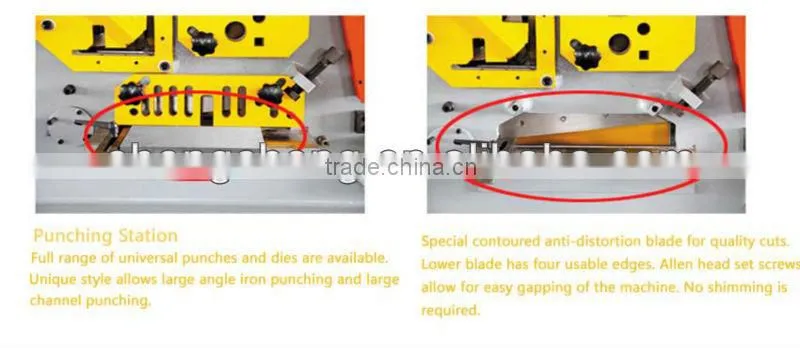

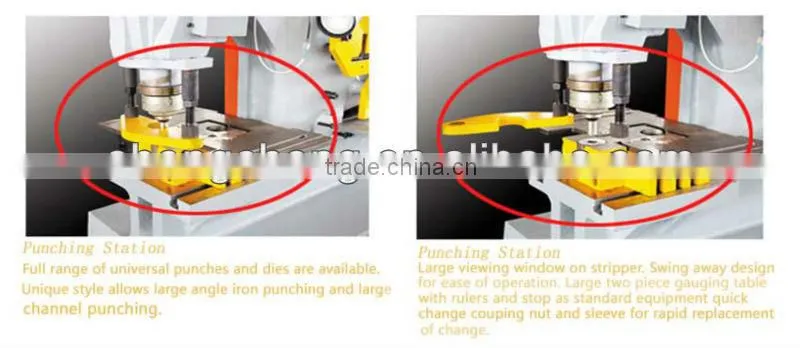

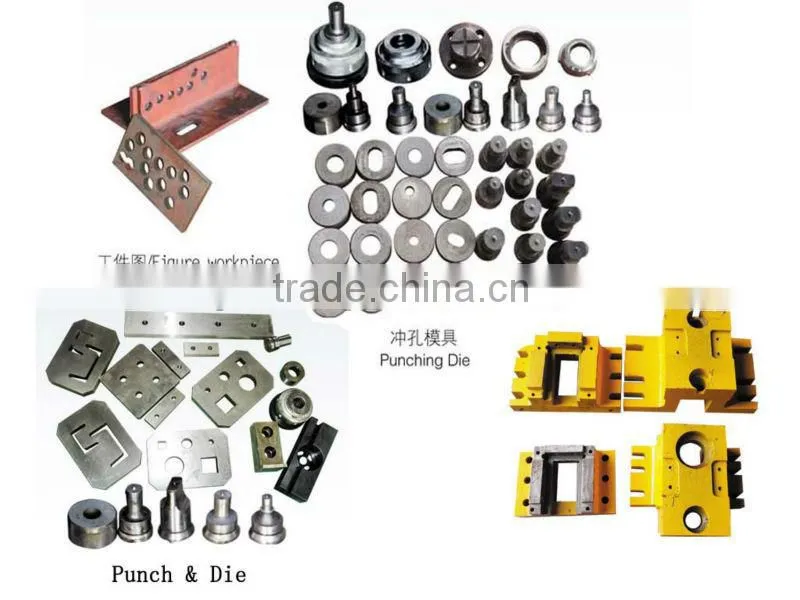

Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel punching.Large viewing window on stripper swing away design for ease of operation.large two piece gauging table with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.



2.Shearing

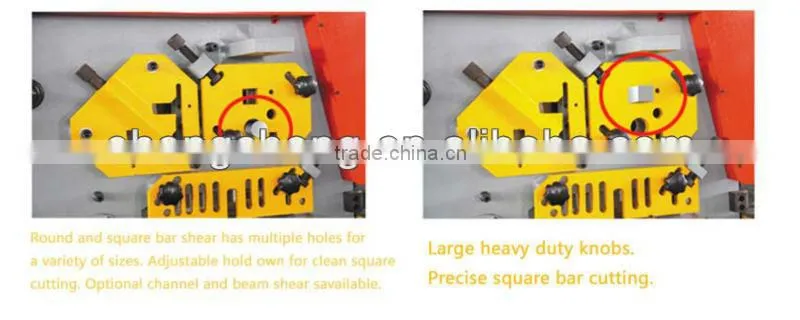

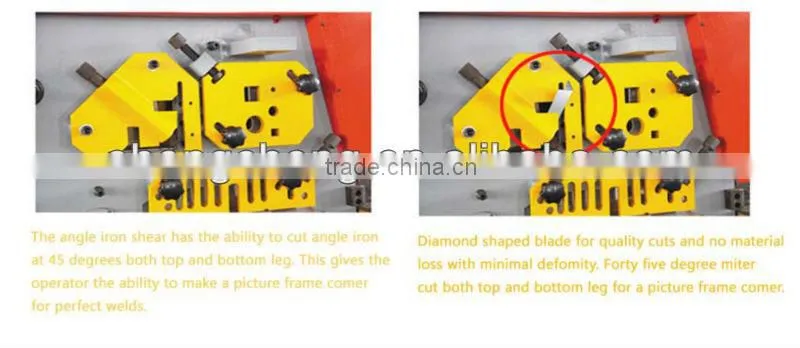

Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar,channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.



3.Notching

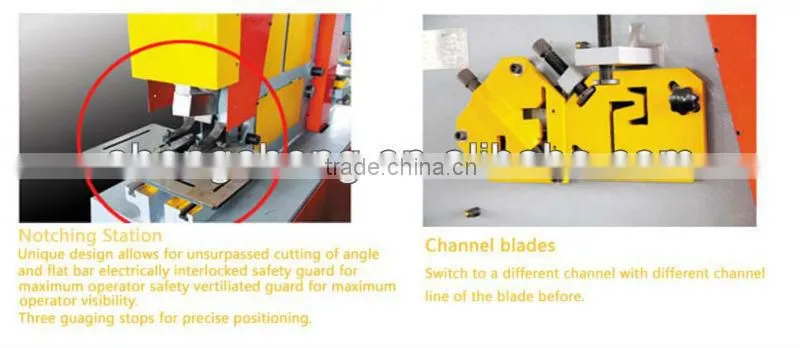

Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.The notching section of this hydraulic ironworker is perfect for notching out metal plate, angle iron and much more. The notching station also has an oversized table with material stops. This section of the machine can also be outfitted with the optional vee notcher.



4.Bending

Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safty, function, capability and maintenance

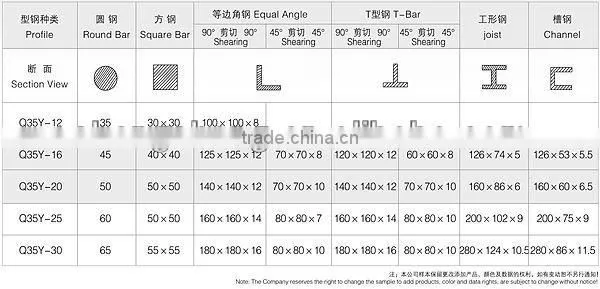

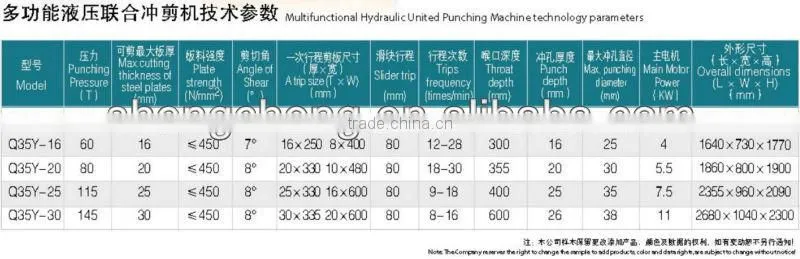

Technical parameters









Detailed Picture

















Commercial terms



Trading terms: FOB ,CIF,or as requested

Delivery time: 15-30 working days

Payment terms:T/T,L/C

Shipping way:by sea or truck

Shipping port:Shanghai port

MOQ:1 set

Packaging:wooden case or as requested

Shipping:LCL,FCL
