Heat Aluminum Foil Fiberglass Insulation Foil For Philippines:
Application:
(foil-scrim-kraft facing)
1. mainly used as facing for glass wool insulation, rockwool ,mineral wool and so on.
2.under roof decking, under attic rafters, over existing attic thermal insulation, in floors, walls and crawl spaces.
3. in industrial and commercial buildings to block radiant heat coming into house through the roof during the summer and retain indoor heat generated during in winter.
4.Reinforced with Tri-way fiberglass scrim also used as a moisture vapor barrier in air conditioning ductworks and cold rooms
Features:
1) With high tensile strength and bursting strength
2) Used as jacket facing for glass wool, rock wool, PU foam and other insulation to
protect them against vapor moisture, in order to work more effectively
Specifications:
1) FSK40A
a) Foil: 7μm
b) 2-way scrim: 12.5 x 12.5mm space
c) Polyethylene
d) Kraft: 50gsm, natural
2) FSK716B:
a) Foil: 7μm
b) 2-way scrim: 12.5 x 12.5mm space
c) Polyethylene
d) Kraft: 60gsm, natural
3) Roll width: 1.0, 1.2, 1.25, 1.30m
4) Roll length: 60, 120, 300, 500, 1600, 2750m
Outer packing:
60m roll: plastic shrinking sleeve
120, 300, 500m rolls: kraft cardboard
1600, 2750m jumbo rolls: corrugated board + ply-wooden pallet
Technical parameters:
Physucal Properties | Test Method | Values (English) | Values(Metric) |
Basis Weight | Scale | 25.5lbs/1000 ft2 | 125g/m2 |
Tensile Strength | GB/T12914-1991 | 22.5lbs/inch(MD) | 3.79 kn/m(MD) |
13.9lbs/inch(XD) | 2.31 kn/m(XD) | ||
Bursting Strength | GB/T454-2002 | 36 lbs/psi | 248 kpa |
Water-resitant | 23 °C 24h | No phenomenon of layered | No phenomenon of layered |
Low-temperature resistant | -40 °C 1h | No phenomenon of layered | No phenomenon of layered |
High temperature resistant | 116 °C 4h | No leakage phenomenon | No leakage phenomenon |
Thickness | Micrometer | 0.0058 inch | 150 micron |
IKING Aluminum Foil Fiberglass Insulation Cloth Factory Showcase
Production Lines

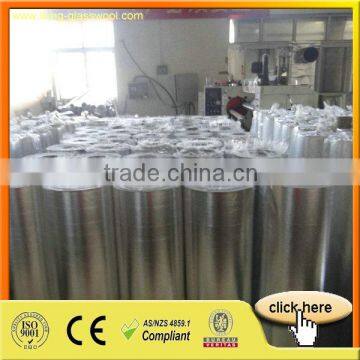

Warehouse Of Aluminum Foil Fiberglass Insulation Cloth
Packing and loading
IKING Laboratory
We exported 400x40''HQ to oversea market 2015 years. Now we are looking for serious agency for IKING aluminum foil in different country. If you are interested in us, please feel free to contact with us.We welcome you visit our factory any time!!!
