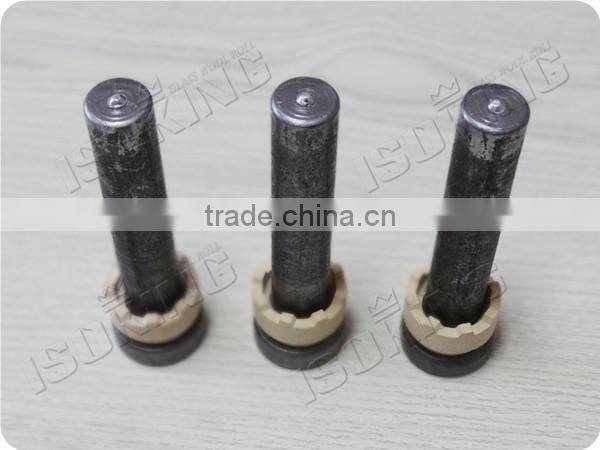

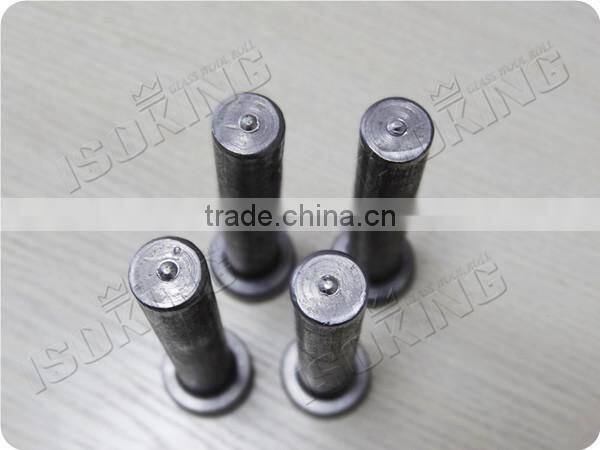

Nelson Stud Connectors For Green Frame Steel Construction

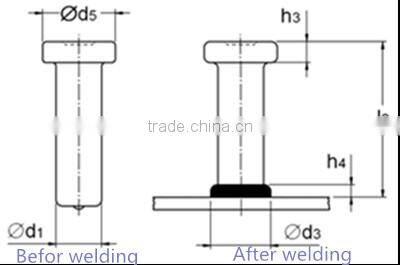

Shear Stud Connector type SD (ISO 13918) Dimensions (in mm) | ||||||
d1-0.4 | 10 | 13 | 16 | 19 | 22 | 25 |
d5±0.3 | 19 | 25 | 32 | 32 | 35 | 41 |
d3±0.3 | 13 | 17 | 21 | 23 | 29 | 31 |
h3±0.5 | 7 | 8 | 8 | 10 | 10 | 12 |
h4 | 2.5 | 3 | 4.5 | 6 | 6 | 7 |
L1±1.5 | 40-105 | 40-160 | 40-200 | 40-250 | 60-250 | 60-250 |
Burn off | 3 | 3 | 4 | 5 | 5 | 6 |
Ferrule | UF10 | UF13 | UF16 | UF19 | UF22 | UF25 |
1.Burn off value shown are for welding to bare steel

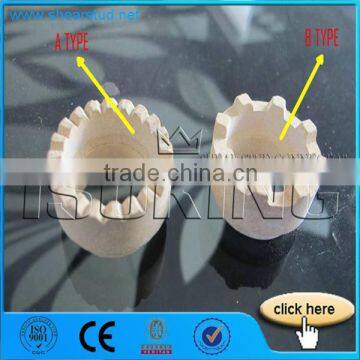

2.There are two kinds of ceramic ferrule, one is through deck type which has 8 teeth, the other
one is common type which has 18 teeth. The price is same for these two types.
3.The UFB type ceramic ferrule are for through deck welding , with 8 teeth !

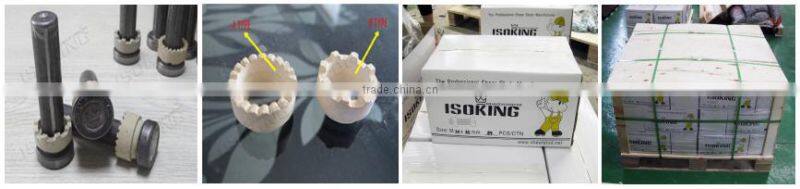

IKING provide appropriate package for shear stud connector , cartons (lined with plastic bags) & plywood pallets are frequently used; we can also provide barrels (lined with plastic bags) & plywood pallets if you have long time stock request, refer to below:
Shear stud connectors are widely used in construction,industrial and automotive circle for holding concreate slab and steel members to resist shear force and increase shear
holding capacity.Thay also used for embedment parts.
We have exported 500X20''GP shear stud connector to oversea market on 2015 years. Now we are looking for serious agency for our own brand ISOKING shear stud in different
countries. If you are interested in us, please feel free to contact with us!
We sincerely welcome you visit our IKING Shear Stud factory at any time!
