High Quality Best Price Lintratek Factory 3G 2100mhz UMTS WCDMA Signal Booster
US$ 1 - 215
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LINTRATEK
Model Number:
KW30F-WCDMA
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGDONG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2100mhz 3g WCDMA Cell Phone Signal Repeater With Yagi AntennaUS$ 1 - 30MOQ: 5 Pieces -
CDMA/GSM/DCS/WCDMA/PCS Booster Signal 850/900/1800/2100/1900mhzNegotiableMOQ: 1 Piece
-
Lcd Display Booster High Power Signal Booster for Cell PhoneNegotiableMOQ: 1 Piece
-
Lintratek 2100mhz Wcdma Mobile Signal Booster for CellphoneUS$ 1 - 65MOQ: 3 Pieces
-
Big Coverage Mobile Phone 3G 2100MHz Signal BoosterNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
LINTRATEK
Model Number
KW30F-WCDMA
Product Description

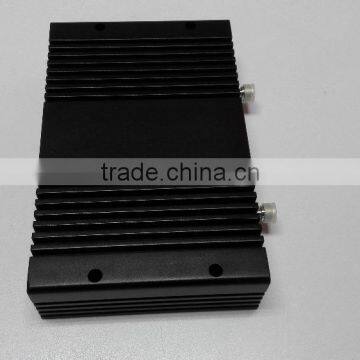

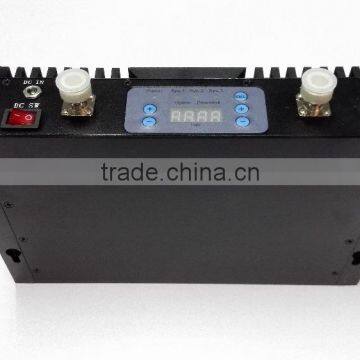

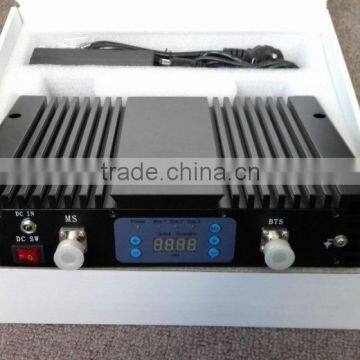

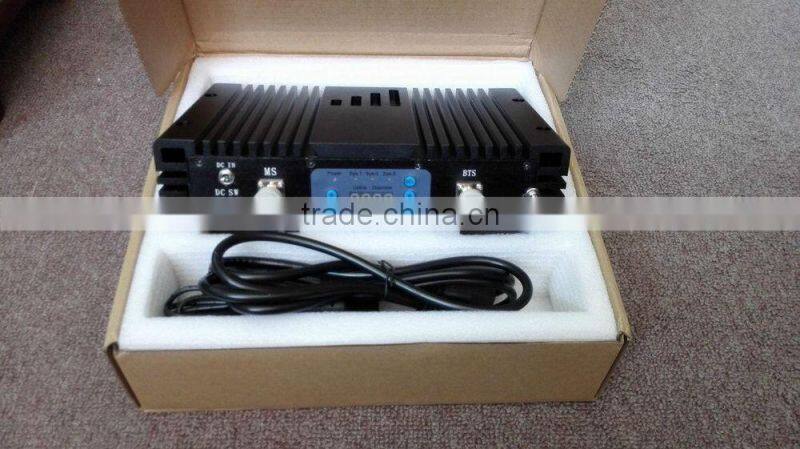

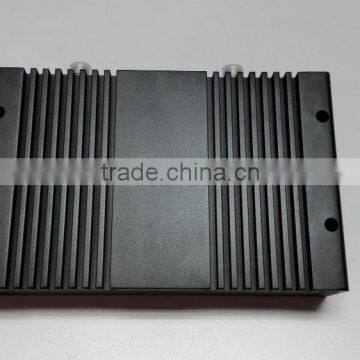

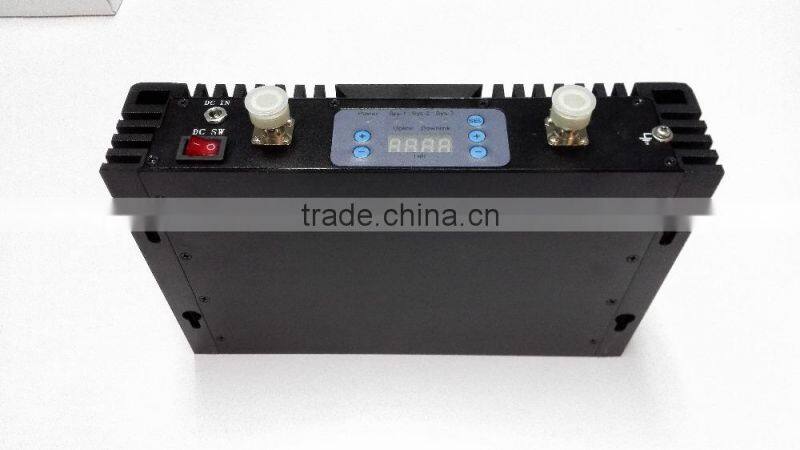

high quality best price Lintratek factory 3G 2100mhz UMTS WCDMA signal booster
Specification Details
| Model No | KW30F-WCDMA | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | CDMA&GSM850 | 824~849 MHz | 869 ~ 894 MHz |
| GSM | 890~915 MHz | 935 ~ 960 MHz | |
| DCS | 1710~1785 MHz | 1805 ~ 1880 MHz | |
| PCS | 1850~1910 MHz | 1930 ~ 1990 MHz | |
| AWS | 1710~1755 MHz | 2110 ~ 2155 MHz | |
| WCDMA | 1920~1980 MHz | 2110 ~ 2170 MHz | |
| Output Power | 27 ±2dBm | 30 ±2dBm | |
| Gain | 75 ±2 dB | 80±2dB | |
| Bandwidth | 25M/25M/75M/60M/45/60M | ||
| Ripple in Band | GSM≤6dB,DCS≤6dB,WCDMA≤5dB,PCS≤6dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 1A | ||
| Power Comsumption | < 5W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Dimensions (D*W*H ) | 270*170*60(mm) | ||
| Packing size (D*W*H ) | 370*290*85(mm) | ||
| Gross weight | < 4Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10°C ~ 55°C | ||

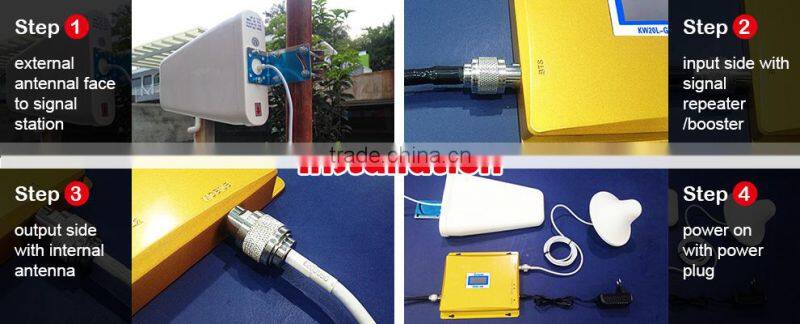

Step 1: Install the outdoor antenna in a suitable place
Step 2: Connect the outdoor antenna to the booster “outdoor” side by cable and connector
Step 3: Connect the indoor antenna to the booster “indoor” side by cable and connector
Step 4: Connect to the power
Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other and must be separated by wall.

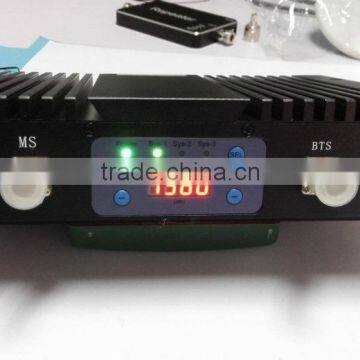

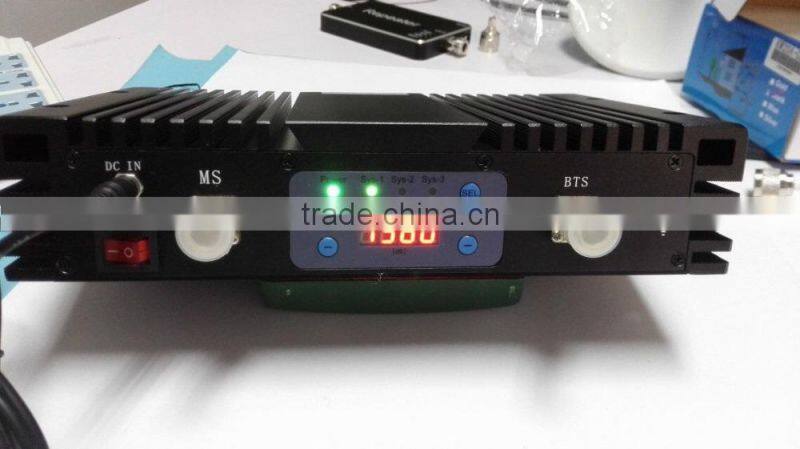

100% Real Shooting
