US$ 1 - 70 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
lintratek
Model Number:
KW17A-CDMA mobile signal booster
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name lintratek
Model Number KW17A-CDMA mobile signal booster
 home cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband booster
home cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband booster
home cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband booster
Product Description

home cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband booster

 home cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband booster



Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody’s life.



Unfortunately, there are still some places where they can find themselves “out of coverage” ,no signal at all... Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:



  • Parking lots, tunnels
  • Big stores, office buildings
  • Cars, boats etc.
  • House in remote areas



A regular cell phone repeater consists of: (full kit)

  • 1 -Outdoor antenna log periodic antenna(or wall mounted, yagi antenna)
  • 2 - Indoor Omni ceiling antenna( panel antenna)
  • 3 – Power adapter
  • 5 - User manual
  • 6 - Cell phone repeater
  • 7- 10 meters outdoor cable and 1 meter indoor cable

home cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband boosterhome cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband boosterhome cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband boosterhome cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband boosterhome cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband booster



                                                             Specification



   Model No

KW17A-CDMA mobile signal booster

Parameter data

Uplink

Downlink

Frequency Range

CDMA800

 824-849MHz

869-894MHz

Output Power

17 ±2dBm

17 ±2dBm

Gain

60 ±2 dB

65±2dB

Bandwidth

60M

Ripple in Band

WCDMA≤5dB

Spurious Emission

9KHz~1GHz

-36 dBm

1GHz~12.75GHz

-30 dBm

VSWR

≤3

MTBF

>50000 hours

Power Supply

AC:100~240V, 50/ 60Hz;DC:5V 1A

Power Consumption

< 5W

Impedance

50 ohm

Mechanical Specification

RF Connector

N-Female N

Dimensions (D*W*H )

140*95*30(mm)

Net weight

< 0.45Kg

Packing size (D*W*H )

250*240*65(mm)

Gross weight

< 0.7Kg

Installation Type

Wall Installation

Environment Conditions

IP40

Humidity

< 90%

Operating Temperature

-10°C ~ 55°C


Packaging & Shipping

home cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband booster

Our Services



How should you install repeater (very easy and simple):

Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).



Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.



Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.



step 4: Mount your indoor antenna with signal repeater

step5:  Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.

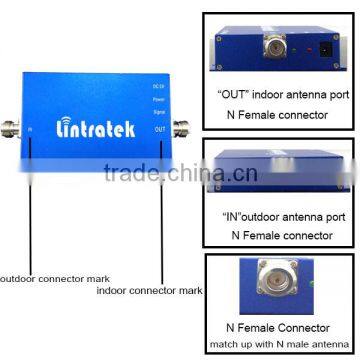

Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.

Indoor and outdoor antenna must be separated by wall.

Company Information

home cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband boosterhome cdma cell phone signal booster gsm mini size repeater mobile signal booster for 800mhz wideband booster


FAQ



After- Sales Service



We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.





Signal problem & installation technique supporting

1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.



2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.



3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.



4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
