Conch PVC window frame profiles cross section

Specifications

upvc window frame
Conch 60 casement UPVC Profiles
competitive in cost





Conch 60 series casement window& Shutter

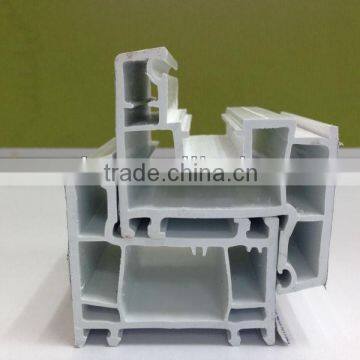

Profiles cross section:

1)      Main profiles visible wall thickness for the frame and sash is 2.5mm ,compliant to technical specification GB/T8814-2004;

2)      Single-layer glass bead(GB34NC) ,double-layer glass bead(GB19NC) ,three-layer glass bead(GB10NC) are available according to the customers requirement .It’s conveniently operable to change different bead style to compliant to special requirement for heat resistance under different whether conditions.

3)      Mullion system is designed to divide the window system as you designed to combinate to the overall architectural styles;

4)      The shutter blade is designed to adjust angles as you like to adjust the room lights ,and enjoy the house life ;

5)      Profiles system is capable of accepting personality design requirement by arc design and multiple opening mode system ;

Properties :

1)    Conch 60 series frame and sash design ,the designed strength value for the welding angle and the actual measured value and the profiles lap joint value when fixing the glass are all fully compliant to the standard .

2)    Conch 60 Series window has good wind pressure resistance performance by testing;

3)    Separate chambers designed for drainage improves the water tightness

Multiple connections to other profiles

1)    Conch 60 series is available to connect with any Conch 88 series system and enrich your choice for the window style ;

2)    Conch 60 series system is your good choice for comfortable housing projects;



Window Model:







Percentage of outturn:



















Node Drawing:











Factory show:







Extrusion Line:







Testing Equipment:
