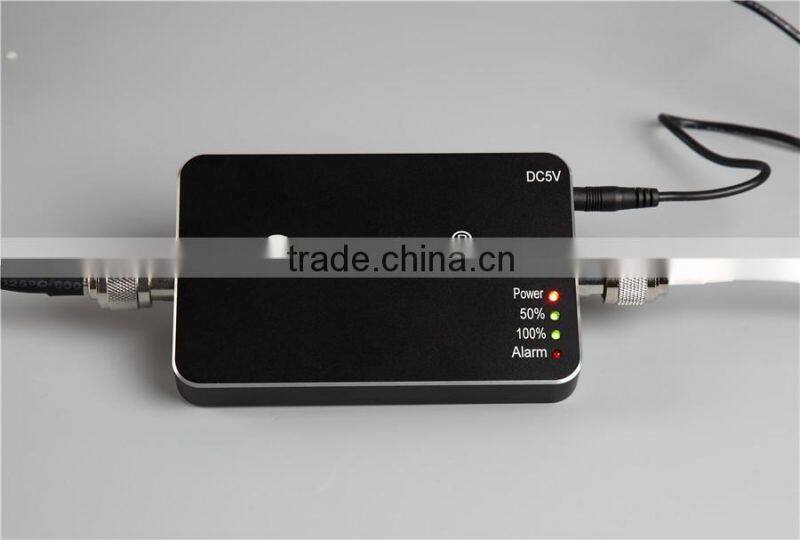

3g Signal Booster, Wcdma 3g Mobile Signal Amplifier for 2100mhz,mobile Signal Amplifier

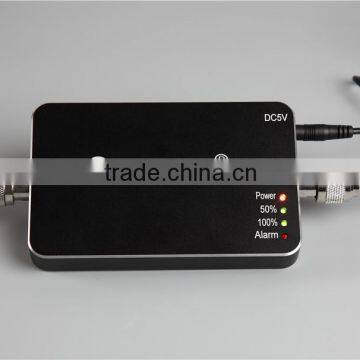

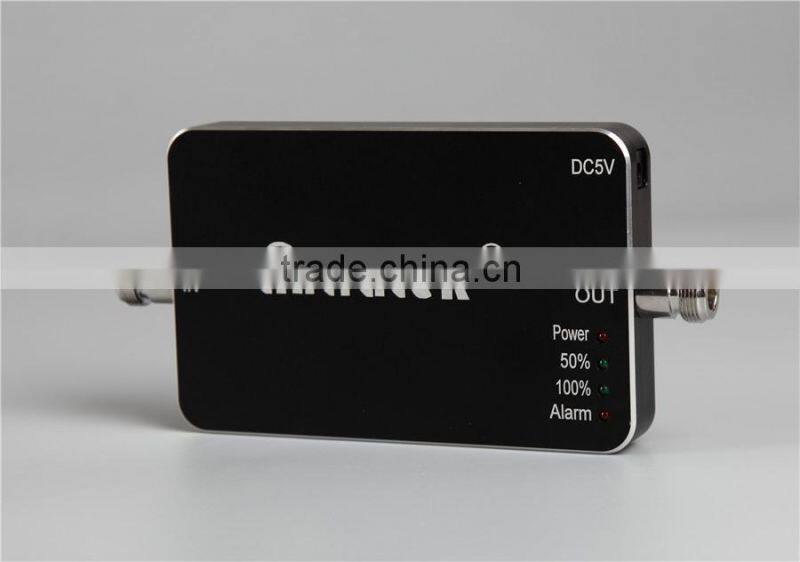

3g Signal Booster, Wcdma 3g Mobile Signal Amplifier for 2100mhz,mobile Signal Amplifier photo-1

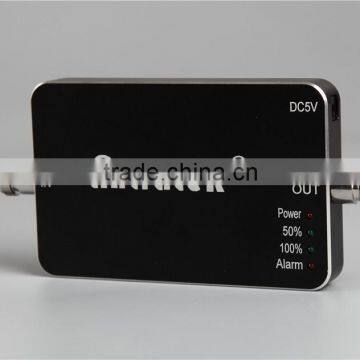

3g Signal Booster, Wcdma 3g Mobile Signal Amplifier for 2100mhz,mobile Signal Amplifier photo-2
3g Signal Booster, Wcdma 3g Mobile Signal Amplifier for 2100mhz,mobile Signal Amplifier photo-3
US$ 1 - 45 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
lintratek repeater
Model Number:
KW20A-WCDMA mobile signal amplifier
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGDONG
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name lintratek repeater
Model Number KW20A-WCDMA mobile signal amplifier
Product Infomation

· Excellent Quality
· Exquisite appearance
· High Technology
· Considerate service
Lintratek come, to save you from the bad signal!!!

Specification
From: Vita Wong Tel/Whatsapp: +8613229223812
Model No
KW20A-WCDMA
Parameter data
Uplink
Downlink
Frequency Range
WCDMA
1920~1980 MHz
2110 ~ 2170 MHz
Output Power
17 ±2dBm
20 ±2dBm
Gain
60 ±2 dB
65±2dB
Bandwidth
25M/25M/75M/60M/45/60M
Ripple in Band
GSM≤5dB,DCS≤6dB,WCDMA≤5dB,PCS≤6dB
Spurious Emission
9KHz~1GHz
≤ -36 dBm
1GHz~12.75GHz
≤ -30 dBm
Intermodulation Products
9KHz~1GHz
≤ -36 dBm
1GHz~12.75GHz
≤ -30 dBm
VSWR
≤3
MTBF
>50000 hours
Power Supply
AC:100~240V, 50/ 60Hz;DC:5V 1A
Power Comsumption
< 3W
50 ohm
Mechanical Specification
RF Connector
N-Female
Dimensions (D*W*H )
145*100*20(mm)
Cooling
Heatsink Convection cooling
Net weight
< 0.7Kg
Packing size (D*W*H )
240*140*75(mm)
Gross weight
< 1Kg
Installation Type
Wall Installation
Environment Conditions
IP40
Humidity
< 90%
Operating Temperature
-10℃ ~ 55℃

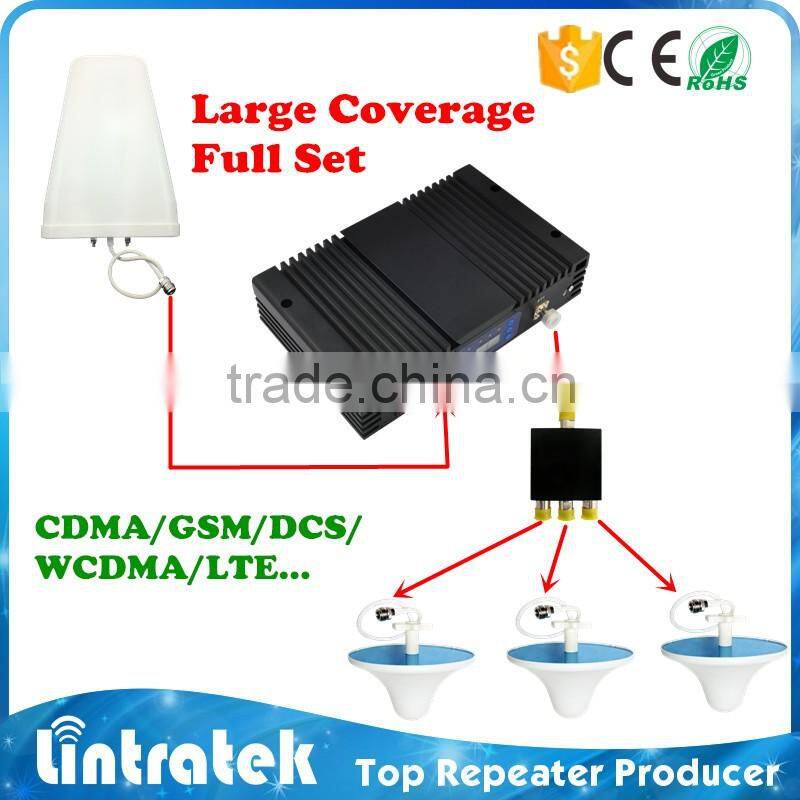

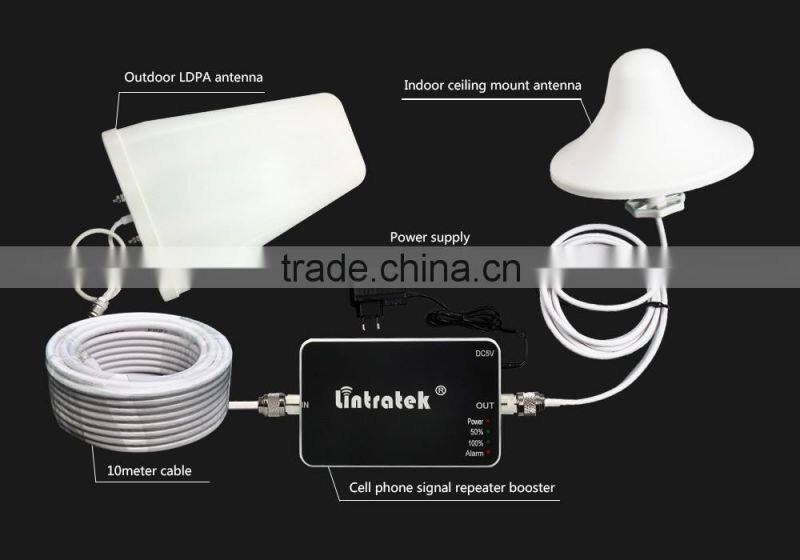

FULL SET

· 1 - Outdoor antenna like YAGI antenna or panel antenna
· 2 - Indoor Omni ceiling antenna
· 3 – Power adapter
· 4 - User manual

· 5 - Cell phone repeater
· 6 - 10 meters outdoor cable and 2 meter indoor cable

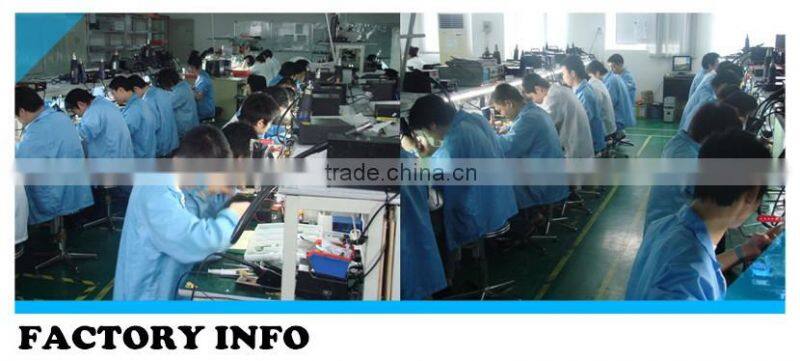

Company Infomation
Certificate

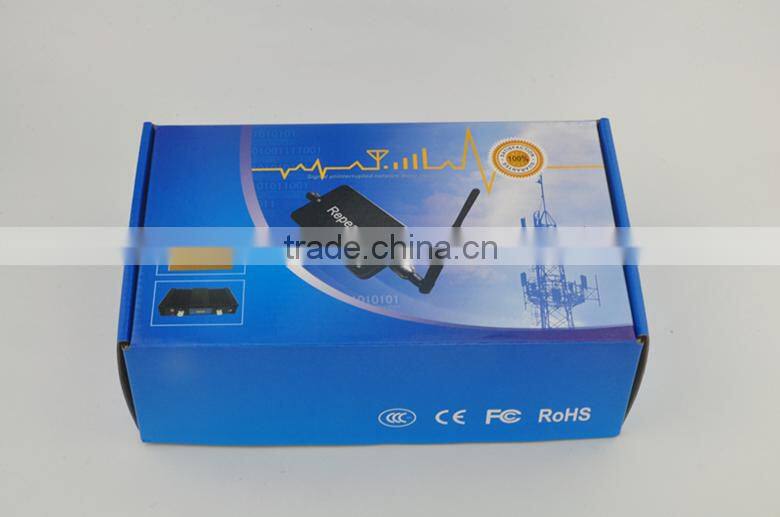

Packing&Delievery
FAQ

After - Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.

Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.

Contact Person
Related Products

KW25F-WCDMA

25dBm/75dB high gain signal booster for with ALC function

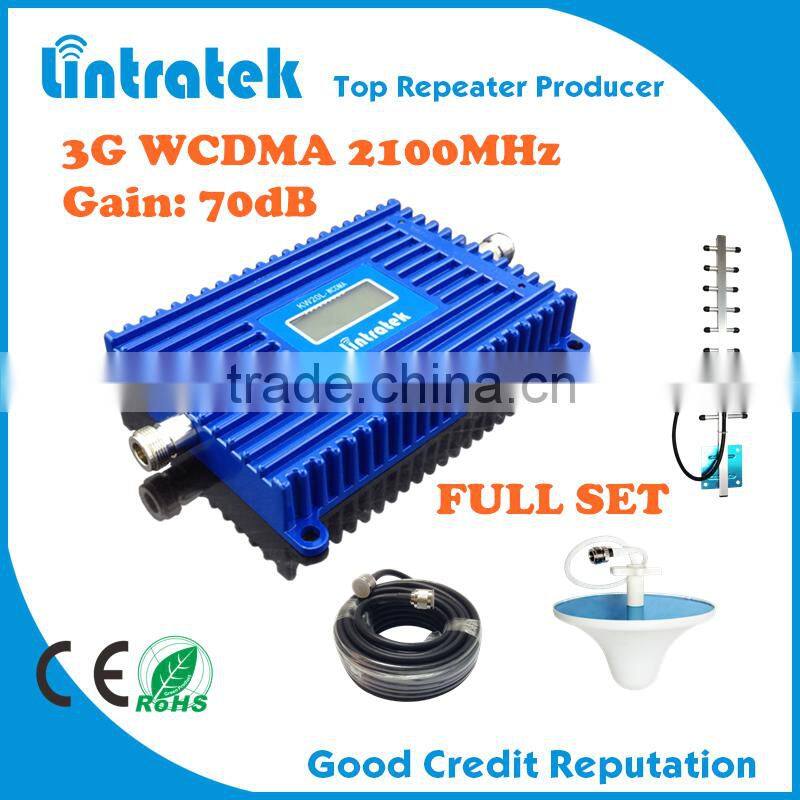

KW20L-WCDMA
