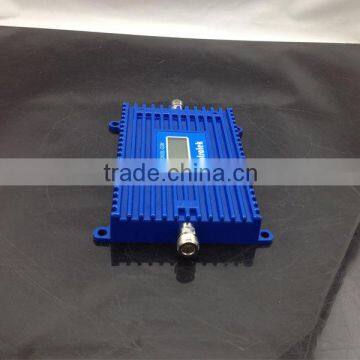

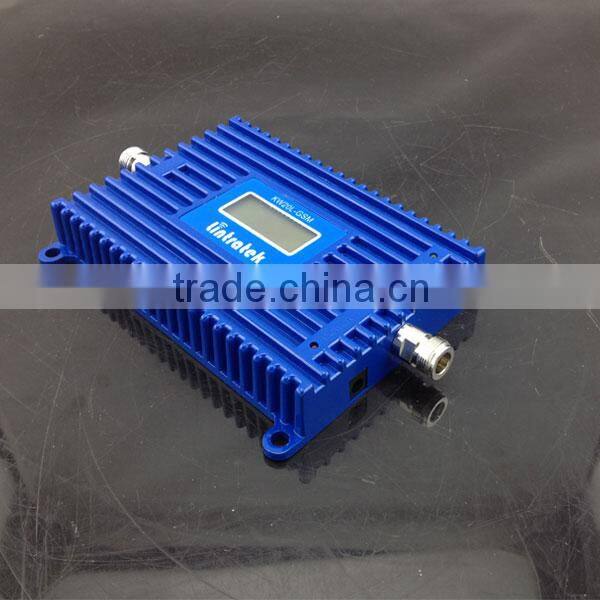

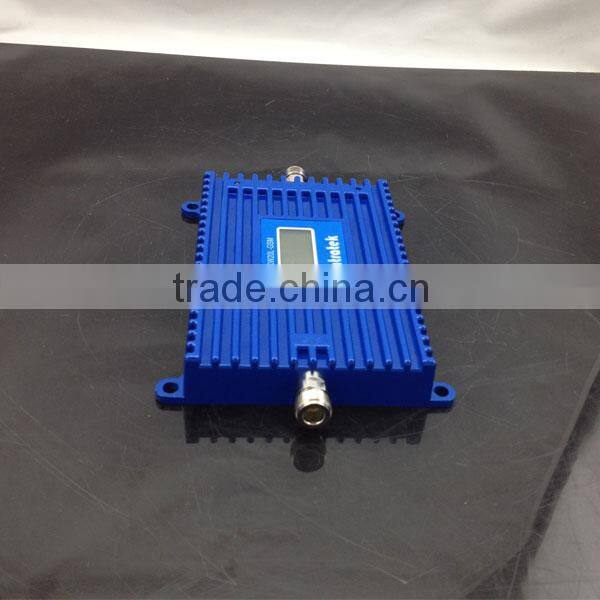

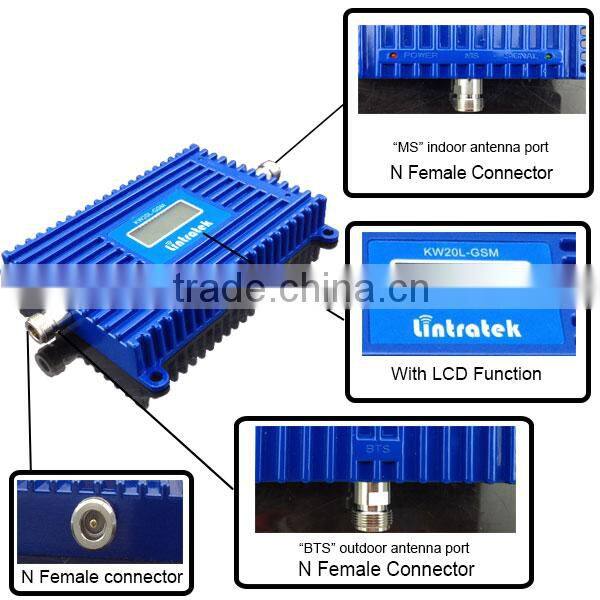

With LCD Screen PCS1800 singal booster 3G signalamplifier

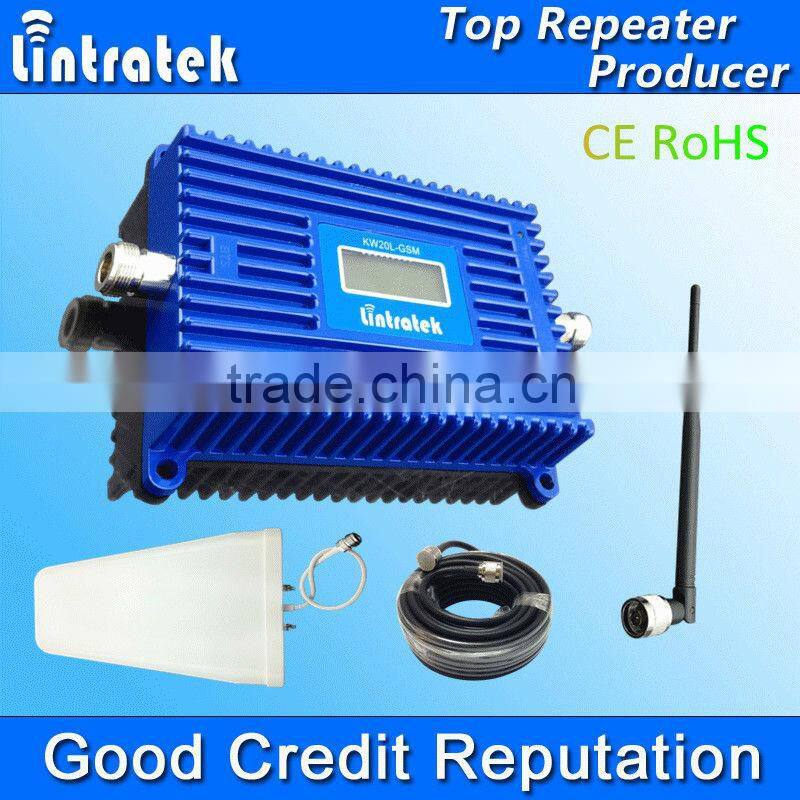

A regular cell phone repeater consists of: (full kit)
- 1 -Outdoor antenna log periodic antenna(or wall mounted antenna, yagi antenna)
- 2 - Indoor Omni ceiling antenna( panel antenna)
- 3 – Power adapter
- 5 - User manual
- 6 - Cell phone repeater
- 7. 10 meters outdoor cables
Specification should care about :
Model No | KW20L-PCS | ||
Parameter data | Uplink | Downlink | |
Frequency Range | UL:1850-1910mhz | DL:1930-1990mhz | |
Output Power | 20 ±2dBm | 20 ±2dBm | |
Gain | 70 dB | 70 dB | |
Bandwidth | Wide Band | ||
Automatic Gain Control | >20dB | ||
Ripple in Band | ≤5dB | ||
Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
1GHz~12.75GHz | ≤ -30 dBm | ||
Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
1GHz~12.75GHz | ≤ -30 dBm | ||
Noise Figure @ max. gain | ≤ 6 dB | ||
VSWR | ≤3 | ||
MTBF | >50000 hours | ||
Power Supply | AC:90~265V, 50/ 60Hz;DC:12V 3A | ||
Power Consumption | < 20W | ||
Impedance | 50 ohm | ||
Mechanical Specification | |||
RF Connector | N-Female | ||
Cooling | Heatsink Convection cooling | ||
Dimensions (D x W xH ) | 200*110*25 mm | ||
Weight | 1Kg | ||
Installation Type | Wall Installation | ||
Environment Conditions | IP40 | ||
Humidity | < 90% | ||
Operating Temperature | -10°C ~ 55°C | ||
