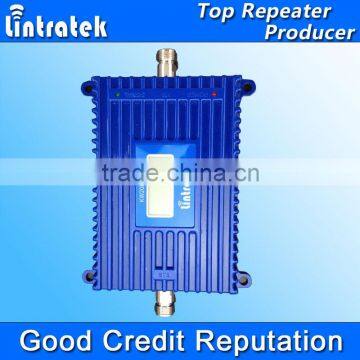

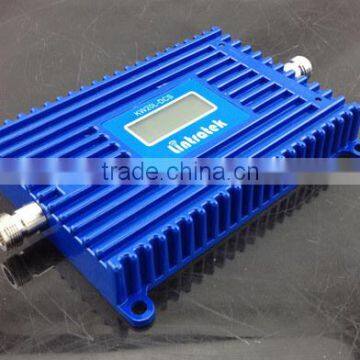

Lcd screen mobile signal repeater,pcs signal repeater with ALC

FOB Price

Negotiable / Piece

5 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Foshan Guangdong
Payment Terms:T/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin:

Guangdong, China

Brand Name:

lintratek

Model Number:

KW20L-PCS

Product Description

Lcd screen mobile signal repeater,pcs signal repeater with ALC

1.LCD display,easy to know the signal good or bad

2.Certificate:CE,ROHS,ISO

3.Quality warranty:2 years

Why do you need to buy repeater/booster?

Specification should care about :

Parameter data		Uplink	Downlink
Frequency Range	GSM	1710~1910MHz	1930~1990MHz
Output Power		17 ±2dBm	20 ±2dBm
Gain		65 dB	70 dB
Bandwidth		25M
Ripple in Band		GSM≤6dB
Spurious Emission	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Noise Figure @ max. gain		≤ 6 dB
VSWR		≤3
MTBF		>50000 hours
Power Supply		AC:100~240V, 50/ 60Hz;DC:5V 1A
Power Comsumption		< 5W
Impedance		50 ohm
Mechanical Specification
RF Connector		N-Female N
Cooling		Heatsink Convection cooling
Dimensions (D x W xH )		13510526(mm)
Weight		< 0.9Kg
Installation Type		Wall Installation
Environment Conditions		IP40
Humidity		< 90%
Operating Temperature		-10°C ~ 55°C

How should you install repeater (very easy and simple):

Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).

Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.

Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.

step 4: Mount your indoor antenna with signal repeater

step5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.

Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.

Indoor and outdoor antenna must be separated by wall.
