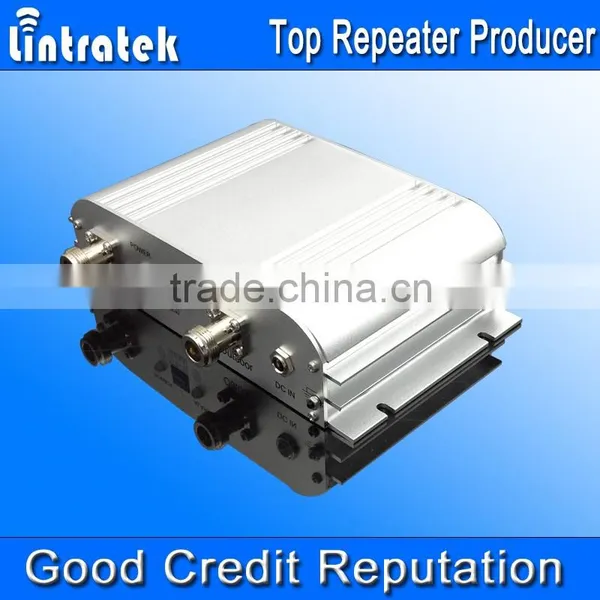

2100 mhz signal band selective cellular signal amplifier

Specifications

2100 mhz signal band selective cellular signal amplifier
1. Cover 100-2000sqm
2.Compact size, low cosumption;
3.great coverag













Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody’s life.

Unfortunately, there are still some places where they can find themselves “out of coverage” ,no signal at all... Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:

• Parking lots, tunnels
• Big stores, office buildings
• Cars, boats etc.
• House in remote areas

How can repeater bring your mobile phone better signal?





•The outside antenna catches low signal from operator servicer’s base station and delivers it to cell phone repeater through the connection cable (coax).

•After the signal is accepted by the mobile repeater, this device amplifies it.

•Then this amplified signal goes through the connection cable (coax) to the inside antenna.

•And after that, the amplified signal transmits to your cell phone.

• Finally, your cell phone will get good signal, never on and off



A regular cell phone repeater consists of: (full kit)

• 1 -Outdoor antenna log periodic antenna(or wall mounted, yagi antenna)
• 2 - Indoor Omni ceiling antenna( panel antenna)
• 3 – Power adapter
• 5 - User manual
• 6 - Cell phone repeater
• 7- 10 meters outdoor cable and 1 meter indoor cable



Specification should care about :



Model No		KS10E-WCDMA
Parameter data		Uplink	Downlink
Frequency Range	WCDMA	1920~1980	2110~2190
Output Power		10dBm	17dBm
Gain		65±2 dB	65±2dB
Bandwidth		60M
Ripple in Band		≤5dB
Spurious Emission	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
VSWR		≤3
MTBF		>50000 hours
Power Supply		AC:100~240V, 50/ 60Hz;DC:5V 1A
Power Consumption		< 5W
Impedance		50 ohm
Mechanical Specification
RF Connector		N-Female N
Dimensions (D*W*H )		176*144*25(mm)
Net weight		< 0.45Kg
Packing size (D*W*H )		255*255*85(mm)
Gross weight		< 0.7Kg
Installation Type		Wall Installation
Environment Conditions		IP40
Humidity		< 90%
Operating Temperature		-10°C ~ 55°C





How should you install repeater (very easy and simple):

Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).



Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.



Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.



step 4: Mount your indoor antenna with signal repeater

step5:  Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.



Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.

Indoor and outdoor antenna must be separated by wall.















After- Sales Service



We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.





Signal problem & installation technique supporting

1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.



2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.



3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.



4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
