Home > Products > RTK > chc x91 gps rtk price

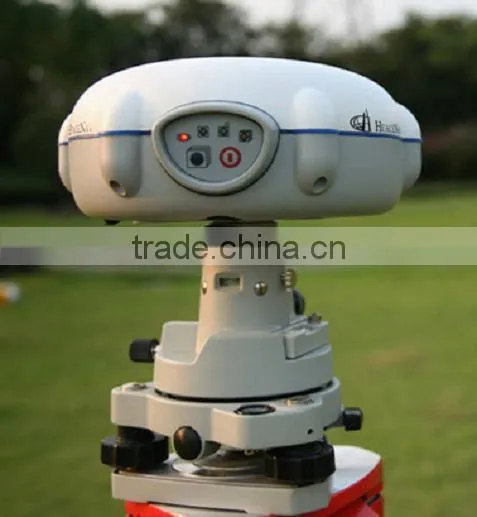

chc x91 gps rtk price

FOB Price

USD $10,000 - $11,100 / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

China

Brand Name:

CHC

Model Number:

X91+

Product Description

GNSS Characteristics
220 channels	GPS: L1C/A,L1C,L2C, L2E, L5
	GLONASS: L1C/A, L1P, L2C/A, L2P, L3
	SBAS: WAAS, EGNOS, MSAS

	Galileo: E1, E5A, E5B (test)
	Beidou: B1, B2(optional)

Advanced multipath mitigation

Low noise carrier phase measurement

Performance Specifications (1)
Real Time Kinematics (RTK)	Horizontal: 8mm+1ppm
	Vertical: 15mm+1ppm RMS
	Initialization time: typically<10s
	Initialization reliability: typically >99.9%
Post Processing Static	Horizontal: 3mm+0.5ppm RMS
	Vertical: 5mm+0.5ppm RMS

	Baseline Length: ≤300km
With SBAS	<1 m RMS

Communications
1 RS232 serial port
1 high-speed USB
Integrated GSM/GPRS modem
Integrated Bluetooth ® class 2
CHC Radio modem internal Rx	430-450 / 450-470 Mhz
Optional radio modem (2)	Internal Rx/Tx:403-473 Mhz
	External Tx DL5: 1W-20W adjustable

Protocols	RTCM2.1, RTCM2.3, RTCM3.0, CMR, CMR+ input and output
	NMEA0183 outputs

	RINEX and HCN outputs for GNSS raw data
Data Storage	4 GB internal memory
	GPS device mounts as a USB external hard drive

Physical
Size (H×D)	85 ×180 mm (3.3 ×7.1 in)
Weight	1.35Kg with battery (48 oz)
Working Temperature	-40 °C − +65°C (-40 °F − 149°F)
Storage Temperature	-40 °C − +75°C (-40 °F − 167°F)
Humidity	100% condensation
Dustproof	IP67
Waterproof	Protected from temporary immersion to depth of 1 meter floats.
Shock	Survives a 2−meter drop on to concrete

Electrical
Typical power consumption	2.6 W
Battery capacity	2200 mAh
Operating times on internal battery	Up to 6 hours typical
External power input	9-18 VDC

Software (optional)
CHC's Landstar field data collection software
Carlson's SurvCE field data collection software

X91+ GNSS - RTK \| 220-channel
Part Number	Description	N°	Qty	Discount	Total net
X91+ GNSS RECEIVER \| Internal CHC Rx: 430-450 MHz
0505 010 001	X91+ Kit w/ Internal CHC Rx: 430-450 MHz	1
1191 806 736	X91+ GNSS Receiver	1
0402 000 027	UHF Whip Antenna	1
0406 000 010	Transport Hard Case	1
0403 000 038	GPS to PC Data Cable	1
X91+ GNSS RECEIVER \| Internal CHC Rx: 450-470 MHz
0505 010 002	X91+ Kit w/ Internal CHC Rx: 450-470 MHz	1
1191 806 726	X91+ GNSS Receiver	1
0402 000 006	UHF Whip Antenna	1
0406 000 010	Transport Hard Case	1
0403 000 038	GPS to PC Data Cable	1
X91+ GNSS RECEIVER \| Internal Satel Tx/Rx: 410-470 MHz
0505 010 003	X91+ Kit w/ Internal Satel Tx/Rx: 410-470 MHz	1
1191 806 826	X91+ GNSS Receiver	1
0406 000 010	Transport Hard Case	1
0403 000 038	GPS to PC Data Cable	1
0101 060 019	Internal Satel Tx/Rx datalink	1
0404 000 021	Extension pole (40cm)	1
0402 000 006	UHF Whip Antenna	1
1905 210 138	External Power Cable	1
X SERIES BASE STATION KIT
0505 010 004	X Series Base Station Kit	1
0505 990 001	Battery Charger w/Power Adapter with cord	1
0405 000 007	Lithium Battery	2
0403 000 043	H.I. Tape	1
0403 000 046	Tribrach w/optical plummet	1
0403 000 044	Tribrach adaptor	1
X SERIES ROVER KIT
0505 010 005	X Series Rover Kit	1
0505 990 001	Battery Charger w/Power Adapter with cord	1
0405 000 007	Lithium Battery	2
0404 000 004	2M Range Pole w/bag	1
0404 000 010	Controller Bracket for Range Pole	1
EXTERNAL UHF DATA LINK
0505 010 006	DL5 Datalink Kit	1
1705 212 232	CHC DL5 Datalink	1
0403 000 014	GPS to Datalink Cable	1
0402 000 007	Datalink Antenna	1
0403 000 002	3 Meter Cable for Datalink Antenna	1
0403 000 015	Datalink External Power Cable	1
0404 000 008	Datalink Antenna Mounting Pole Kit	1
0404 000 009	Pole Mounting	1
CONTROLLER AND DATA COLLECTION SOFTWARE
0505 010 007	LT30 Handheld - SurvCE Bundle	1
0401 070 022	LT30 GPS/GIS handheld controller	1
0408 000 008	SurvCE GPS only license	1
0505 010 008	LT30 Handheld - Landstar Bundle	1
0401 070 022	LT30 GPS/GIS handheld controller	1
1904 110 555	CHC LANDSTAR Controller Survey Software	1
0505 010 009	Getac - SurvCE Bundle	1
0401 070 039	Getac PS366 controller w/ GPRS	1
0408 000 008	SurvCE GPS only license	1
0505 010 010	Getac - Landstar Bundle	1
0401 070 039	Getac PS366 controller w/ GPRS	1
1904 110 555	CHC LANDSTAR Controller Survey Software	1
