Home > Products > EVA Machine > Full Automatic EVA Slippers Making Machine Prices JL-198

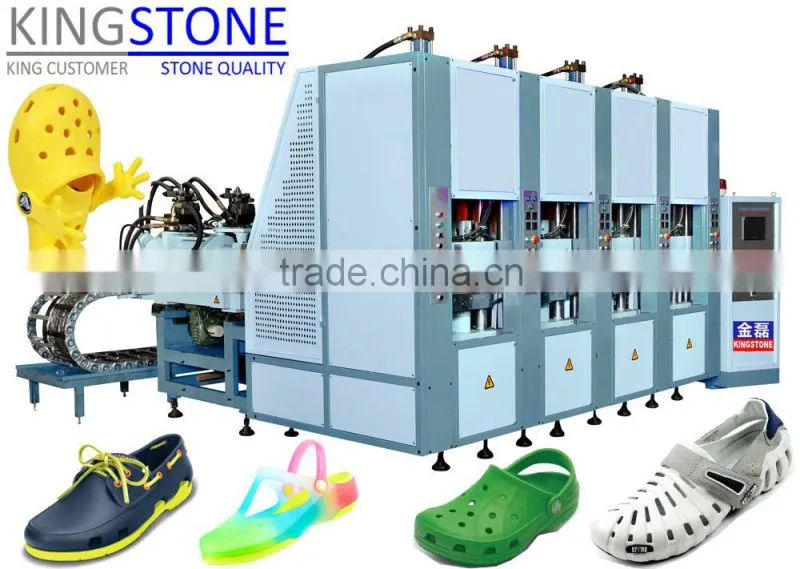

Full Automatic EVA Slippers Making Machine Prices JL-198
- 1000 Set / Sets per Month
- Guangzhou Shenzhen Hongkong
- T/T L/C D/P D/A Credit Card PayPal
-
High Heel EVA Mould Manufacturer EVA Slipper Making Machine JL-198
-
EVA Slipper Machine EVA Clog Shoe Making Machine JL-198
-
One Color full automatic EVA sole Injection moulding Machine JL-198
-
Single Color EVA Shoe Sole Plastic Injection Moulding Machine Price JL-198
-
EVA havana Slippers Machines EVA Shoe Sole Injection Making Machine JL-198
-
EVA shoe injection machine JL-198
Product Details
| Condition: | New | Production Capacity: | 400-600pairs/hour | Place of Origin: | Guangdong, China |
| Brand Name: | Kingstone | Model Number: | JL-198 | Voltage: | 220v/380v/440v |
| Power(W): | 18.5KW | Dimension(L*W*H): | 9*4.7*3m | Weight: | 23TONS |
| Certification: | CE SGS, CE Approved | Warranty: | 2 Years, 2 Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Full Automatic EVA Slippers Making Machine Prices JL-198
Main Features:
1. Touching controlled man-machine interface, visible result in easy operation.
2. Easy mold thickness adjustment, steplessly adjustable within 100-220mm.
3. Toggle mechanism design, quick mould opening and low noise.
4. Optimized design on the injection speed and injection presure, able to improve the productivity.
5. 430mm of fixation mold opening stroke unchanged due to differnt height of mold, able to produce double deck mould.
6. 4mm was compensative in the station by the balance system.
7. Temperature and material plasticization more steady by 4+1 heating zones of PID control on the barrel.
8. Large injection volume, enable producing of footwear products and other EVA expanded products comes from after mould opening, such as: EVA toy, seat backrest of the car.
9. Larger mould holder design be applicable on various moulds and high compatibility.
Machine model | JL-198-2S | JL-198-4S | JL-198-6S | JL-198-8S | JL-198-10S | |||
Mould-Clamping Unit | ||||||||
Work station |
| 2 | 4 | 6 | 8 | 10 | ||
Clamping force | TON | 190 | 190 | 190 | 190 | 190 | ||
Mould-holder dimensions | MM | 290*550*2 | 290*550*2 | 290*550*2 | 290*550*2 | 290*550*2 | ||
Mould height | MM | 100-250 | 100-250 | 100-250 | 100-250 | 100-250 | ||
Opening stroke | MM | 350 | 350 | 350 | 350 | 350 | ||
Injection Unit | ||||||||
Injector | SET | 1 | 2 | 2 | 2 | 2 | ||
Screw diameter | MM | 60/65 | 60/65 | 60/65 | 60/65 | 60/65 | ||
Max.injection volume | cm3 | 950 | 950 | 950 | 950 | 950 | ||
Injection pressure | kg/cm2 | 1000 | 1000 | 1000 | 1000 | 1000 | ||
Screw rotation speed | R.P.M | 0-165 | 0-165 | 0-165 | 0-165 | 0-165 | ||
Electricity Consumption | ||||||||
Heating power of injector | KW | 13 | 13 | 13 | 13 | 13 | ||
Hydraulic unit motor | KW | 33.5 | 33.5 | 33.5 | 33.5 | 33.5 | ||
Heating board of mold | KW | 49 | 62 | 75 | 88 | 101 | ||
Total electric consumption | KW | 95.5 | 108.5 | 121.5 | 134.5 | 147.5 | ||
Temperature control | Section | 4 | 4 | 4 | 4 | 4 | ||
Dimension and Weight | ||||||||
Machine dimension(L*W*H) | M | 5*4.7*3 | 7*4.7*3 | 9*4.7*3 | 11*4.7*3 | 13*4.7*3 | ||
Machine weight | TONS | 10 | 16 | 23 | 29 | 35 | ||
*Note: Above data only for reference. | ||||||||
Products Show
Professional and special package for our Shoes Making Machine,it can protect our machine without broken during the ship trip.
1. Are you manuafacturer?
Yes, we are manufacturer, we located in Chashan Town, Dongguan City, welcome to visit our factory!
2. How to buy your machine?
Please send inquiry to our email, when we reach a agreement, we will sign a contract to confirm our order.
3. How to contact you?
You can click the "Contact Supplier" in the top of this page or contact me from the bottom contact info, we will reply to you via E-mail or phone call within 12 hours.
4. What about your warranty?
Our warranty is 2 years, all machine part can order from us, and we will provide the best service according to the condition.
5. How long we will get the machine?
After we reach a agreement, our factory will produce and finished within 15 working days. (in the normal condition)
6. Are we still need to install the machine after we got?
We will debug the machine before we deliver to you, also we will send you manual to teach you how to use the machine. If you could not install it success, we could send our engineer to your factory and help to install.
7. How can you guarantee we receive a good quality?
First, the machine parts is purchase from brand company, we have Q/C department to control the quality. When the machine is finished, we will make sure it's work well. Also, you can come to our factory to inspect the machine before you arrange shipment.
