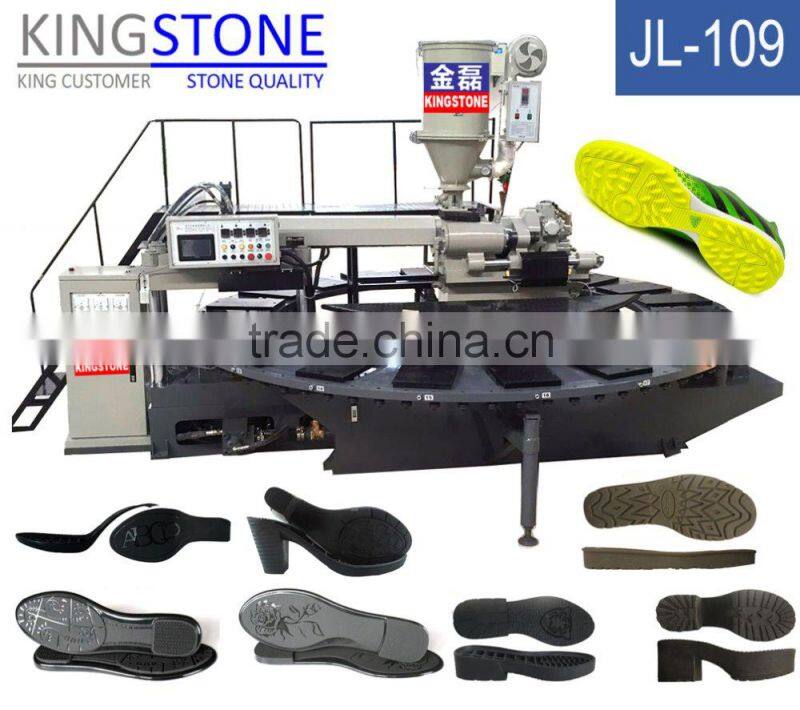

20 Stations Rotary Single Color Shoe Sole Making Machine JL-109
- 1000 Set / Sets per Month
- Guangzhou Shenzhen Hongkong
- T/T L/C D/P D/A Credit Card PayPal
- Rotary TPU/TR Injection Moulding Machine (1/2 color) JL-109
- Automatic Rubber Sole Hydraulic Moulding Machine JL-168
- Rotary Shoe Injection Machine 20/24 Stations PVC Shoe Making Machine JL-105
- PVC Sport Shoe Sole Injection Molding Machine JL-268
- Professional Shoe Sole Injection Molding Machine for Sale JL-268
- Shoe Sole Injection Molding Machine for Sale JL-268
Product Details
Condition: | New | Production Capacity: | 400-600pairs/hour | Place of Origin: | Guangdong, China |
Brand Name: | Kingstone | Model Number: | JL-109 | Voltage: | 220v/380v/440v |
Power(W): | 22.5KW | Dimension(L*W*H): | 7500*3500*2300mm | Weight: | 13TONS |
Certification: | CE SGS, CE Approved | Warranty: | 2 Years, 2 Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
20 Stations Rotary Single Color Shoe Sole Making Machine JL-109
Main Features:

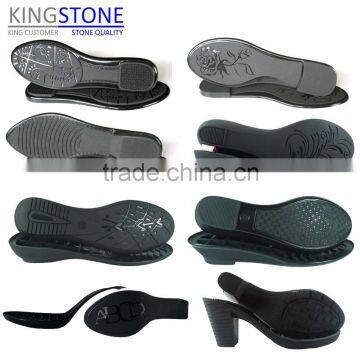

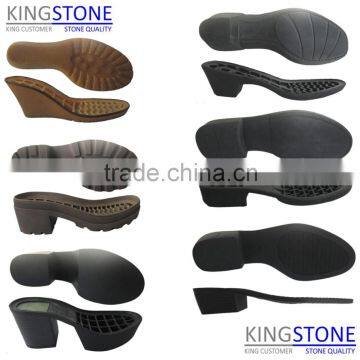

1. Product: Specialized in producing various kinds of one color and two color outsoles for sport shoes, leisure shoes, slippers, sandals, man’s and lady’s shoes in general, etc.
2. Material: Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as TPU and TR.
3. Computerization in analysis and design, the machine is well in stability and easy for maintenance.
4. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity. Conformed to human engineering in design, it features easy and friendly operation.
Machine model | JL-109-20S | JL-109-2C-20S | |
Mould-Clamping Unit | |||
Work station |
| 20 | 20 |
Clamping force | TON | 120 | 120 |
Opening stroke | MM | 210 | 210 |
Mould dimension | MM | 420*280 | 420*280 |
Height of injection nozzle | MM | 280 | 280 |
Injection Unit | |||
Injector | SET | 1 | 2 |
Screw diameter | MM | 60 | 60,55 |
Screw L/D ratio | L/D | 20 | 20 |
Max.injection volume | cm3 | 700 | 700,600 |
Injection speed | Cm/s | 500 | 500 |
Screw rotation speed | R.P.M | 10 | 10 |
Electricity Consumption | |||
Heating power of injector | KW | 7 | 7*2 |
Hydraulic unit motor | KW | 22.5 | 22.5*2 |
Total electric consumption | KW | 29.5 | 59 |
Temperature control | Section | 4 | 4*2 |
Dimension and Weight | |||
Machine dimension | (L*W*H)MM | 5100*3500*2300 | 7500*3500*2300 |
Machine weight | KGS | 6100 | 12800 |
*Note:Above data only for reference. |
Products Show
While customer visit, we will show the working of machine they interested. Welcome!
1. It can tell the customer how the machine work;
2. The customer can know and see the quality of machine.
Keep the clean of factory environment to make sure the produce of machine.
Professional and special package for our Shoes Making Machine, it can protect our machine without broken during the ship trip.
Dongguan Kingstone Shoe-making Machinery Co. Ltd. is a professional manufacture of shoes machinery R&D, design, manufacturing and slaes, the company is located in Hengjiang Village Chashan Town Dongguan City, next to Chashan Government and Dongguan Railway Station and Eastern Expressway.
Jelly Shoe Molding Machines, TPU Soles Modling Machine, Single, Double, Triple-color Botts (Water Shoes) Machines, Single, Double, Triple-color TPR, TPU, PVC, TR, Sole injection Molding Machines, Single, Double, Triple-color TR Soles, EVA Slippers Injection Shoes, Silicone, Rubber Injection Molding Machine, PVC Soles, Laces and other Series Shoe-making Equipment and the Corresponding Types of Shoes Machine is suitable for producing various kinds of shoes soles.
It widely used to produce plasctic shoe, TPU/TPR/PVC/TR shoe, Jelly shoes, Slipper, Net Shoes, Rain Boots, Water Shoes, etc.
1. Are you manuafacturer?
Yes, we are manufacturer, we located in Chashan Town, Dongguan City, welcome to visit our factory!
2. How to buy your machine?
Please send inquiry to our email, when we reach a agreement, we will sign a contract to confirm our order.
3. How to contact you?
You can click the "Contact Supplier" in the top of this page or contact me from the bottom contact info, we will reply to you via E-mail or phone call within 12 hours.
4. What about your warranty?
Our warranty is 2 years, all machine part can order from us, and we will provide the best service according to the condition.
5. How long we will get the machine?
After we reach a agreement, our factory will produce and finished within 15 working days. (in the normal condition)
6. Are we still need to install the machine after we got?
We will debug the machine before we deliver to you, also we will send you manual to teach you how to use the machine. If you could not install it success, we could send our engineer to your factory and help to install.
7. How can you guarantee we receive a good quality?
First, the machine parts is purchase from brand company, we have Q/C department to control the quality. When the machine is finished, we will make sure it's work well. Also, you can come to our factory to inspect the machine before you arrange shipment.
