Exclusive RS485 Group Cabinet Card Lock Network System(M1-10BML)

Specifications

1.exclusive cabinet card lock network system
2.keys:password,M1 card
3.easy install and operate
4.low cost network solution

Product Name: exclusive RS485 group cabinet card lock network system(M1-10BML)

Product Model: M1-10BML
Product Group: cabinet lock network system

Features:

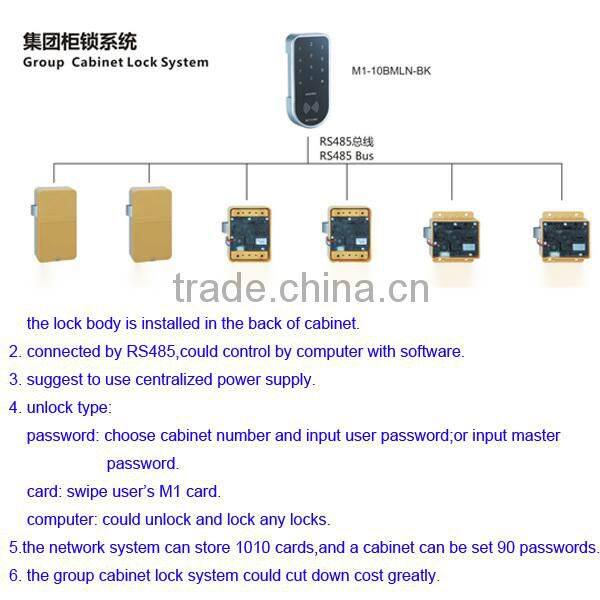

One password front panel can control up to 90 lock units,greatly cut down product cost and management cost. You could operate by computer with our free software and view records freely.

1.easy to connet by RS485 line.
uld operate by computer in real-time and read records; can initialize/setting locks directly .
3.Most of the working can been operated by the management software or keypad. For example: Authorize or log-out the card, inquiry the switch status and the unlocking record, remote control unlock or locking the doors or cabinet. The operation is simple and easy.
4. Greatly reduce workload,staffs and cost. (just use one keypad or software can control so many cabinets in the same time)
5. Three ways to unlock: M1 card, password,remote-control(computer network )
6. Emergency opening:external battery supply,management computer

Work mode:
All the modes could work independently.
Password mode:unlock by password,input cabinet number and user password;each cabinet lock can set 90 user passwords;
Card mode:swipe the relative Mifare One card;total stroe 1010 M1 cards,can assign to any locks as you like.
Remote control mode:optional function.install our free sofeware to operate by computer.

Parameter
1. Working voltage: DC6V (4 *AA alkaline batteries or centralized power supply).
2. Working current: 200 MA-PP
3. Low voltage alarm: <4.8 V
4. Static power: 30 uA
5. Working temperature:-40°C to+85°C, humidity≤ 98%
6.Antistatic: + 15 KV

Application:
electronic group cabinet lock network system solution can greatly cut down cost,and suitable for places where users are relatively fixed, such as school,mine office,hospital, memorial park,government unit,factory workshop etc.





Packing:neutral packing.2pcs/box,80pcs/ctn,GW:12kg.

Delivery:1-7 days





Smart cards we could produce:

TM card: DS1990A, RW1990,
RFID card: EM4100,Mifare 1,

electronic cabinet locks we could produce:

TM1990A ibutton card key electronic cabinet lock;

EM4100 ID card key electronic cabinet lock;

Digital password keypad electronic cabinet lock;

Mifare One smart card key electronic cabinet lock;

Group cabinet locks network solution;

electronic door locks network solution;

electronic door locks we could produce:

TM1990D ibutton card key electronic door lock;

TM1990D ibutton card key and password electronic door lock;

Mifare One smart card key electronic door lock;

wireless remote control electronic door lock;





Zhongshan JIEAN Electronic Technology Co., Limited was set up in 2000. We mainly produce TM1990A (such as information card, electronic keys, and touch memory keys) EM4100,T5577,T5567,T5557 smart cards, and electronic cabinet locks, electronic door locks,magnetic locks,access control system and related products.



Thanks for your view, need more information about cabinet card lock network system, please send us an inquiry.
