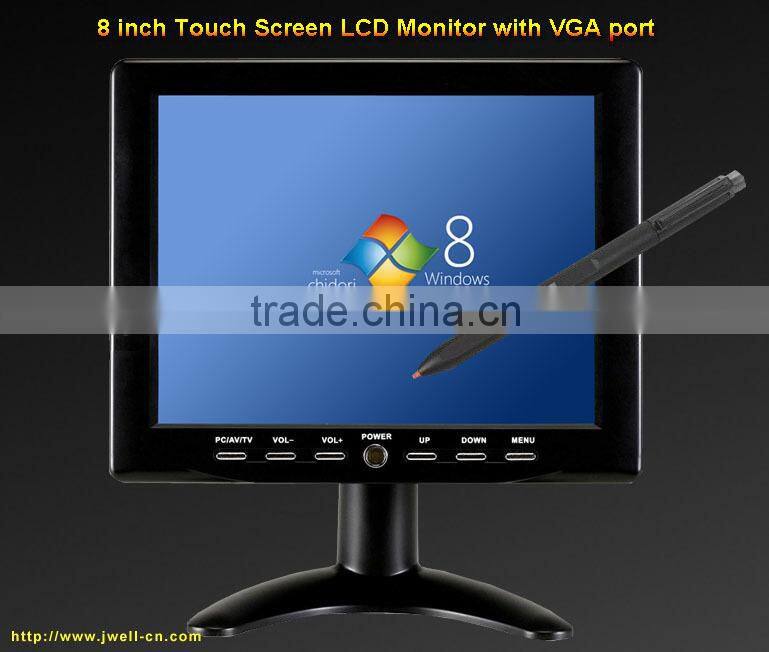

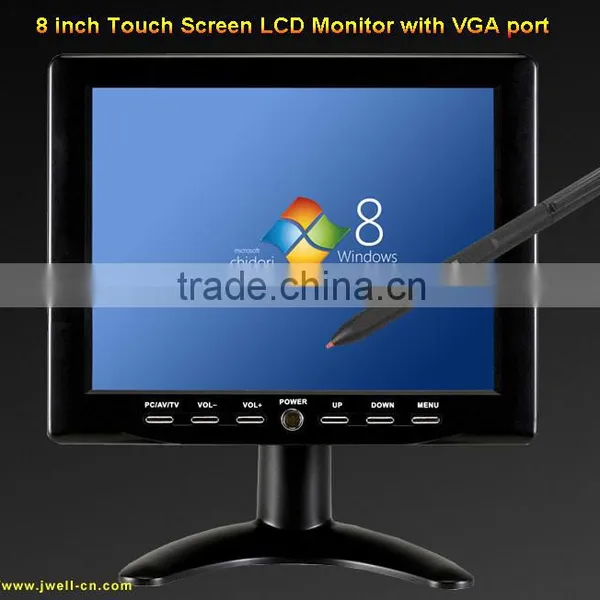

Hot HD 8 Inch TFT LCD AV VGA BNC Monitor

8 inch Digital TFT Touch Monitor

Description: 8″ TFT LCD Monitor with VGA port

Case/Bezel Colour: Black

Display Type:  4:3 Ratio 8″Active Matrix TFT LCD

Active DisplayArea: 162(W) X 121.5(H) mm

Native Resolution :800 x 600 @ 60Hz _1024 x 768 @ 75Hz

Sychronization Range: 30-80 KHz horizontal, 55-75 Hz Vertical

Pixel Pitch: 0.0675(W) X 0.2025(H) mm

Pixel Response Time Rise + Fall (Typically): 12ms

Plug and Play: VESA DDC 1/2B

On Screen Display (OSD): Remote OSD

Colours: 16.7 million

Brightness: 350 cd/m2

Contrast Ratio Typically: 400:1

ViewingAngle Horizontal (left/right): 170degreen (85degreen/85degreen)

(From Centre, CR>=5) Vertical (up/down): 160degreen (70degreen/90degreen)

Backlight Lamp life Hrs to 1/2 brightness: 50,000

Input Video Format: Analog RGB ,NTSC/PAL/SCAME(AUTO)

Monitor Dimensions: 205 x 163 x 31(mm)

Shipping Carton Dimensions: 250 x 85 x 403(mm)

Provider Weight (approximately) Monitor/Shipping: 1.5kg

Power Supply: External: 85-265VAC, 50-60 Hz

Power Consumption: <10 W Typ

Temperature Range: Operating:0C-50C,

Storage:-20C-80C

Relative Humidity Non Condensing: Operating:10%-90%, Storage 5%-90%

Warranty: 2 years

AgencyApprovals: FCC, CE, RoHS

Accessories

Power cable

Remote

Power Supply Adaptor

User Manual (English only)

Bracket

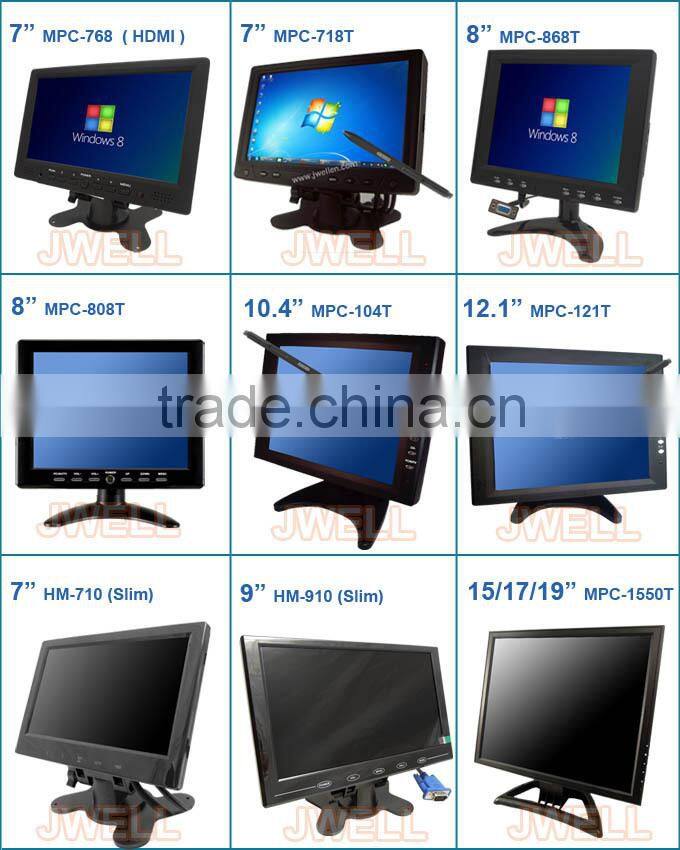

Related products from our company :
