Home > Products > Support packaging machine > MIC- New design stainable pouch packing machine/bag given filling machine for beans/rice/sauce/liquid
MIC- New design stainable pouch packing machine/bag given filling machine for beans/rice/sauce/liquid
- 2 Set / Sets per Month
- shanghai
- T/T
Product Details
Condition: | New | Application: | Beverage, Chemical, Food, Medical, Other | Packaging Type: | Bags, Pouch, Stand-up Pouch, Other |
Packaging Material: | Other | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V | Power: | 2.5Kw | Place of Origin: | Jiangsu, China |
Brand Name: | MIC | Model Number: | MIC | Dimension(L*W*H): | 1140*1500*1560mm |
Weight: | 1400kg, 1400kg | Certification: | ce | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
MIC-stainable pouch packing machine
Specification
Model | Specialized for preformed bag |
No. of working stations | Eight |
Bags size | W:80~210mm L:100~300mm |
Filling Volume | 30 – 2500g depending on type of products |
Capacity | 25-60bags/min for common bag (The speed depends on the product status and filling weight)) |
Total power consumption | 2.5Kw |
Dimension | 1140*1500*1560mm |
Weight | 1400kgs |
Compress air requirement | 0.6m³/min supply by user |
Machine running video link:/watch?v=CgvDnlBblno&feature=youtu.be
Characteristic
1.Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine is easy operate and doing accurate.
2.The speed of this machine is controlled by frequency converter.So that It can adjust according to the specific material and pouch which you need to pack.
3.The bag width,length and type can be changed according to your demands in same machine. Changing different bag and different size is easy.(If you have different bag size and bag type,please consult your Contact Person ).Adjust size by one handle but button so that it can easy operate and fix.
Machine detail

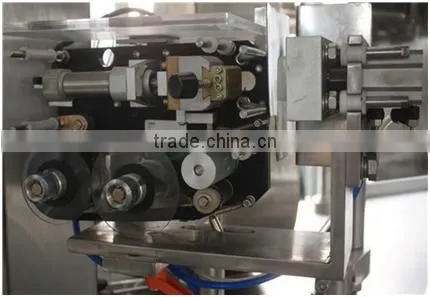

Coding machine.
Vertical bag warehouse
Sealing cutter
Below open bag.
Machine overall size
Multihead weigher MIC-10
Specification
Model | MIC-10 |
Weighing ranging | 25-500*ng |
Accuracy | +-0.5-2g |
Weighing speed | 70wpm |
Hopper volume | 1.3L |
Preset programs | 20 |
Power supply | 220v 50/60HZ 1.5kw |
Touch screen | 10.4 inch |
Size | 1436*1086*1258 |

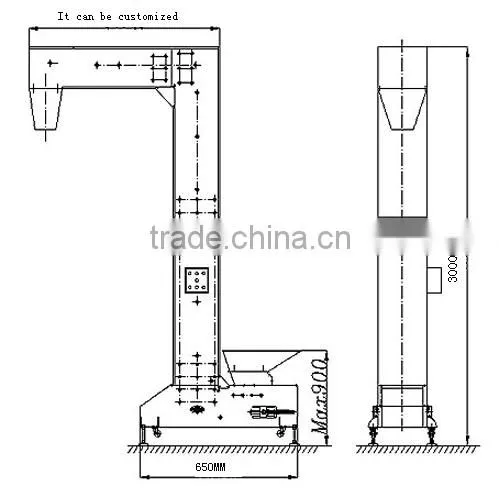

Z-elevator
Specification
Powder | 0.75kw |
Conveying ability | 3-6m³/h |
Voltage | 220V |
G weight | 428kgs |
Z type bucket elevator (replacing the Tilted elevator for feeding materials with the Z type bucket feeder)is suitable for elevation of granule stuff in grain warehouses,
grain processing factories, feed processing factories and other industries.
It has features of small volume, large elevating quantity,
low electricity consumption and stable performance.
packed by wooden case
Guaranty: One Year
One set of consumable accessories will be provided with the machine.
Before delivery, we will adjust the machine to fit for your product.
Any question, you can mail/call us at any time. And our most experienced engineers is assigned to give consulting service, and always available for dispatching abroad.
All spare parts are always available for delivery.
Manual is in English.
Installation/ Training:
The installation can be provided by the MIC Company. It must be after shipment and machine has arrived and factory must be ready equipped with all necessary requirements before booking installation with MIC Company. Our engineers will come to the site for the complete and final installation. During the installation session, a one day training course will be provided to the customer to the customer for operation and maintenance procedure. The purchase at US$70/person/day plus all local transportation, accommodation, air tickets (round trip). Day charges include travel day
Our factory is located in Changzhou near Tai Lake. 500 meters away from Wuxi, the location is beautiful and transportation convenient. We are specialized in designing and manufacturing of art equipments for pharmaceutical medicine, food, biology, chemical and petroleum industries.
Focused on technology and quality, we always dedicate ourselves to providing reliable high efficient products to our clients. Machines such as emulsification machines, paste machines, mixers, capsule filling machines, pressing machines, the grinder, the sealing machines etc., all have an attractive appearance and innovative technology.
