MIC new design double-side labeling machine for round and square bottle and unnormally shape bottle
- 4 Set / Sets per Month
- shanghai
- T/T Credit Card
-
MIC-W01 Manual Liquid Filling Machine Small Filling Machine
-
MIC-1218 dual split beam x-ray inspection machine
-
MIC-1218 dual split beam x-ray inspection system x-ray inspection machine
-
MIC-1218 dual split beam functionally rich x-ray inspection system
-
MIC-1218 dual split beam Bulk Foods X-Ray Detecting Machine X-Ray inspection system
-
MIC- 350 plastic thermoforming blister packing machine for medicne food cosmetic with GMP
Quality Choice
Product Details
| Condition: | New | Application: | Beverage, Chemical, Commodity, Food, Other, Beverage, Chemical, Commodity, Food, Machinery & Hardware | Packaging Type: | Film, Other |
| Packaging Material: | Other | Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 220V, 220v | Power: | 2.2kw, 2.2kw | Place of Origin: | Jiangsu, China |
| Brand Name: | MIC | Model Number: | MIC | Dimension(L*W*H): | 1700*760*1450 |
| Weight: | 400kg | Certification: | ce | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

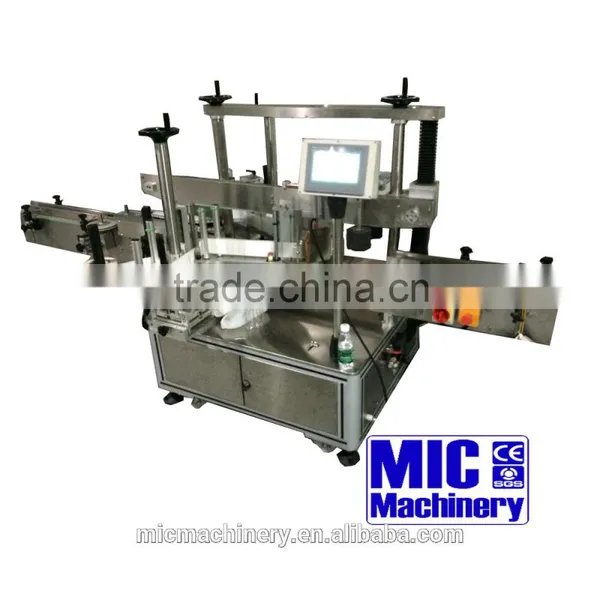

MIC-double-side labeling machine
Specification
Label position | Square bottle labeling double-side. Round bottle labeling circumference |
Labeling speed | 5-30m/min |
Labeling capacity | 3000-3600bottles/min |
Labeling accuracy | +/-1MM |
Voltage | 220v |
Power | 2.2kw |
The width of conveyor belt | 82.6mm POM chain-sheet belt |
Speed | 5-15m/min |
Air pressure | 0.6-0.8Mpa |
The distance between the conveyor belt and floor | 750mm+/-25mm(can adjust) |
Program of the machine | PLC control |
Roll inner diameter | 76mm |
Roll outer diameter | Max300mm |
Axonometric drawing
Front view
View from above
Back view

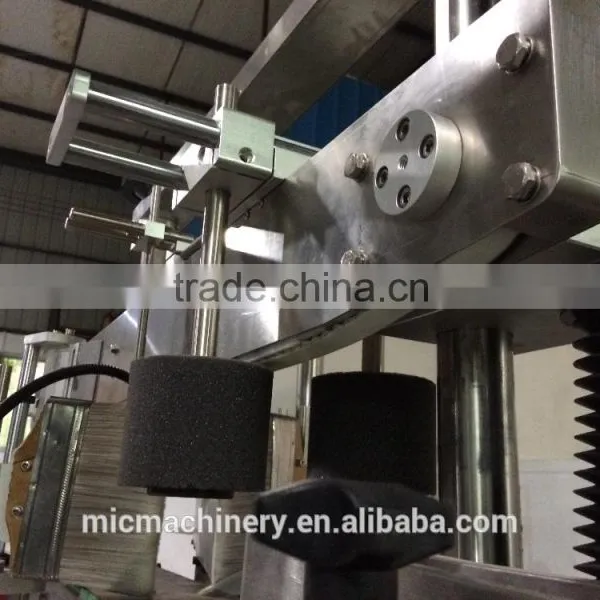

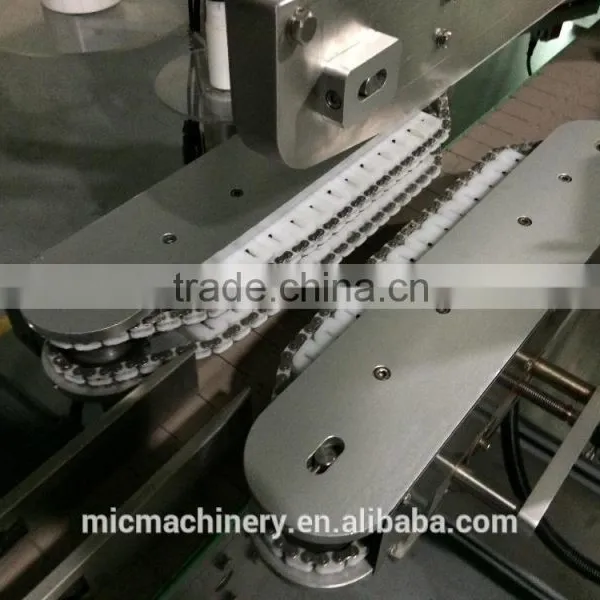

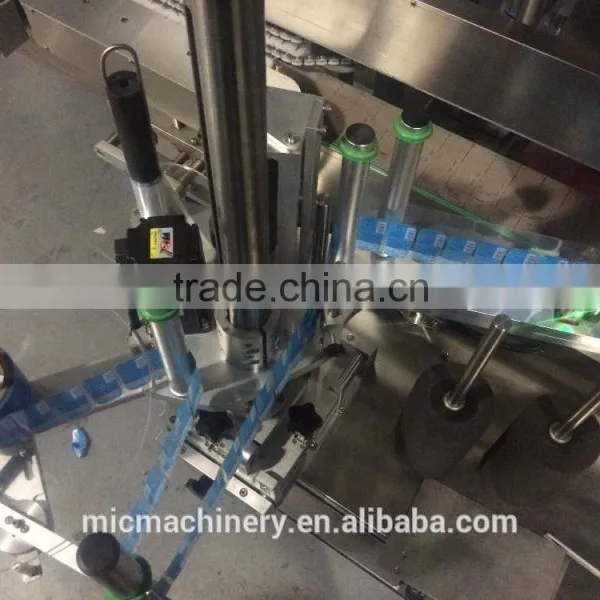

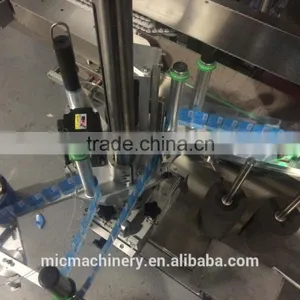

Machine detail
Detail of electric box
Work principle
The core of the work principle:
1,Sensors detect the product go through, back to the signal to the labeling control system, in the appropriate position control system control sent out labels and attached with a stay in product labeling position.
2.Product flows through the labeling device, coating the label attached on the product , a label attached.
Packed by wooden case
Sales After Service:
Guaranty: One Year
One set of consumable accessories will be provided with the machine.
Before delivery, we will adjust the machine to fit for your product.
Any question, you can mail/call us at any time. And our most experienced engineers is assigned to give consulting service, and always available for dispatching abroad.
All spare parts are always available for delivery.
Manual is in English.
Installation/ Training:
The installation can be provided by the MIC Company. It must be after shipment and machine has arrived and factory must be ready equipped with all necessary requirements before booking installation with MIC Company. Our engineers will come to the site for the complete and final installation. During the installation session, a one day training course will be provided to the customer to the customer for operation and maintenance procedure. The purchase at US$70/person/day plus all local transportation, accommodation, air tickets (round trip). Day charges include travel day
Our factory is located in Changzhou near Tai Lake. 500 meters away from Wuxi, the location is beautiful and transportation convenient. We are specialized in designing and manufacturing of art equipments for pharmaceutical medicine, food, biology, chemical and petroleum industries.
Focused on technology and quality, we always dedicate ourselves to providing reliable high efficient products to our clients. Machines such as emulsification machines, paste machines, mixers, capsule filling machines, pressing machines, the grinder, the sealing machines etc., all have an attractive appearance and innovative technology.
