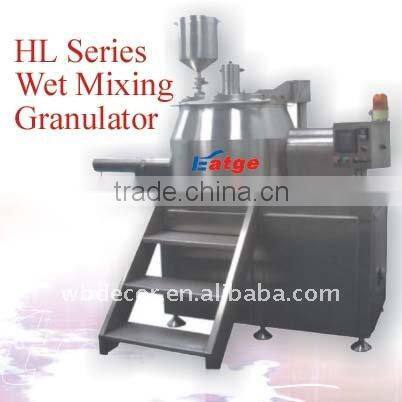

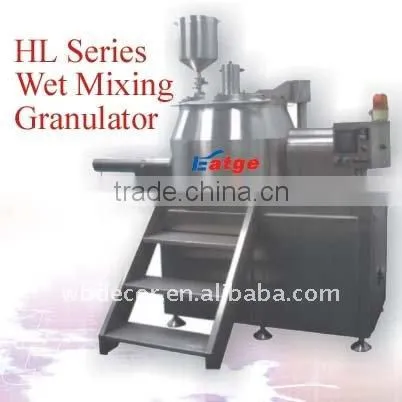

HL series wet mixing granulator

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 5 Set / Sets per Month
Port chongqing port
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Capacity	3--200kg/batch	Control Mode	Semi-Automatic
Place of Origin	Chongqing, China	Brand Name	etage
Model Number	HL series

Packaging Details

Palletized wooden carton

Product Description

Specifications

simple and reliable torque-balanced cover-opening structure could
be localized at any angle for concenient operation.

Wet mixing granulator utilizes the stirring function to make materials into three-dimensional movements at diections of axle.radial and tangent to achieve uniform mixing .Granules are then made by the vertical cutting knife.

liquid sprayed is precisely measured to assure uniform granules and stable components.

High Effeciency of productivity (Only several mintues per batch)

Good flowing capacity and high dehree of pressing and filling.

Double frequency adjusting speed for the best result of granulation.

Simple and reliabel torque-balanced cover-opening structure could be loacalized at any angle for convenient operation. safety and reduction of labor intensity

The machine works at negative pressure with ckean inside surface without dead corner.

Item	Unit	HL-10	HL-50	HL-100	HL-200	HL-250	HL-400	HL-600
capacity	L	10	50	100	200	250	400	600
Working time	Min./Batch	3-5	15-25	40-60	80-100	100-110	120-180	190-280
Stirring speed	r/min	Invent adjustable	Invent adjustable	Invent adjustable	Invent adjustable	Invent adjustable	Invent adjustable	Invent adjustable
Power	KW	3	7.5	11	15	18.5	22	30
rotary of cutting knife	r/min	Invent adjustable	Invent adjustable	Invent adjustable	Invent adjustable	Invent adjustable	Invent adjustable	Invent adjustable
cutting knife power	KW	0.75	1.5	2.2	4.0	5.5	7.5	11
Compressed air pressure	Mpa	<0.5	<0.5	<0.5	<0.5	<0.5	<0.5	<0.5
Cokmpressed air flow	Cubic meter/min	0.15	0.18	0.22	0.3	0.35	0.45	0.60
Weight	KGs	90	400	800	1200	1600	2300	2300
Dimension	cm	1304986	14070125	16582160	18090166	18499167	210110167	220120170
