Best selling product 30W/70W/80W IP65 Tri proof led lamp

Best selling product 20W IP65 Tri proof led lamp

LED Lamp Description

Tri-proof 3P LED Lamp light is usually used in environment which require water-proof, dust-proof,corrosion-proof, Never rust. Resistance to impact, Fireproof lighting .

LED Lamp Features:

1. Water-proof design without adhesive, so there is no water leakage caused by adhesive aging,convenient to disassemble;
2. Light panel and PSU adopt modular design,connected via terminals, easy and convenient to
maintain, no need of soldering;
3. Energy saving and eco-friendly, no IR or UV ,no mercury contamination, RoHS compliant;
4. Aluminum profile+PC, high impact resistance, good waterproof and anti-aging performance;
5. High transmittance PC cover transmit soft light+small power LEDs, high light efficiency ,uniform
light ;no dark spot;
6. High efficient heat dissipation, LEDs and power supply low temperature rise ,high stability of
continuous working;
7. Can switch start frequently, no flicker and flare ,good color rendering performance.
Compact appearance, novel design style, easy to install and transport.

led lamp Applications:

Led lamp can be used in warehouse, parking lot,shopping mall,farm,Airport, subway, food plants, large-scale government projects, food factory, cold storage, metro, underground passage and other places.


LED Lamp Package information:

LED Lamp net weight:0. 96kg  gross weight:1.08kg single packing
dimension: 623*84*68mm outer carton dimension: 644*361*239mm
12PCS per box (net weight:14kg)

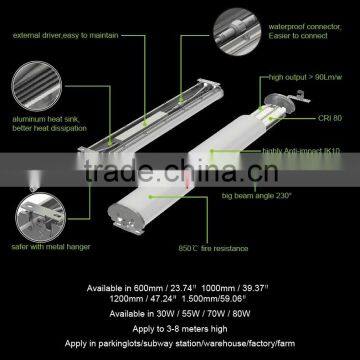

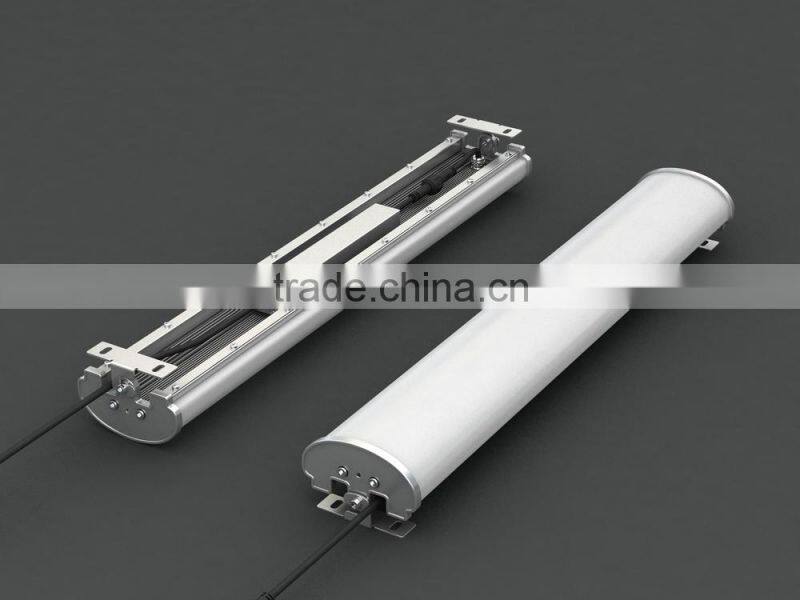

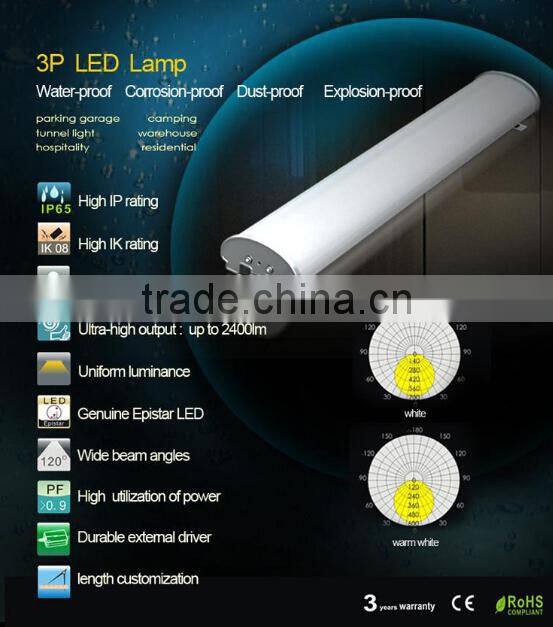

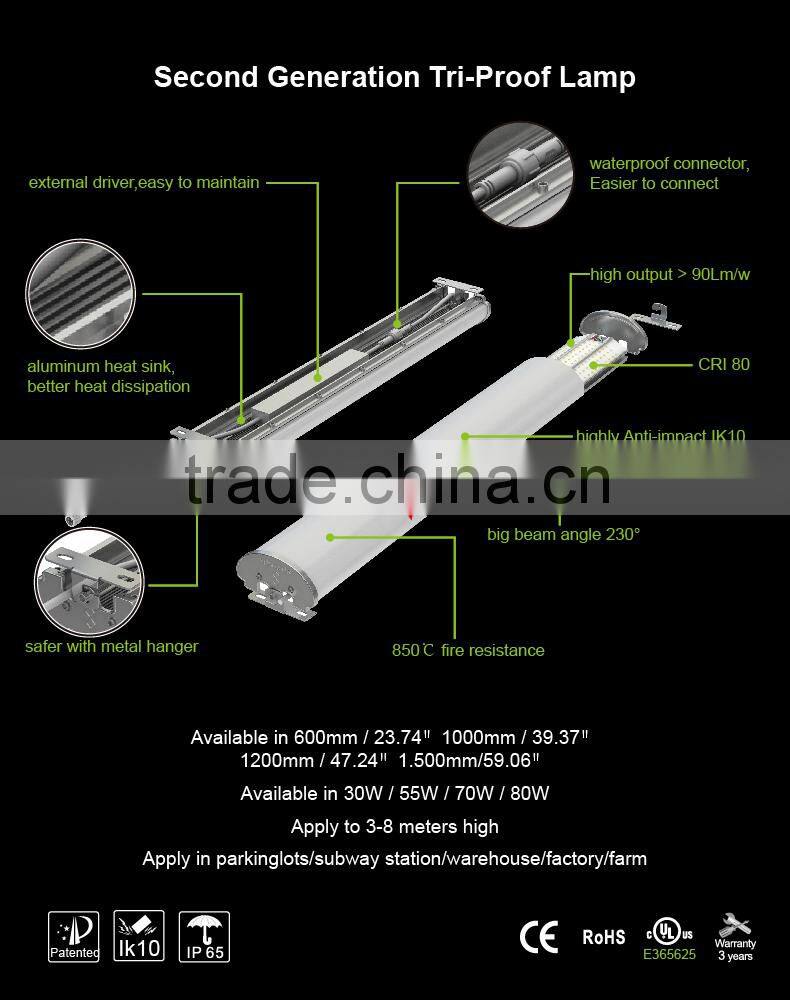

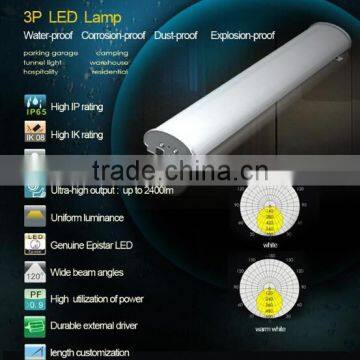

LED Lamp Pricture

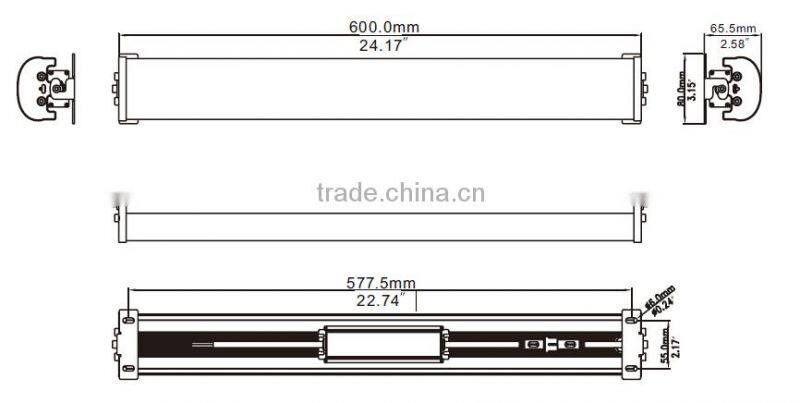

Dimensions:

Installation information:

1. Power off before installation;
2. First make sure the installation material can endure the weight of light, securely fix
the clamp on the installation surface with bolts , then fix the light to the hook of clamp
with bolts;
3. Connect the light wire to the wire of power supply, and process the joint with insulation
sealing;
4.If you choose suspension installation, please first fix the steel wire on the installation
surface, then fix the light to the ring of steel wire with bolt,finally adjust the length of
steel wire.

How to Installation :

Note:

1. Please first read the product specification carefully, make sure the using environment
conform to specification, then it can be used;
2. Please confirm the input voltage, frequency before use;
3. This product must be installed by professionals;
4. If there is any damage to the power wire or shell of the product, it should be taken as
defective product and do not use it;
5. Dangerous high voltage, non-professionals are not allowed to maintain the product;
6.If external soft cable or soft wire of the light is damaged, it should be replaced by
manufacture or service agent or personnel with similar qualification to avoid danger.

 Appliction image:
