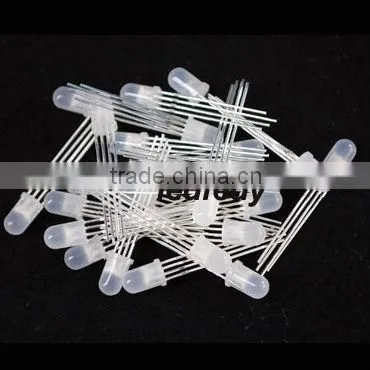

5mm led 0.5w

FOB Price

Negotiable / Piece

1000 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Guangdong, China

Brand Name:

FEDY

Model Number:

FD-5TRGB-A/C

Product Description

Specifications

5mm led 0.5w
1. 13 years professional manufacturer
2. Ultra brightness wi

5mm led 0.5w

5mm rgb led diode

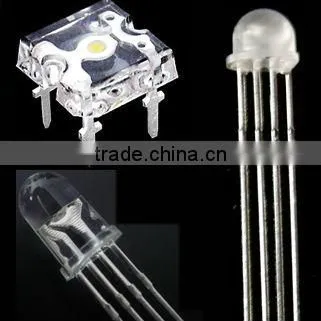

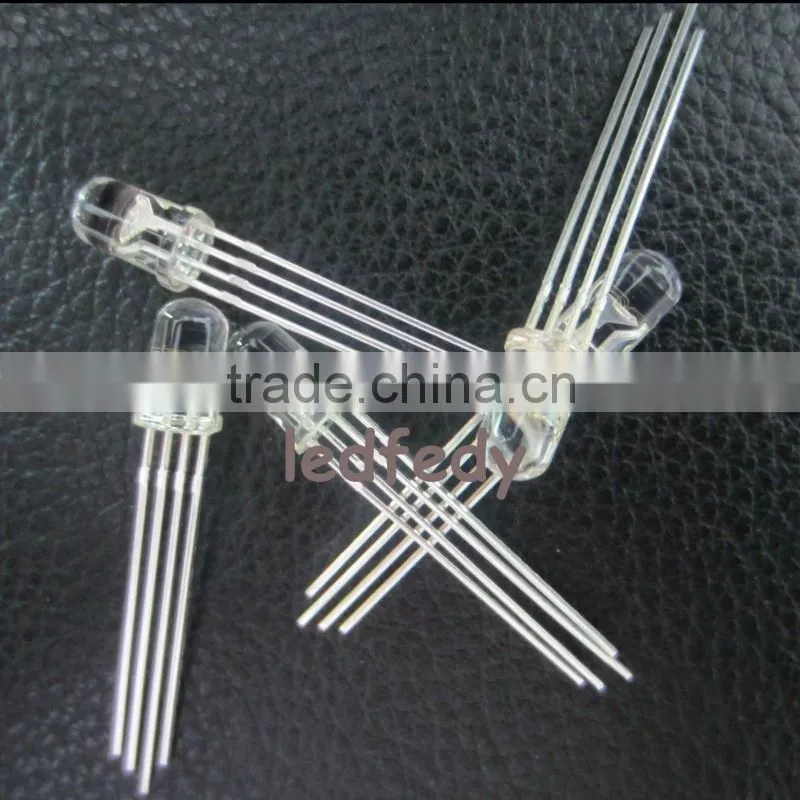

5MM Round RGB LED Diode with 4 Pins

Hot 5mm 4-pin RGB led diode

We do various color combination for full color led as red blue yellow, blue white green, purple pink blue, green yellow violet ,,,,

Various color combination as you think.

Common anode , common cathode

Water clear lens , white diffused lens.

Shape can be round , helmet, 5mm round , 8mm round 10mm round ,5mm straw hat , 5mm helmet, 2X3X4mm, ,,,,, Any type can be put with 4legs

Intensity : Standard brightness, super brightness, and ultra brightness .

1. We are professional factory of Power led, led diode, led strips . With experience of 11 years. Class A quality with 1-2 years warrany for all items. Orignal Epistar/Bridgelux chips with 100% Class A. All leds 100% QA passed before shipped. Fually automatic production machine and quality checking machines insures great quality of goods , and fast delivery .

5mm full color RGB series :

1. All with Original TW chips .

2. Class A quality . WIth ROHS

3. 2 years warranty

4. Lifespan more than 60 000hours

5. Tinned legs

6. Packing : 1000pcs/ESD bag

7. Leadtime: 3-6working days

Available :

1. Different color combination from : Red Yellow, Blue, Amber, Green, Pink, Purple, Cyan, Aqua,,,

2. Different shape: 5mm round , 10mm round, 5mm helmet , 5mm starwhat , super flux ,

3. Different lens in water clear , white diffused

4. Different intensity : Normal version , SUper bright version , Ultra bright version.

5. Polartify : Common cathode , Common anode

Main advantages of FEDY

1. Have our own packaging technology,can control all details,with good quality and high brightness.

2. led with Low lighting attenuation,Conversion factor can reach 90%

3. Good glare control.

4. Special design good for heating output.

5. Long lifespan of up to 50,000 hours

6. We are professional manufacturuer with 12 years experience in leds . Quality Is 100% guaranteed.

7. Leds with TW original Epistar chips amd Bridgelux chips from USA . Class A quality

8. With ROHS. With 2years warranty

9. Fast delivery .

10. Experienced worker and fully equiped with automatic making machine and testing machines

11. Experience technical staff with more than 10 years experience in led

12. Quality control: led 100% tested before shipping

13. Top quality raw material, All materials are strictly tested before usage.

14. Guarantee/warranty: 2 years

15. Excellent packaging : 1000pcs/ESD bag

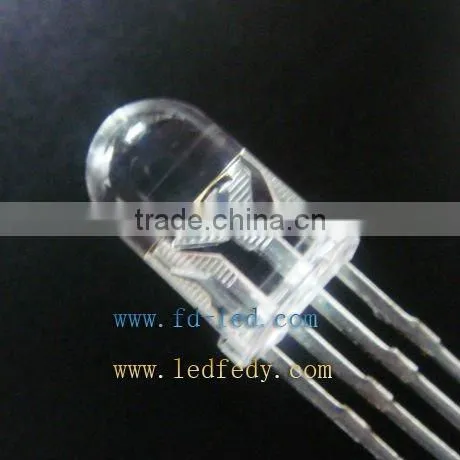

5mm round
Part No.	Lens color	Current(mA)	Voltage( V)
FD-5TRGB-A	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-5WRGB-A	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
Part No.	Lens color	Current(mA)	Voltage( V)
FD-5TRGB-C	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-5WRG-C	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V

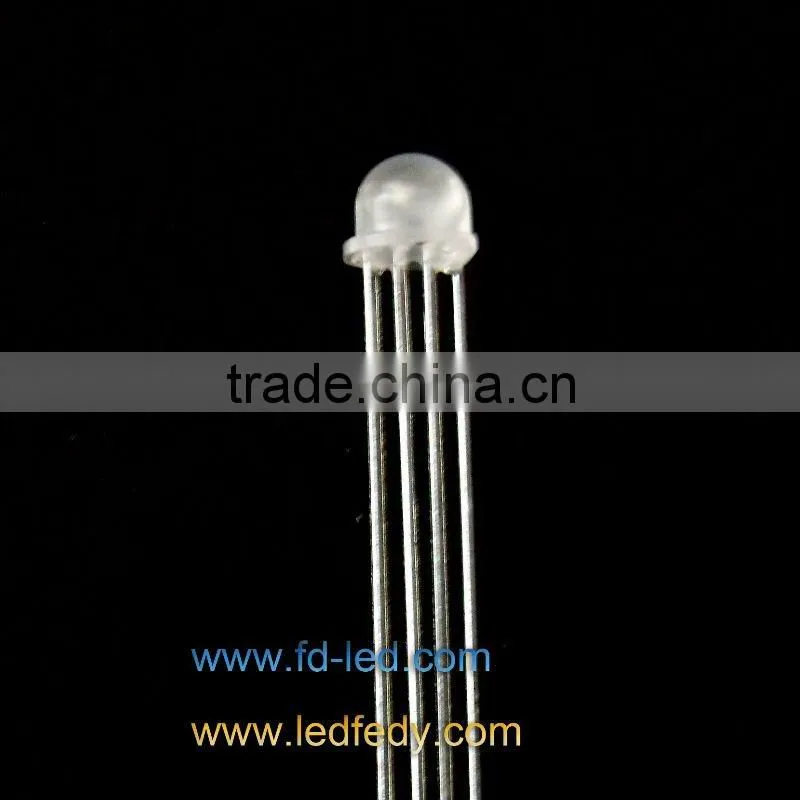

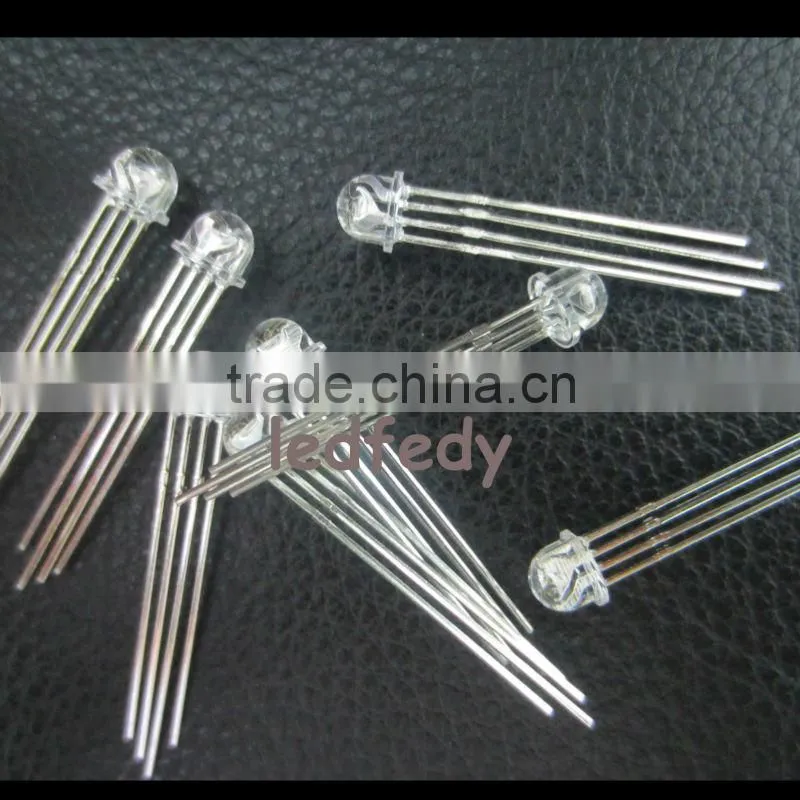

4.8mm helmet
Part No.	Lens color	Current(mA)	Voltage( V)
FD-5HTRGB-A	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-5HWRGB-A	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
Part No.	Lens color	Current(mA)	Voltage( V)
FD-5HTRGB-C	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-5HWRGB-C	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V

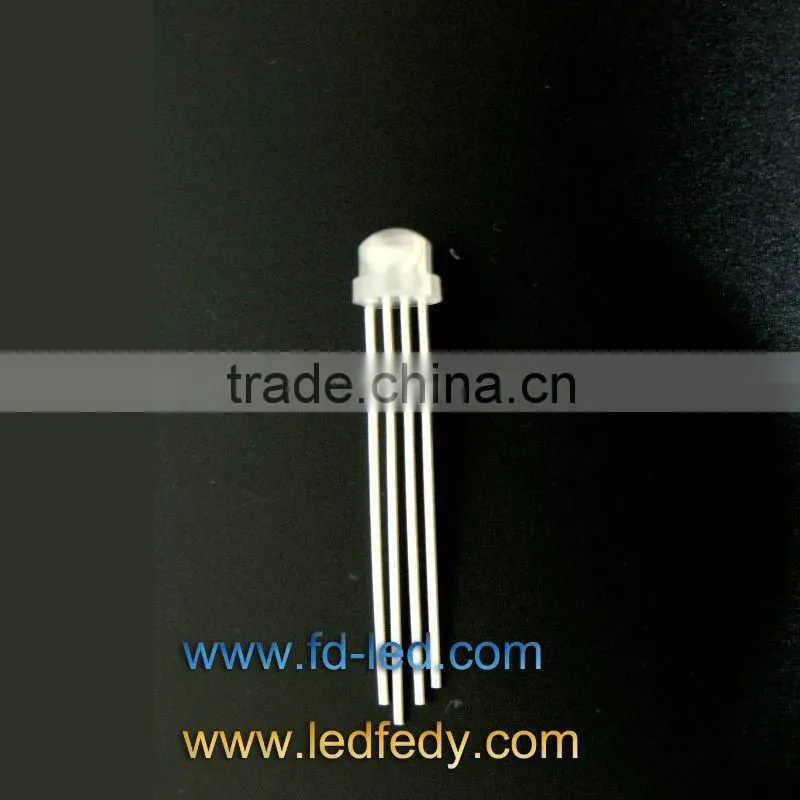

4.8mm Straw hat
Part No.	Lens color	Current(mA)	Voltage( V)
FD-5STRGB-A	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-5SWRGB-A	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
Part No.	Lens color	Current(mA)	Voltage( V)
FD-5STRGB-C	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-5SWRGB-C	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
8mm round
Part No.	Lens color	Current(mA)	Voltage( V)
FD-8TRGB-A	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-8WRGB-A	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
Part No.	Lens color	Current(mA)	Voltage( V)
FD-8TRGB-C	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-8WRGB-C	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
10mm round
Part No.	Lens color	Current(mA)	Voltage( V)
FD-10TRGB-A	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-10WRGB-A	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
Part No.	Lens color	Current(mA)	Voltage( V)
FD-10TRGB-C	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-10WRGB-C	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V

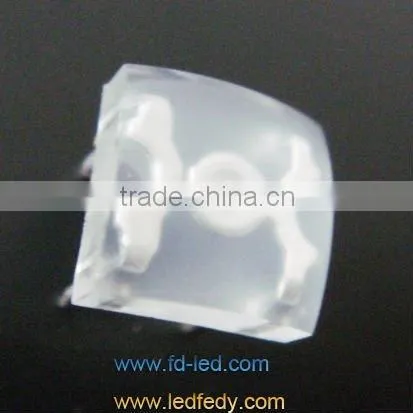

5mm super flux
Part No.	Lens color	Current(mA)	Voltage( V)
FD-115TRGB-A	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-115WRGB-A	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
Part No.	Lens color	Current(mA)	Voltage( V)
FD-115TRGB-C	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V
FD-115WRGB-C	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V Green: 3.0-3.4V

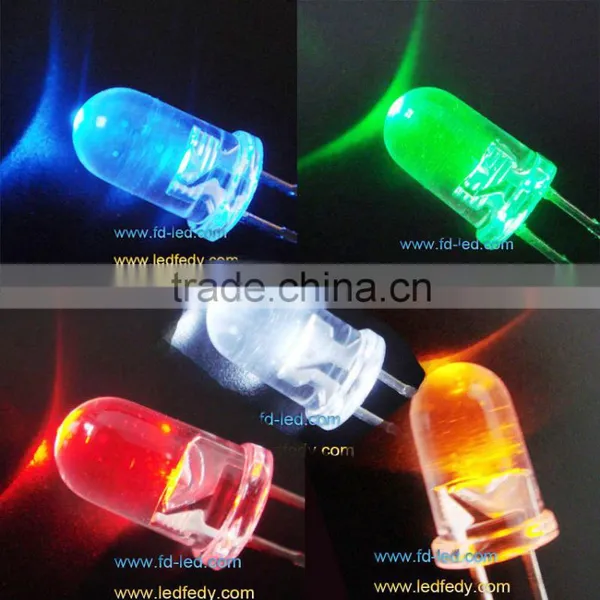

LED diode available range:

1. Size: 1.8mm 2mm,3mm,5mm,8mm,10mm,20mm

2. Shapes: round, burgonet, straw hat

3. Emitting color: red, yellow, blue, green, white, warm white

4. Beam Angle: 15-30 degrees

5. Wave length:red: 620-6300nm green:510-520nm blue:460-470nm yellow:585-595nm

6. Forward Voltage: 1.9-2.2V for red, yellow color, 3.0-3.4V for white .blue, green

7. Forward Current: 20mA

8. Lens colors: water clear, color diffused

9. Life Span: 50,000 Hours

10. Packing: 1000Pcs/bag,Anti-static bag antistatic bag

11. Luminous Intensity:

Red: 3000-4000MCD, 4000-6000MCD, 6000-8000MCD, 8000-10000MCD

Yellow: 3000-4000MCD, 4000-6000MCD, 6000-8000MCD, 8000-10000MCD

Green: 11000-13000MCD, 13000-15000mcd, 15000-18000MCD, 18000-20000MCD

Blue: 2000--3000MCD, 3000-4000MCD, 4000-5000MCD, 5000-7000MCD

White: 11000-13000MCD, 13000-15000mcd, 15000-18000MCD, 18000-20000MCD

3pin Bi-color				5mm round
3mm round
Red Blue				Part No.	Lens color	Current(mA)	Voltage( V)
Part No.	Lens color	Current(mA)	Voltage( V)	FD-5TRB-A	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V
FD-3TRB-A	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V	FD-5WRB-A	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V
FD-3WRB-A	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V	Part No.	Lens color	Current(mA)	Voltage( V)
Part No.	Lens color	Current(mA)	Voltage( V)	FD-5TRB-C	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V
FD-3TRB-C	Water clear	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V	FD-5WRB-C	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V
FD-3WRB-C	Diffused	20mA each	Red: 1.9-2.0V Blue: 3.0-3.4V	Part No.	Lens color	Current(mA)	Voltage( V)
Red Green				FD-5TRG-A	Water clear	20mA each	Red: 1.9-2.0V Green: 3.0-3.4V
Part No.	Lens color	Current(mA)	Voltage( V)	FD-5WRG-A	Diffused	20mA each	Red: 1.9-2.0V Green: 3.0-3.4V
FD-3TRG-A	Water clear	20mA each	Red: 1.9-2.0V Green: 3.0-3.4V	Part No.	Lens color	Current(mA)	Voltage( V)
FD-3WRG-A	Diffused	20mA each	Red: 1.9-2.0V Green: 3.0-3.4V	FD-5TRG-C	Water clear	20mA each	Red: 1.9-2.0V Green: 3.0-3.4V
Part No.	Lens color	Current(mA)	Voltage( V)	FD-5WRG-C	Diffused	20mA each	Red: 1.9-2.0V Green: 3.0-3.4V
FD-3TRG-C	Water clear	20mA each	Red: 1.9-2.0V Green: 3.0-3.4V	Part No.	Lens color	Current(mA)	Voltage( V)
FD-3WRG-C	Diffused	20mA each	Red: 1.9-2.0V Green: 3.0-3.4V	FD-5TYG-A	Water clear	20mA each	Green: 3.0-3.4V Yellow: 1.9-2.0V
Yellow Green				FD-5WYG-A	Diffused	20mA each	Green: 3.0-3.4V Yellow: 1.9-2.0V
Part No.	Lens color	Current(mA)	Voltage( V)	Part No.	Lens color	Current(mA)	Voltage( V)
FD-3TYG-A	Water clear	20mA each	Green: 3.0-3.4V Yellow: 1.9-2.0V	FD-5TYG-C	Water clear	20mA each	Green: 3.0-3.4V Yellow: 1.9-2.0V
FD-3WYG-A	Diffused	20mA each	Green: 3.0-3.4V Yellow: 1.9-2.0V	FD-5WYG-C	Diffused	20mA each	Green: 3.0-3.4V Yellow: 1.9-2.0V
Part No.	Lens color	Current(mA)	Voltage( V)	Part No.	Lens color	Current(mA)	Voltage( V)
FD-3TYG-C	Water clear	20mA each	Green: 3.0-3.4V Yellow: 1.9-2.0V	FD-5TBG-A	Water clear	20mA each	Blue: 3.0-3.4V Green: 3.0-3.4V
FD-3WYG-C	Diffused	20mA each	Green: 3.0-3.4V Yellow: 1.9-2.0V	FD-5WBG-A	Diffused	20mA each	Blue: 3.0-3.4V Green: 3.0-3.4V
Part No.	Lens color	Current(mA)	Voltage( V)	Part No.	Lens color	Current(mA)	Voltage( V)
FD-3TBG-A	Water clear	20mA each	Blue: 3.0-3.4V Green: 3.0-3.4V	FD-5TBG-C	Water clear	20mA each	Blue: 3.0-3.4V Green: 3.0-3.4V
FD-3WBG-A	Diffused	20mA each	Blue: 3.0-3.4V Green: 3.0-3.4V	FD-5WBG-C	Diffused	20mA each	Blue: 3.0-3.4V Green: 3.0-3.4V
Part No.	Lens color	Current(mA)	Voltage( V)	Part No.	Lens color	Current(mA)	Voltage( V)
FD-3TBG-C	Water clear	20mA each	Blue: 3.0-3.4V Green: 3.0-3.4V	FD-5TWR-A	Water clear	20mA each	Red: 1.9-2.0V White: 6500K
FD-3WBG-C	Diffused	20mA each	Blue: 3.0-3.4V Green: 3.0-3.4V	FD-5WWR-A	Diffused	20mA each	Red: 1.9-2.0V White: 6500K
Part No.	Lens color	Current(mA)	Voltage( V)	Part No.	Lens color	Current(mA)	Voltage( V)
FD-3TWR-A	Water clear	20mA each	Red: 1.9-2.0V White: 6500K	FD-5TWR-C	Water clear	20mA each	Red: 1.9-2.0V White: 6500K
FD-3WWR-A	Diffused	20mA each	Red: 1.9-2.0V White: 6500K	FD-5WWR-C	Diffused	20mA each	Red: 1.9-2.0V White: 6500K
Part No.	Lens color	Current(mA)	Voltage( V)	Part No.	Lens color	Current(mA)	Voltage( V)
FD-3TWR-C	Water clear	20mA each	Red: 1.9-2.0V White: 6500K	FD-5TWwR-A	Water clear	20mA each	Red: 1.9-2.0V Warm white : 3000K
FD-3WWR-C	Diffused	20mA each	Red: 1.9-2.0V White: 6500K	FD-5WWwR-A	Diffused	20mA each	Red: 1.9-2.0V Warm white : 3000K
Part No.	Lens color	Current(mA)	Voltage( V)	Part No.	Lens color	Current(mA)	Voltage( V)
FD-3TWwR-A	Water clear	20mA each	Red: 1.9-2.0V Warm white : 3000K	FD-5TWwR-C	Water clear	20mA each	Red: 1.9-2.0V Warm white : 3000K
FD-3WWwR-A	Diffused	20mA each	Red: 1.9-2.0V Warm white : 3000K	FD-5WWwR-C	Diffused	20mA each	Red: 1.9-2.0V Warm white : 3000K
Part No.	Lens color	Current(mA)	Voltage( V)
FD-3TWwR-C	Water clear	20mA each	Red: 1.9-2.0V Warm white : 3000K
FD-3WWwR-C	Diffused	20mA each	Red: 1.9-2.0V Warm white : 3000K
