Ukrane advertising modules Ukrane modules with lens Ukrane sign Modules quality assured

Specifications

1) 1/2/3/4pcs leds, 3 chips
2) injection molding
2) with patent,constant current
3) beam angle 152~160 degree
4) CE RoHS

5050 led module with lens 3 chips samsung 2835 / 5630 / 5730 / good price led modules hot selling led modules 0.72w smd5050 led modules smd2835   md3030 smd5050 LED Modules high power led modules 3W 9w 12w 15w SMD LED Modules China led modules korea high power rgb led modules nichia waterprrof led modules for ceiling lights injection module with lens samsung led modules  cree led modules

CREE LED Modules 3w ~ 15 watt for sign lighting



What are the details of high power LED module MA653F?

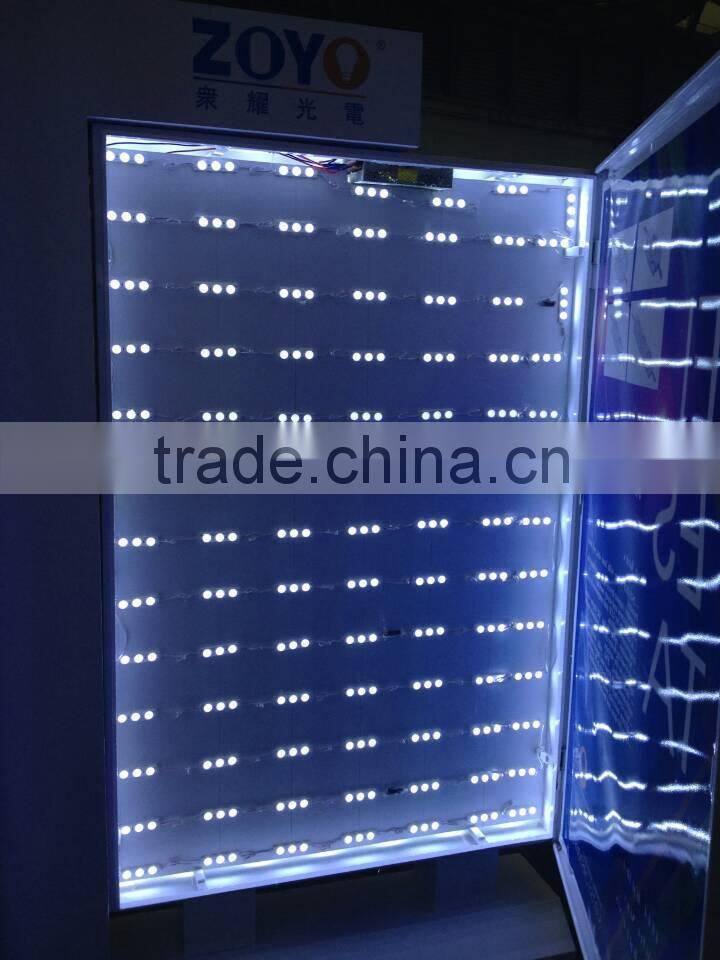

Backlighting

No.	Items	Parameters
1.	Product No.	MA823F
2	Size	82*15*7.2mm
3	LED	SMD2835*3pcs
4	Drive type	Constant current driving
5	Input voltage	DC12V
6	Input Current	0.125A
7	Power	1.5W
8	Luminous Flux	155 lm
9	Color Temperature	15000K/ 6000K/ 3000K
10	Beam angle	152 degree
11	IP rate	IP65
12	Structure & material	Pure Aluminum PCB, ABS/ PVC process, PMMA optic lens
13	Warranty	3 years warranty
14	Quick Delievery	1-7days
15	Certificate	CE(EMC+LVD) & ROHS
16	Working temperature	-40~+60°C
17	Stock temperature	-50~+60°C
18	Wire distance	244mm
19	QTY. /Square meter	25pcs
20	Application	advertising signs / channel letters / light boxes, and etc..
21	Other	ODM service available

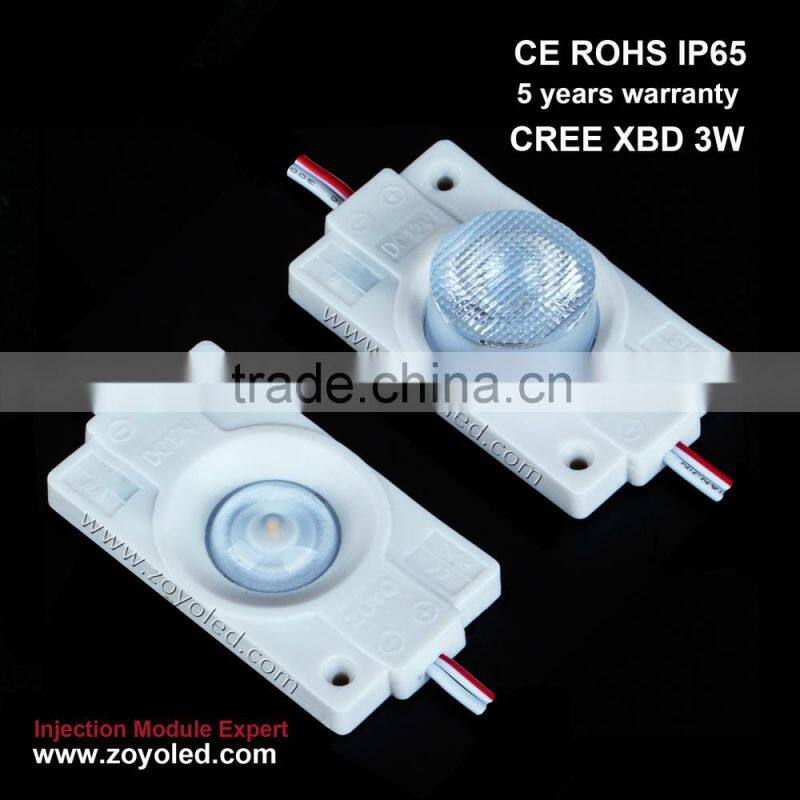

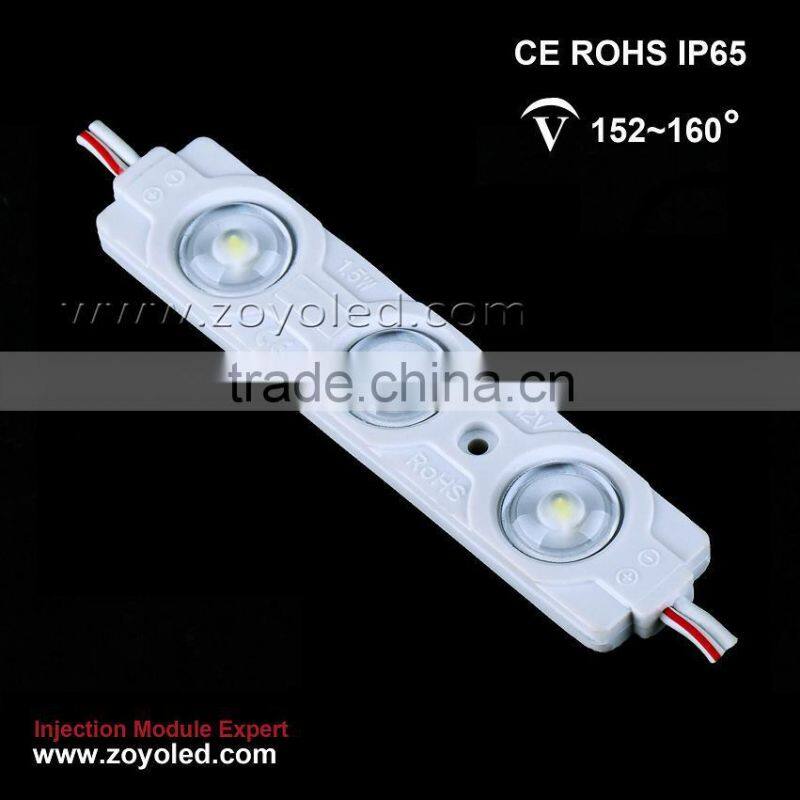

Product Photo:

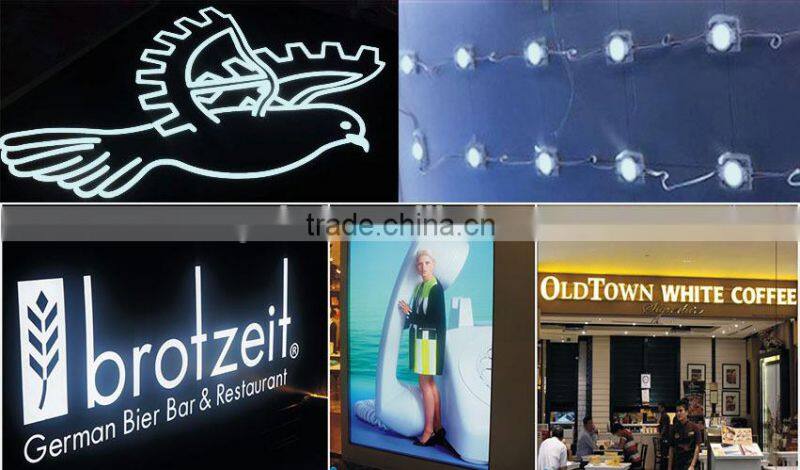

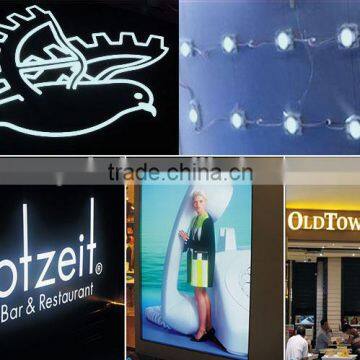

Applications & Installation:

1.As backlight source for signages, channel letters, advertising boards, outdoor or indoor projects.

2.Illuminating ceiling panels in elevator, conforence rooms, shopping mall, and etc..





Packaging, Shipping &Trading Terms:

Packaging:

Shipping:

1.FedEx/DHL/UPS/Russian express/ARAMEX for samples, Door-to-Door.

2.Delivery by customer's own forwarder.

Trading Terms:
T/T, Western Union, PayPal, irrevocable L/C at sight; 30% deposit for starting production.



Why choose us?

1.We are Alibaba Assessed Gold Supplier.

2.We are a factory professional manufacturing Injection molding LED modules with large production capability, ISO9001:2008 quality control system, instant services.

3.We have our own R&D engineers’ team, strong product innovation capabilities.

4.100% Quality assured before shipment.

5. factory direct sales, competitive prices.



 Where do ZOYO LED modules apply for?

1.Advertising signs, LOGO & Channel Letters backlight.

2.Light source for advertising boxes or cabines.

3.Ceiling lighting for elevators.

4.And etc..

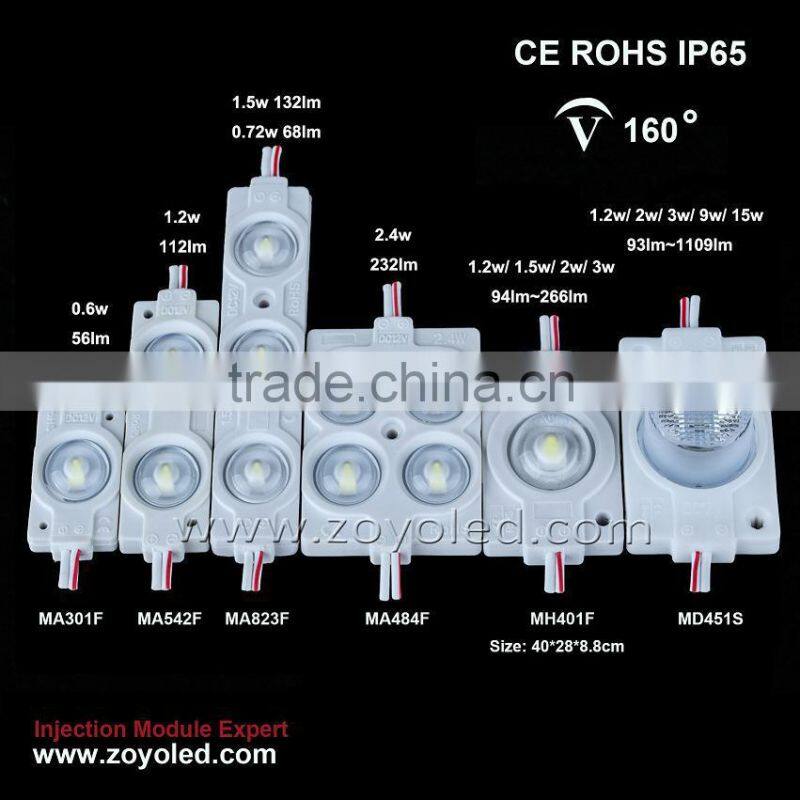

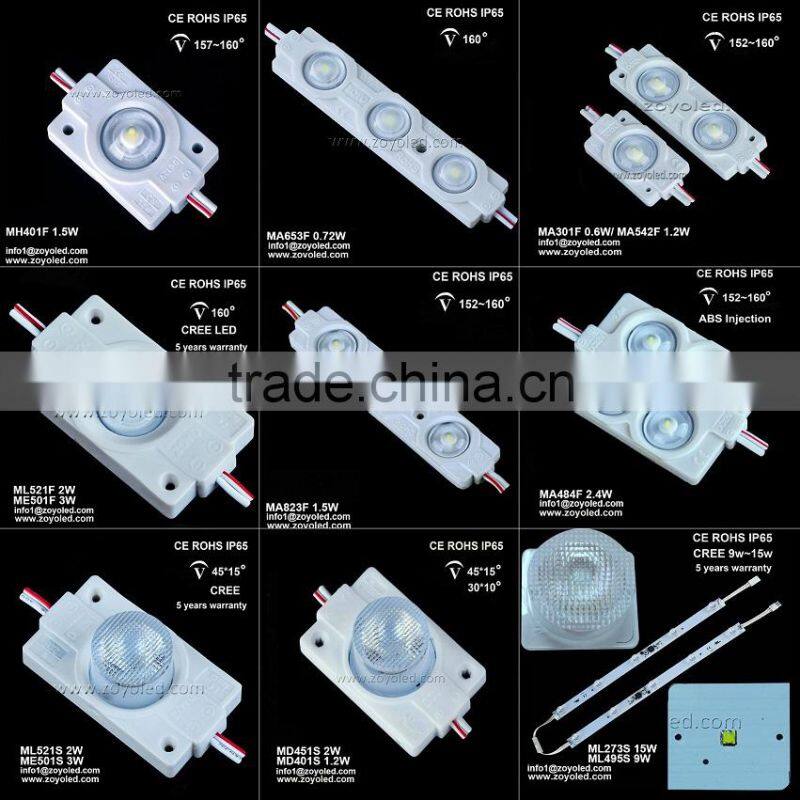

What are the most popular LED modules and popular color tempreture?

Product Name	Items	Power	Color Tempreture	Size	Remark
Bee Series	MA221B	0.36w	15000K/6000K/3000K	22*10*4.8mm	Backlit
Bee Series	MA743B	0.6w	15000K/6000K/3000K	74*12*4.8mm	Backlit
Bee Series	MA743C	1.2w	15000K/6000K/3000K	74*12*4.8mm	Backlit
Tiger Series	MA301F	0.6w	15000K/6000K/3000K	30*18*6.4mm	Backlit
Tiger Series	MA542F	1.2w	15000K/6000K/3000K	54*18*6.4mm	Backlit
Tiger Series	MA653F	0.72w	15000K/6000K/3000K	65*14.5*4.8	Backlit
Tiger Series	MA823F	1.5w	15000K/6000K/3000K	82*18*7.2mm	Backlit
Tiger Series	MA484F	2w	15000K/6000K/3000K	48*36*6.4mm	Backlit
Loong Series	MD451F	2w	6000K/3000K	45*30*8.8mm	Backlit
Loong Series	MH401F/MD401F	1.5w	9000K	40*28*7.4mm	Backlit
		1.2w	9000K/6000K/3000K
CREE XBD LED	ML521F	2w/3w	6000K/3000K	52*28*7.4mm	Backlit
Eagle Series	MD401S	1.2w	6000K/3000K	40*35*15mm	Edge light
Eagle Series	MD451S	2w	6000K/3000K	45*35*15mm	Edge light
CREE XBD LED	ML521S	2w/3w	6000K/3000K	52*35*15mm	Edge light
CREE XBD LED	ML273S	9w	6000K/3000K	273*26*15mm	Edge light
CREE XBD LED	ML495S	15w	6000K/3000K	495*26*15mm	Edge light

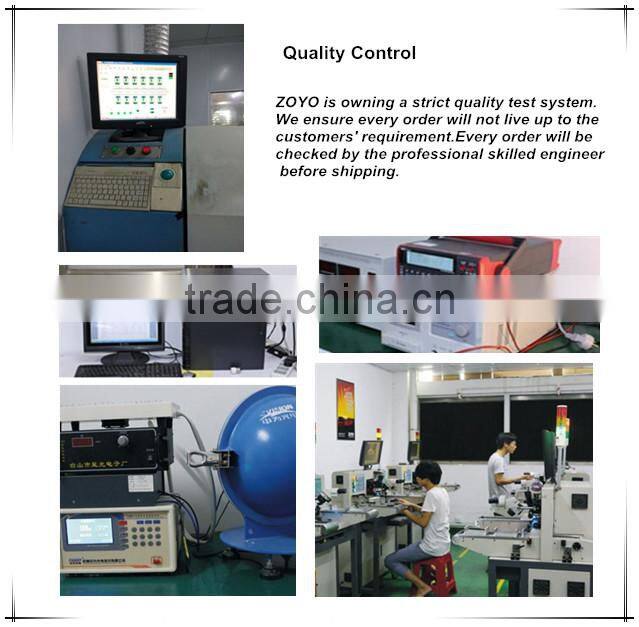

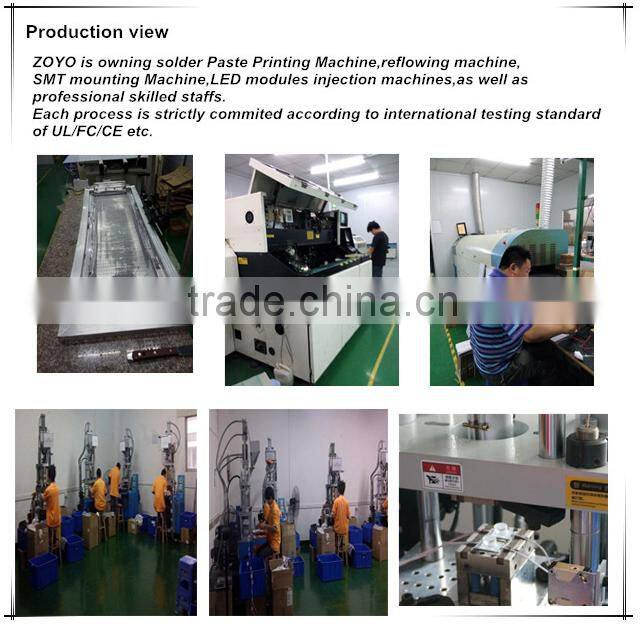

Company View:

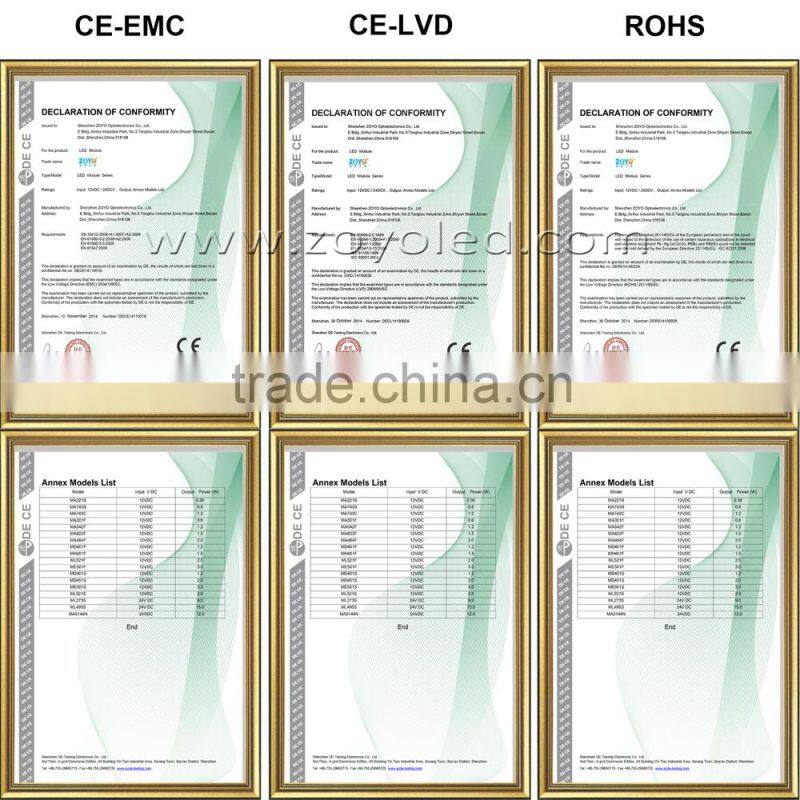

CE(EMC+LVD) & ROHS certificates:



Our Exhibitions:



FAQs:

Q1: Can I get some free samples for testing?

A1: Yes, free samples are available for your test, with freight collect or prepaid by Paypal or Western Union.



Q2: How can I test ZOYO LED modules?

A1: Connect the wire of modules to your own power supply whose output voltage should be DC12V or DC24V.If you do not have such a power supply, please ask us to provide with samples. Meanwhile, pls kindly note the +/- marks on the wire and connect to the +/- pole of power supply correctly.



Q3: What are the advantages of constant current circuit driving LED modules?

A3: Constant current driving ensures full string of 20pcs working in same brightness and stably working, also greatly benefits the fluctuating power efficiency and maintain longer lifespan of LEDs.



Q4: Do you also sell power supplies or extra connectors for ZOYO LED modules?

A4: Yes. But please make sure the power supply should allow some capacity to protect itself and modules with 20%~30% capacity unused, i.e. Power Input is 20%~30% more than the exact power consumption of modules connected to it.



Q5: What is the max quantity of one string?

A5: Normally we suggest max 20pcs a string, then connect to a power supply directly. Meanwhile, if you really need more quantity of a string, please contact us to check the possibility.



Q6: Are ZOYO LED modules dimmable?

A6: Most of our LED modules are non-dimming. As constant current driving circuit not allow the voltage trough leds varying. But we can do whatever you request based on MOQ no less than 10,000pcs. By the way, RGB modules are only available with ODM service at present.



Q7: Can I install the high power LED modules into outdoor advertising boards or use in opening conditions directly?

A7: Our modules’ protection level is IP65, are suitable to be used in outdoor lights boxes, channel letters or carbines, but we suggest better not to be exposed to opening conditions avoid damages.



Q8: Do you accept OEM or ODM service?

A8: Yes. Lead time for ODM sample is around 3 days and for bulk order needs around 3 weeks.



Q9: Is there any cheap shipping method importing to our country?

A9: For small orders, express will be best; for bulk orders, shipment by sea is the cheapest way but takes longer time.

For urgent orders, we suggest DHL or Fedex IP with door to door service.

Kindly be assured we will always check the best shipping way for you.



Q10: Can we get a good price for your high power injection LED modules, as we are selling low power modules mostly at present?

A10: You can inform us your own present market demands, we can help you to learn more advantages of high power, such as lower cost for one square meter, lower installing charge, bright enough for thicker structures, and so on. Regard prices, we offer discounts based on order quantity.



Q11: Can you tell me the differences of ZOYO LED modules with optical lens and without?

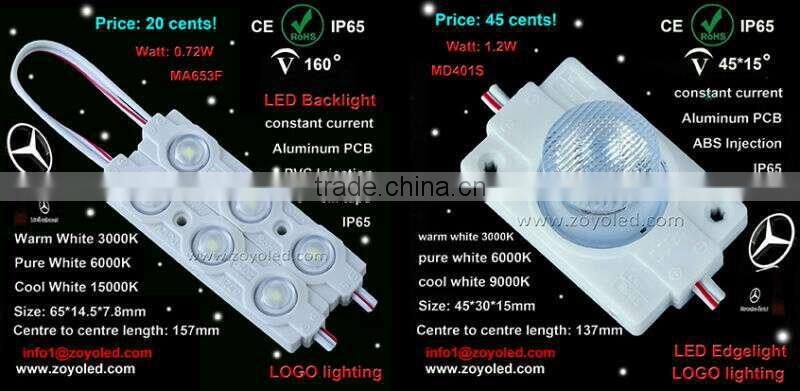

A11: Kindly note the truth optic lens occurs is to avoid brighter dots and to get evenly light effect of high power LED modules. It's unnecessary to use lens for low power LED modules such as 0.24w, 0.48w, 0.72w. If evenly light needed our 0.72w MA653F with 3 lens, 160 degree angle with promotion prices US$0.2 can meet demands of thin light boxes of 30mm to 100mm depth economically. Additionally, as LED modules would be the perfect light sources for advertising signs, high power modules with lens are suitable for various applications.



Q12: What's the differences between 3M and fake 3M double adhisive tape?

A12: For the details, please contact Ms. Monkoon to Email: info1 at or via Skype/WeChat/Whatsapp: monkoonjou.



Q13: What is the warranty for your injection LED modules with lens?

A13: We offer 3 years' warranty for Samsung, Epistar or Sanan LED injection modules with lens, 5 years warranty for Cree or Osram LED. If any product problems occurred during warranty, we take responsibility to send you replacements immediately.



How to contact us?

Contact via Trade Manager ID: cn1511651355 or write down your inquiry in the below blank column, and click "Send" now! Free samples are waiting for you.



Finally, hope ZOYO LED and bellow Monkoon Jou have the honor to support you well in future!
