Bedding Covering Equipment (SL-CV-B2)

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Jiangmen Waihai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	Softlife	Model Number	SL-CV-B2
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

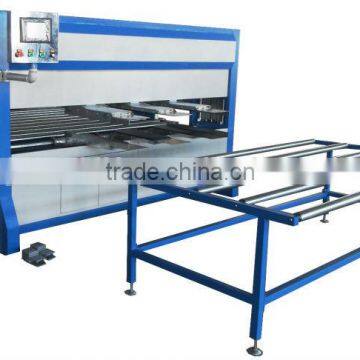

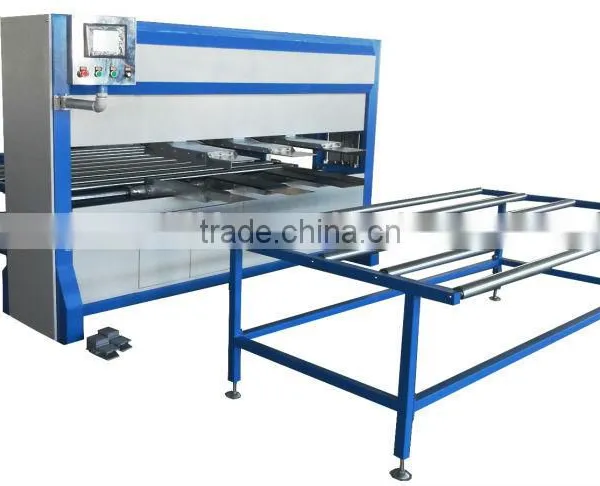

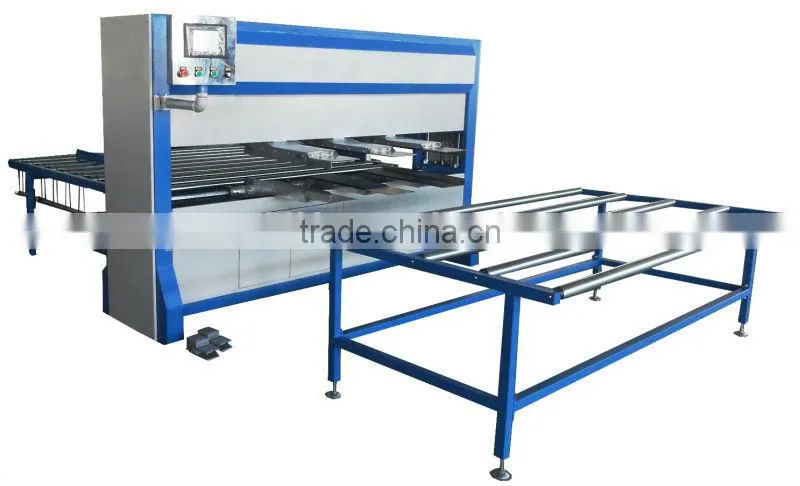

SL-CV-B2 Mattress Covering Machine

SL-CV-B2 is used for filling the cover of foam mattress and covering other similar mattress products by plastic.

Adopted mode of belt conveyor, combined with the input table with motor and the output table without motor to finish the covering process. Both height adjustment and width adjustment are adopted electrical control, and also with the guide device driven by cylinders to make the covering mattress straight on the input table, make sure the mattress can be conveyed into the conveyor belts and cantilever arms straightly and smoothly.

The operation of this machine is very simple because of the advanced programmable logical controller and the touch panel. This machine takes the advantages below: stable performance, easy operation, smooth conveying, steady running, high efficiency, low noise and so on.

Technical Specification:

Model	SL-CV-B2
Main body size	2760(L)1170(W)1690(H)(mm)
Input table size	2360(L)2000(W)800(H)(mm)
Output table size	2360(L)1200(W)735(H)(mm)
Mattress thickness	100-380(mm)
Mattress width	930-1900(mm)
Arm length	430mm
Filling speed	20m/min
Total weight	About 1500 kg
Efficiency	2 sheets/min
Total power	3.4 KW
Air pressure	0.6MPa
