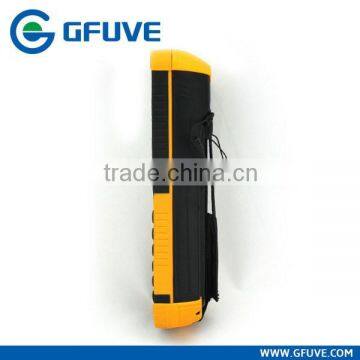

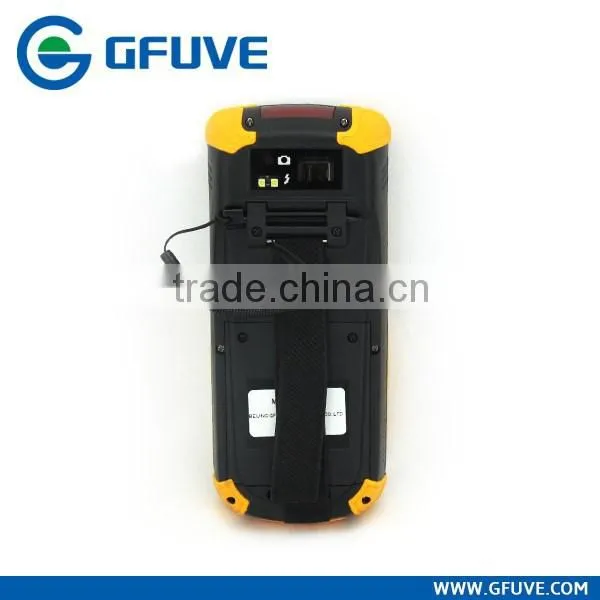

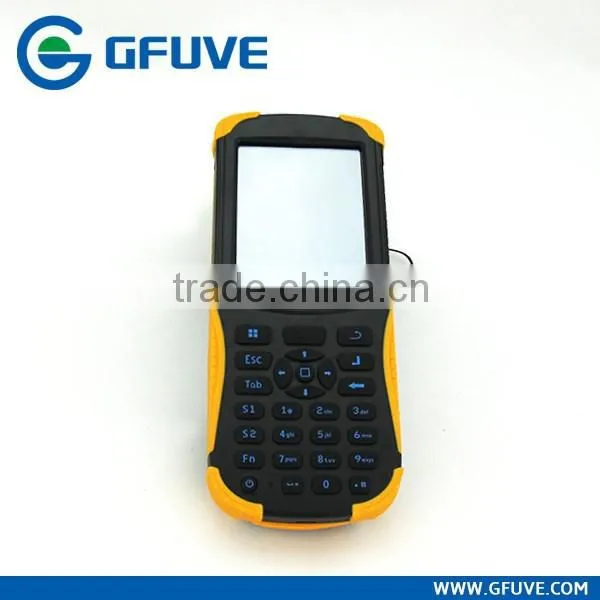

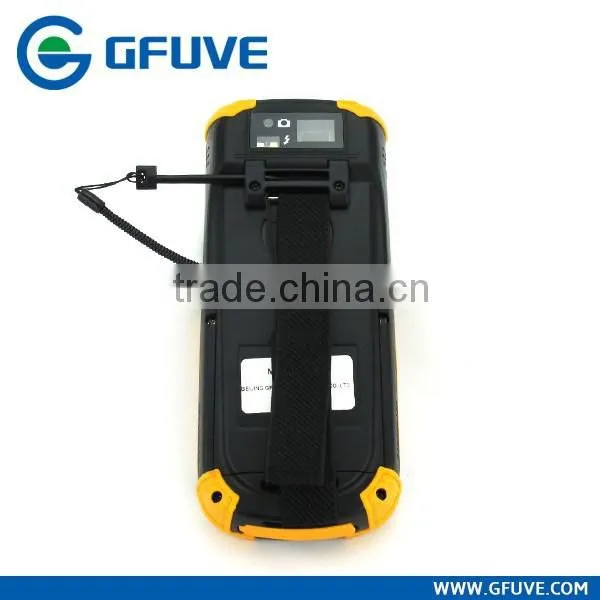

GF2000 WiFi pda barcode scanner android

Characteristics

CPU

ARM11 1G Hz

Memory

2G

Operating system

Android 4.0

Communication

USB2.0, 38K Infrared (Can transfer as far as 12 m.)

External dimension

200(l)*60(w)*50(h) mm

Weight

includes standardbattery320 g

Display screen

3.5-inch touch screen, 640 *480 dots

Keyboard

25Silicone Keyboard

Battery

Rechargeable battery2000mA/7.2

Expansion Slots

MICRO SD card

SIM card slot

2 slots

Audio

High-volume speakers

Camera

300pixels, LE D flashlight

Operating environment

Working temperature     -20℃to 50℃

Storage temperature

-25℃ to 70℃

Humidity:

5%RH - 95%RH(o condensation)

Drop Specifications

6 surfaces can withstand drops from 1.5 meters to concrete impact

Scroll to specifications

1,000 times 0.5 meters, six rolling contact surface

Sealed environment

IP64

E-Tag RF13.56mhz

Supported Standards:EPC Gen 1 (0kind,1kind)and Gen 2

(Optional)

Low working frequency:125kHz

Tabdomining :EM 125KHz

Working frequency of high frequency:13.56MHz

protocol standard:ISO14443A/B,IS015693,

Nominal read range:5.0cm to 10cm

Rated write scope:5.0cm to 10cm

Range:From the front of the device from the 70 ° angle (according to the band)

Barcode Reader

(Optional)

Optical Resolution: 0.005 inches minimum bar width

Rotation angle: vertical deviation angle + / -30

Tilt angle: the angle from normal + / -65 °

Offset visual tolerance: deviation from the normal angle of + / -60 °

Ambient light: Sunlight: 8,000 ft. candles (86,112 Lux)

Artificial light:450ft.candles(4,844Lux)

Scanning Frequency: 50 scans per second (+ / -6) times (two-way)

Scan Angle: 46.5 ° (standard)

Laser power: 1.0 ma (standard)

Reading accuracy:Laser greater than 6 mil

Laser Safety: IEC2/ FDA Ⅱ grade, standards compliance IEC60825-1/EN60825-1

Camera Supported for 2D barcode Read

GPS

Accuracy of 3 m

Wireless Communications

(Optional)

GSM/GPRS/EDGE:

GSM850/EGSM900/DCS1800/PCS1900

WCDMA/HSDPA:2100M(band I),1900M(band II),850M(band V)CDMA2000

Wireless Module           (Optional) Customized

IRDA

RF

HF

UHF
