Home > Products > Cylindrical lens > Bi-Convex Cylindrical Lenses double convex cylindrical lens
Bi-Convex Cylindrical Lenses double convex cylindrical lens
USD $12 - $40
/ Piece
5 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- Changchun Beijing Shenzhen Shanghai
- Credit Card
You May Like
-
BK7 Rod Lenses, Optical Cylindrical Rod Lens, Endoscope Lens
-
Customized Optical 940nm Narrow Bandpass Filters
-
780nm, 808nm,830nm FWHM 10nm IR Narrow Band Pass Filters
-
Optical IR Cut Narrow Band Pass Filter for Barcode Scanner, 850/910/940nm
-
650nm Narrow Band Pass Filter for Barcode Scanner Measurement Alignment
-
Near Infrared Narrow Bandpass Filter(850nm,940nm)
Product Details
| Place of Origin | Jilin, China | Brand Name | CCRQ | |
| Model Number | CCRQ-DCX | Material | Other, Glass, BK7,Fused Quartz,Sapphire,CaF2 | |
| Usage | Optical | Structure | Double Convex | |
| Shape | Plano |
Product Description

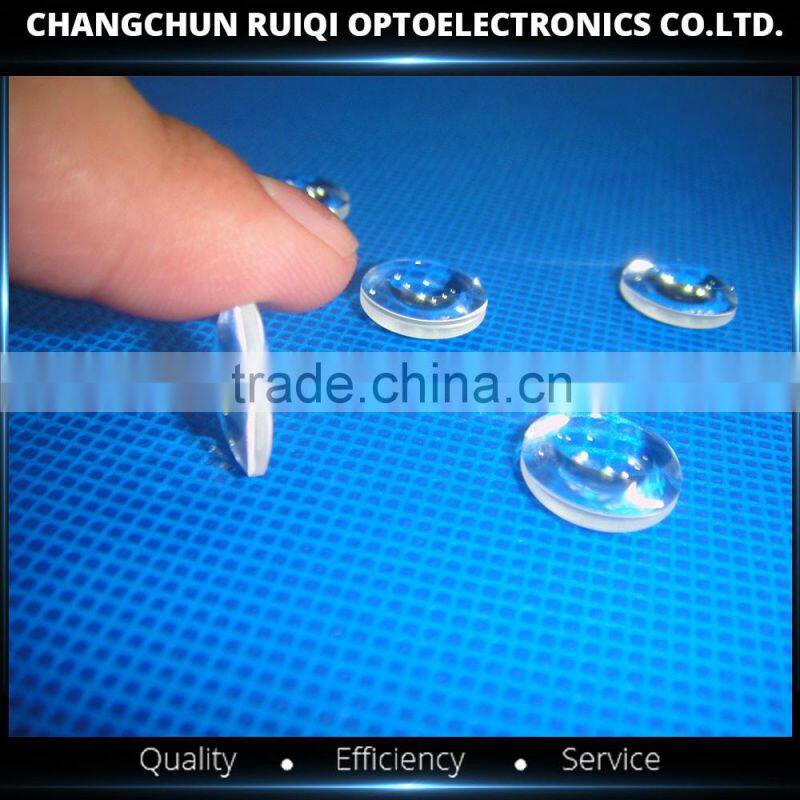

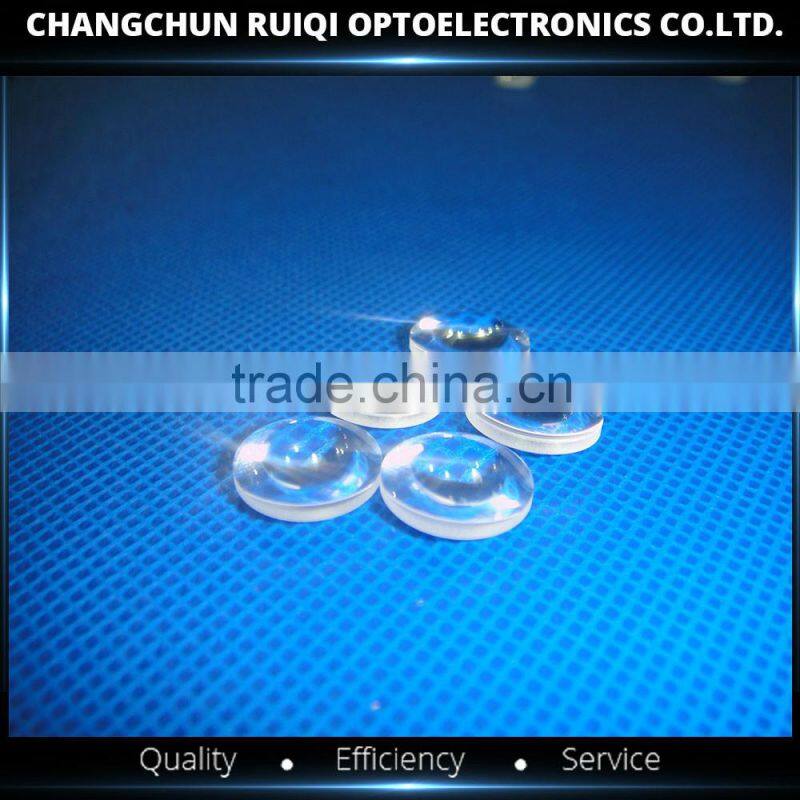

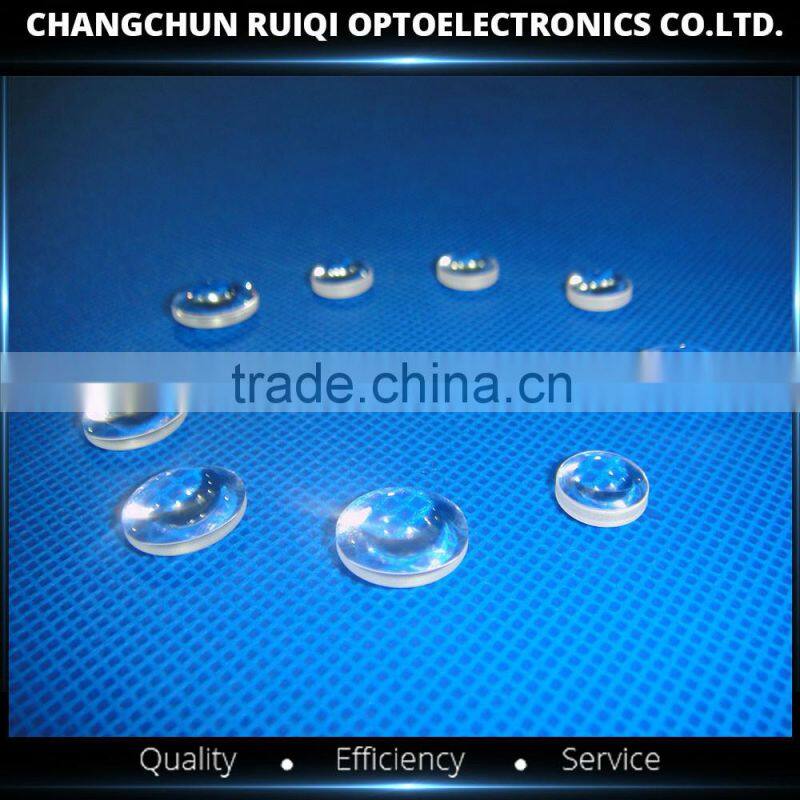

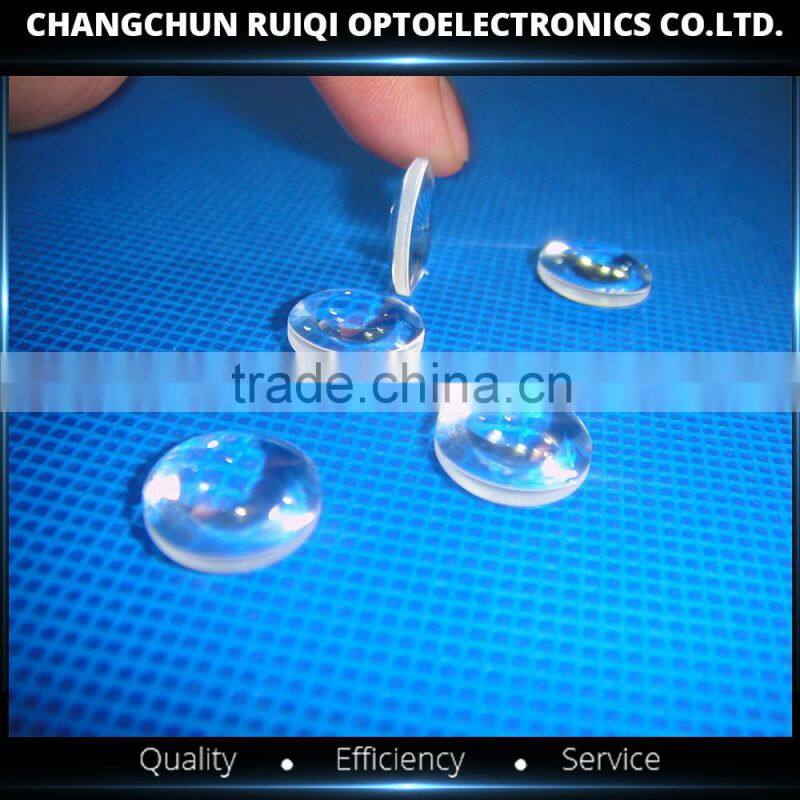

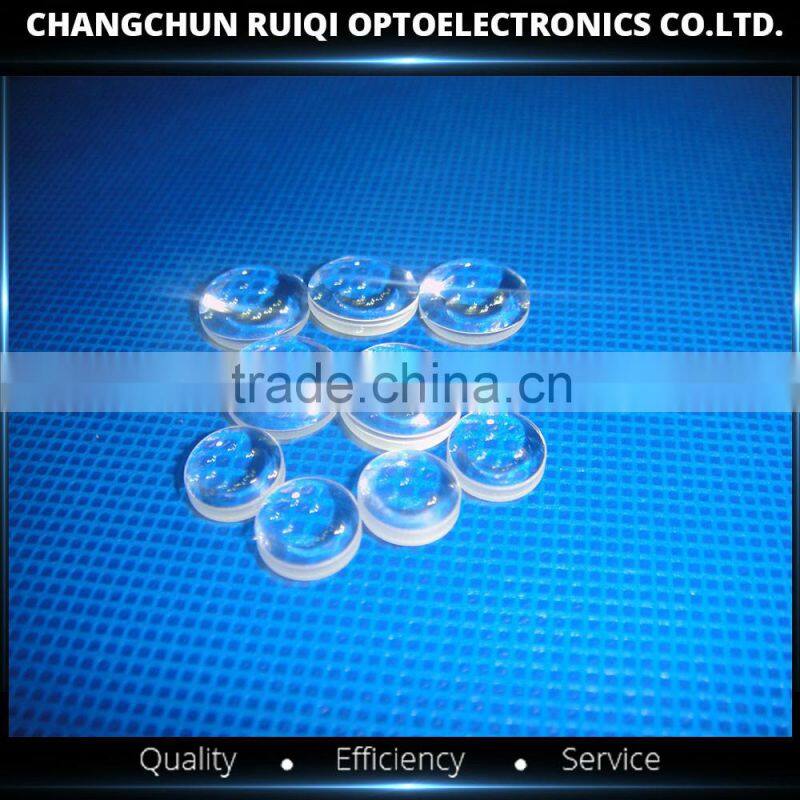

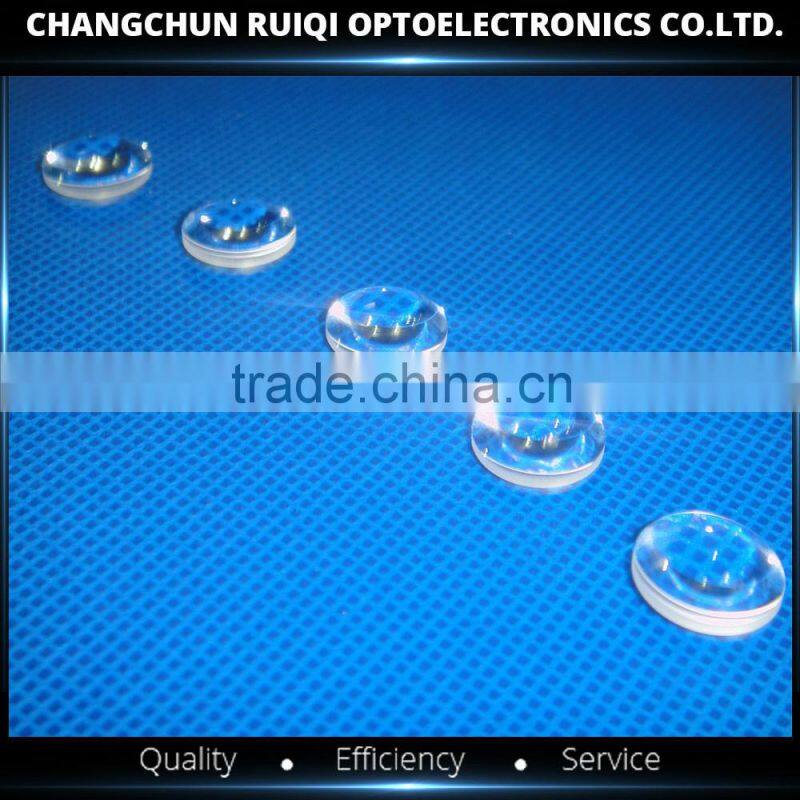

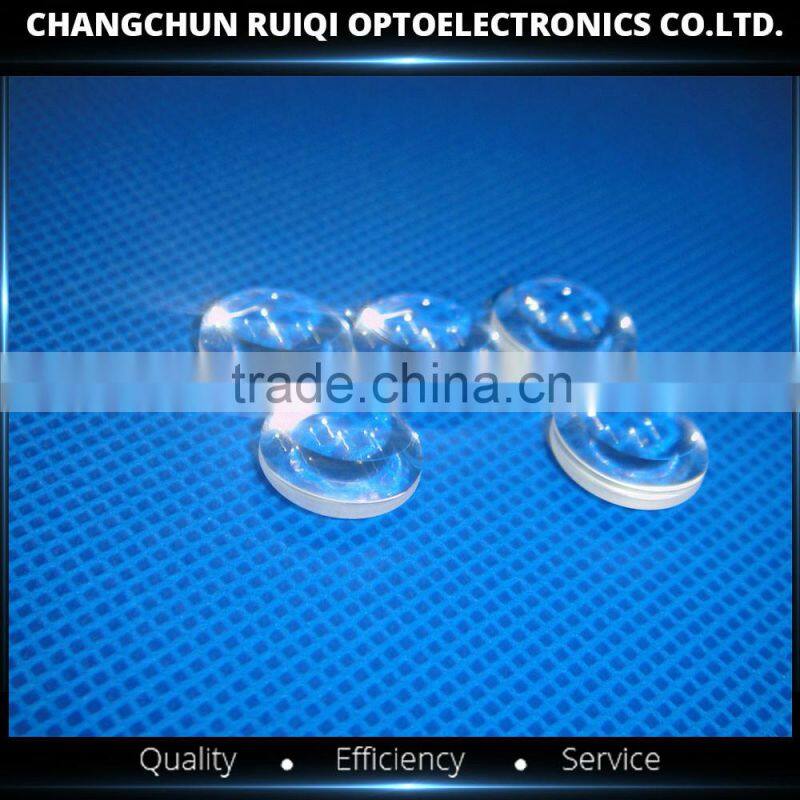

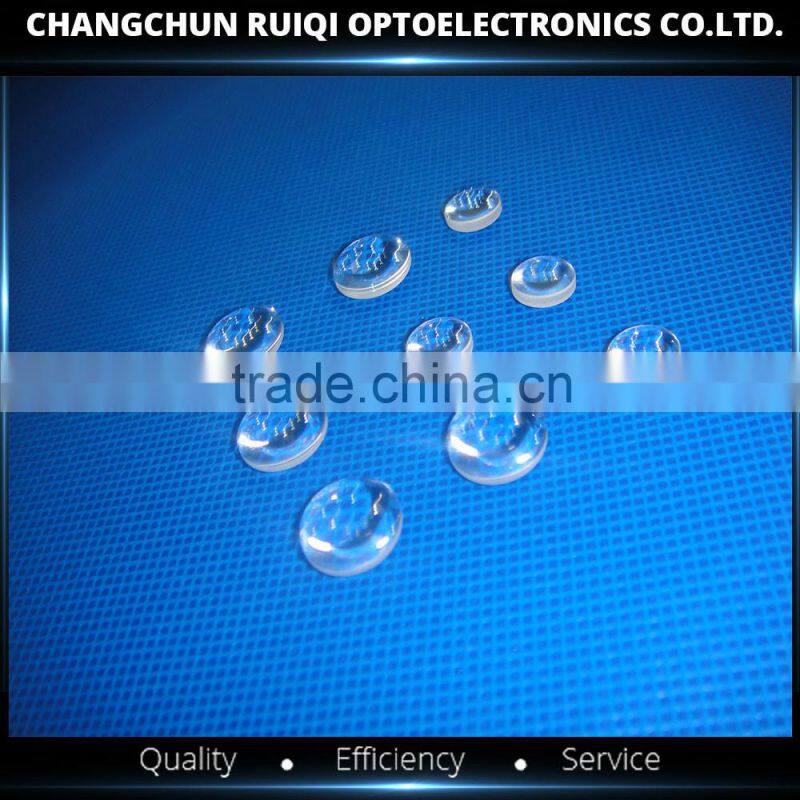

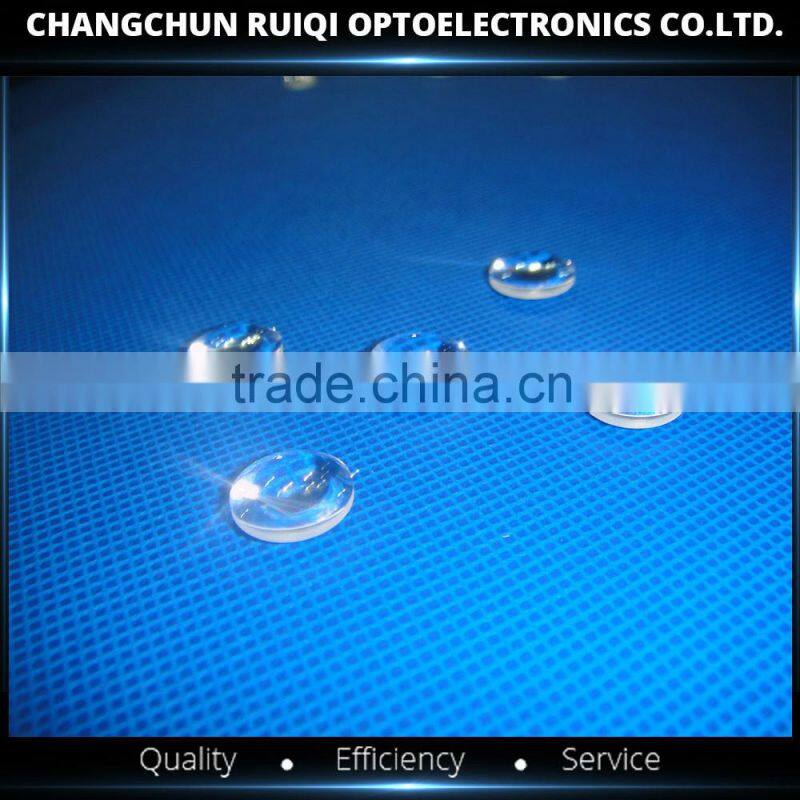

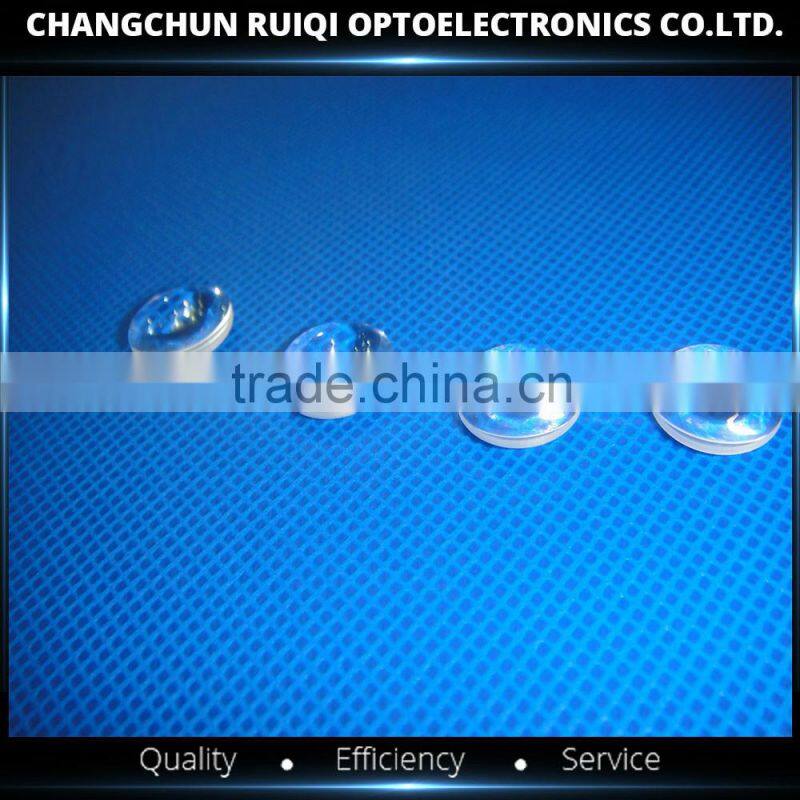

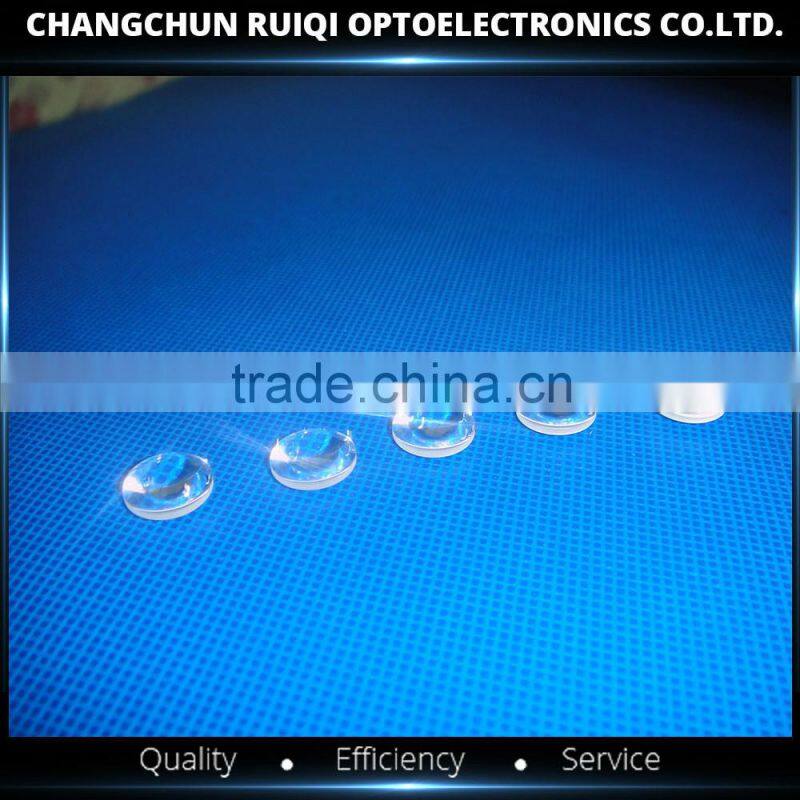

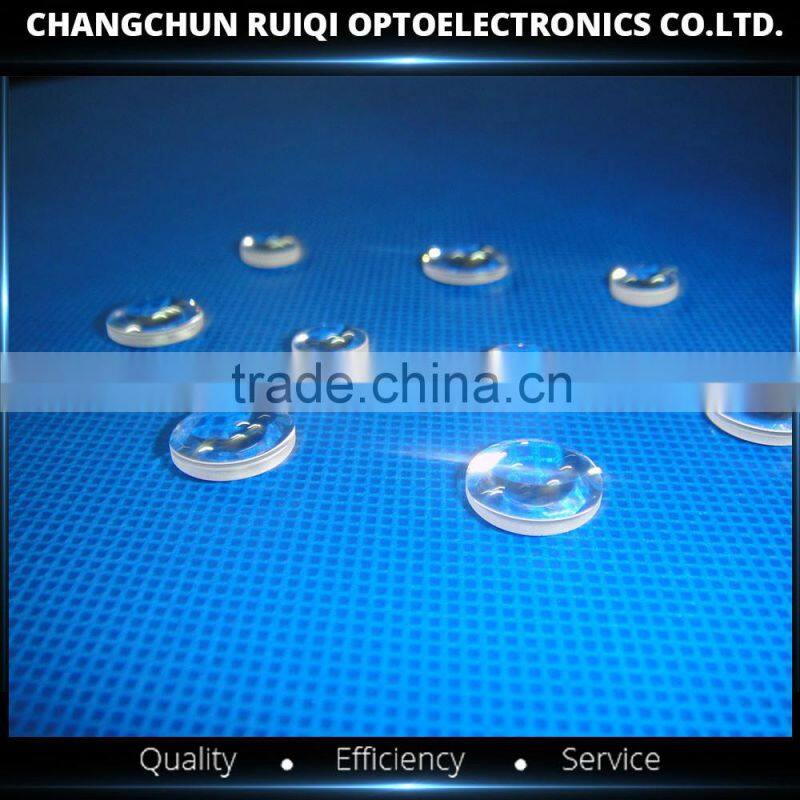

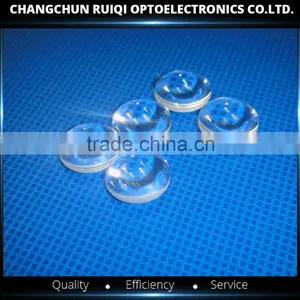

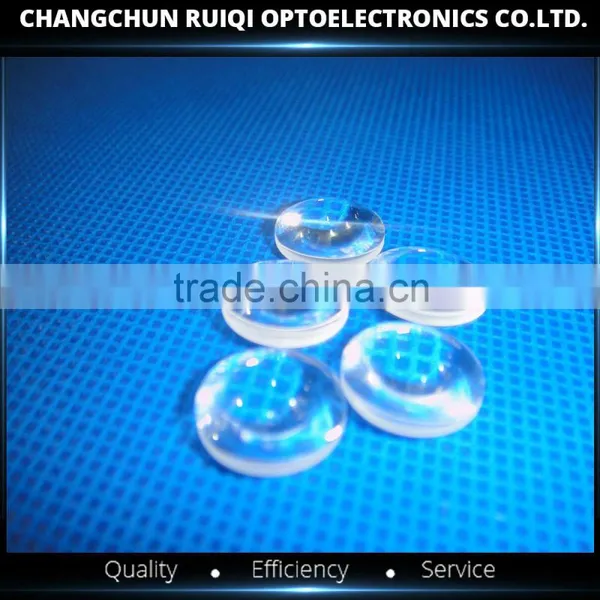

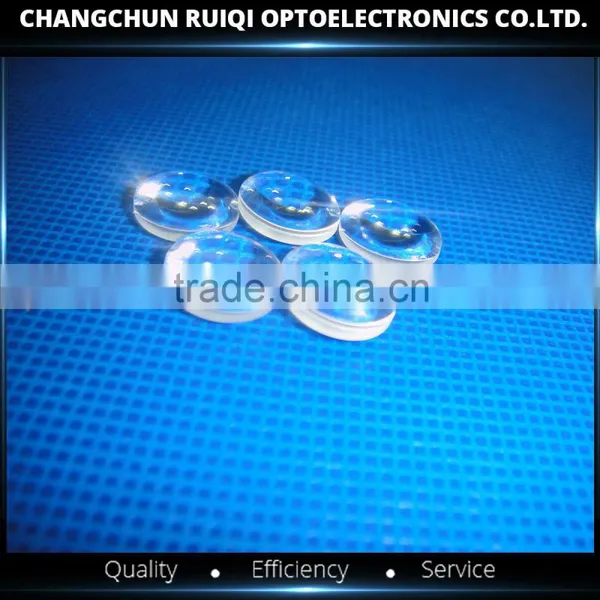

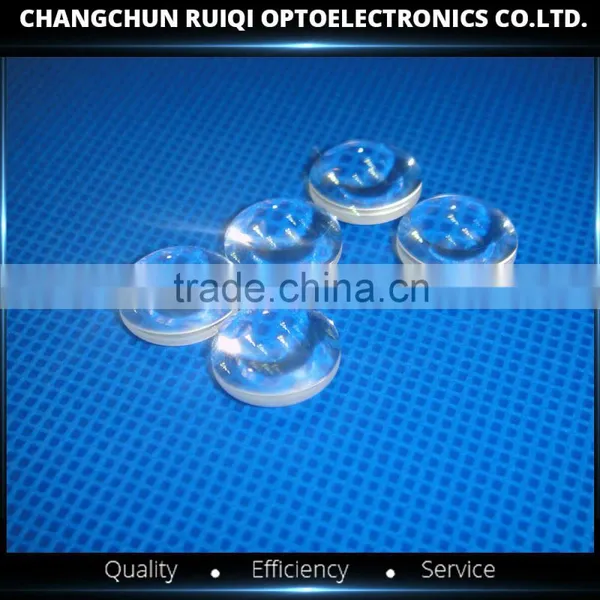

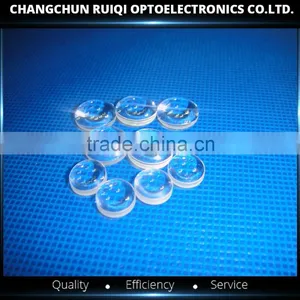

Bi-Convex Cylindrical Lenses double convex cylindrical lens
Double-Convex (DCX) Lenses are lenses which have two outward curved surfaces. Double-Convex Lenses have a positive focal length (FL) and will act as a magnifying or condensing lens.
Changchun Ruiqi manufactures Double-convex lenses from S1-UV Grade Fused Silica, G1 Fused Quartz, Commercial Grade,Sapphire,CaF2,MgF2 and BK7 Optical Glass. Every optic is pitch polished, providing good surface quality and an exceptional low-cost imaging performance with a variety of light sources.
.
Technical Specifications:
| Material | BK7,Fused Silica,Sapphire |
| Dimension | 5-300mm circular |
| Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
| Centration | <3' |
| Surface Quality | 60/40 |
| Flatness | lambda/4 per 25nm at 632.8nm |
| Focal length | +/-3% |
| Edge | Fine ground and beveled |
| Coating | Anti-Reflective (AR) Coatings,Single layer MgF2 coating,Multilayer Broadband AR Coating |
