Electric Wire Line Finder Tracker MS6812 Mastech Network Telephone Cable Tester

Specifications

Mastech MS6812 Multipurpose Cable Tracker & Tester

Brief Description

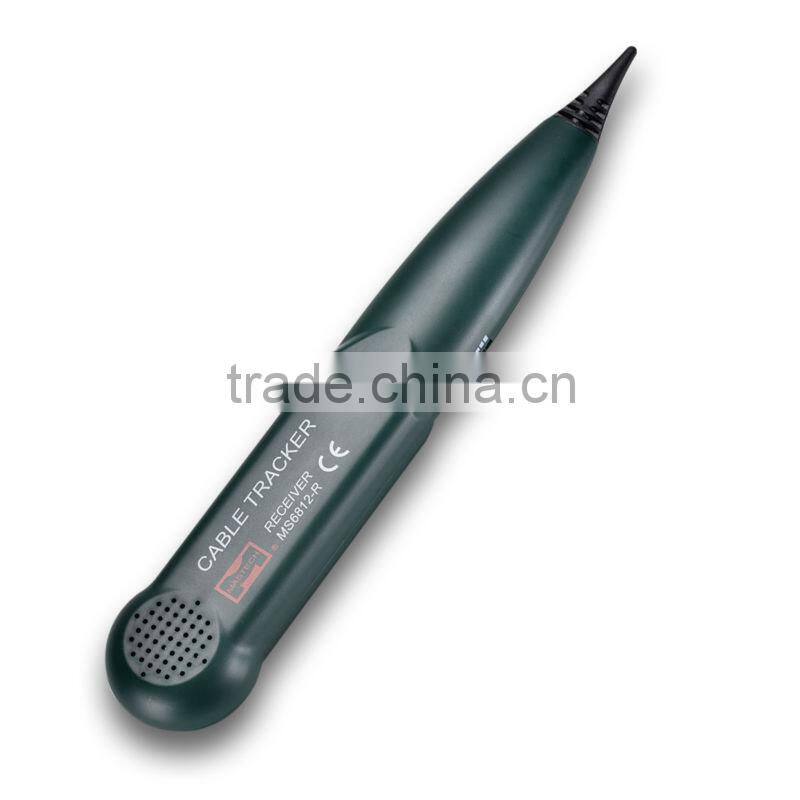

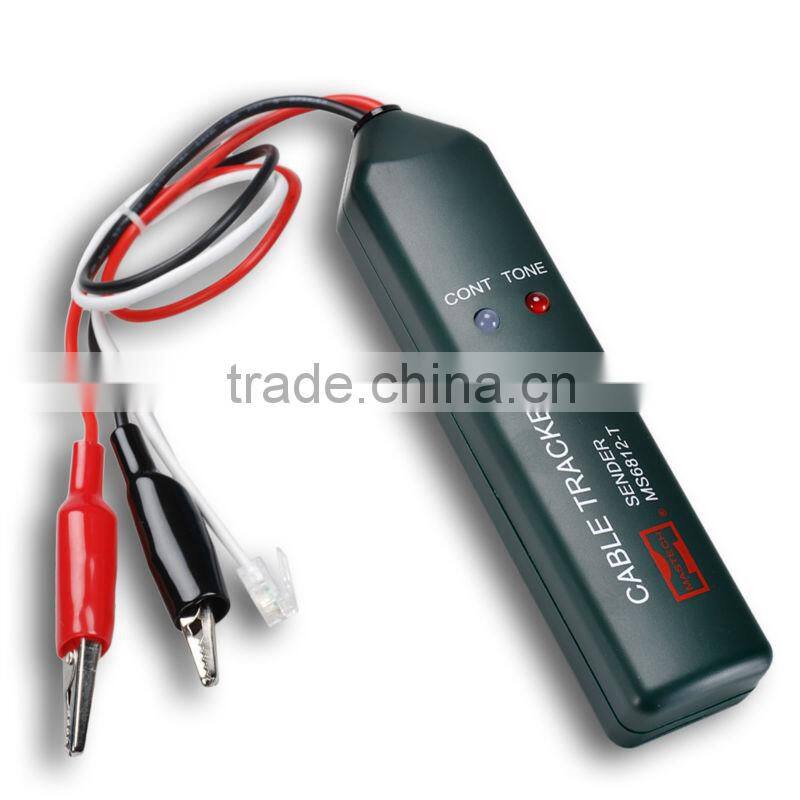

This Cable Tracker (MS6812) is manufactured by MASTECH which is one of the largest and most well-known manufacturers of high quality electronic measuring instruments. It is designed for tracking of various commonly used cable and wire without damaging the insulation. The tracker set composed of a sender and a receiver and the pair allows us to find target wire among plenty rapidly and accurately. The receiver has both sound and LED signal indicators. By comparing the volume of the sound, you can find the target wire with the highest volume.



Moreover, this tracker set can also be used to test continuity of cable or wires, diagnose the break point and identify the status of working telephone line (clear, ring, busy). It is an ideal tool for technicians in installation and maintenance of communication line systems and comprehensive wiring circuits. It is widely applicable to telephone systems and other metal wire circuit and fields. With this set, only one person is enough to complete cable continuity check.





Features



• Rapidly trace the target wire among plenty of wires
• Quick continuity test of cables and wires
• Easy diagnosis of break point of cable and wires
• Identify the status of working telephone line (clear, ring, busy)
• Sound and LED signal indicators
• Adjustable volume of sound signal
• Earphone can be used for noisy environments (earphone not included)



Specifications



• Sound signal frequency: 1.5kHz
• Receiving frequency range: 100~300kHz

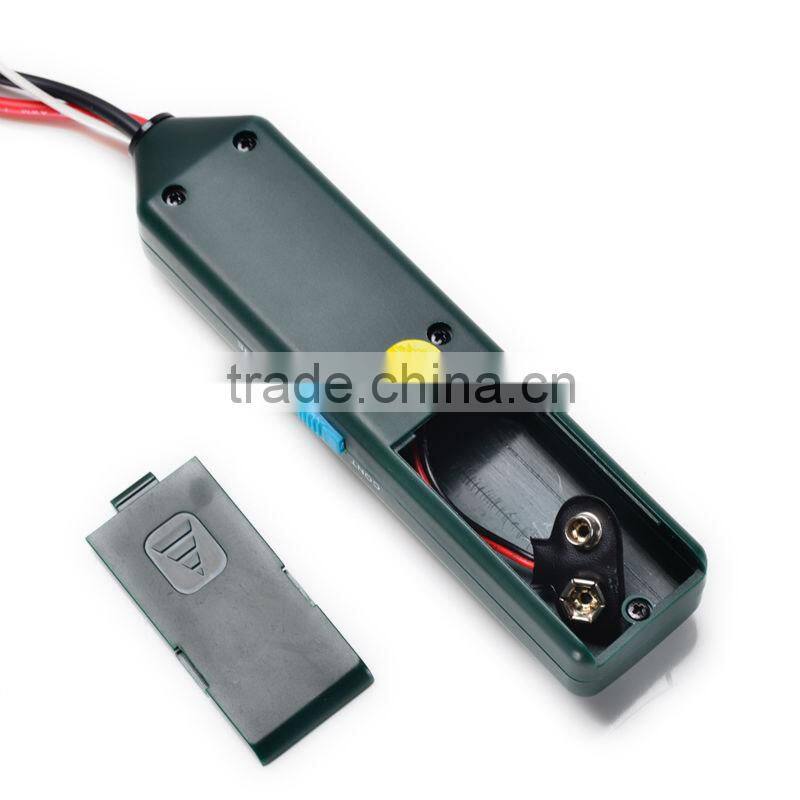

• Power supply: DC, 2 x 9V battery (Included)
• Battery life: 50 hours continuously
• Item size:
• Sender: approx. 145 x 35 x 25 mm (5.71' x 1.38' x 0.98'inch)

• Receiver: approx. 238 x 43 x 26 mm (9.37' x 1.69' x 1.02'inch)

• Item Weight:

• Sender: approx. 114g (including battery)
• Receiver: approx. 106g (including battery)

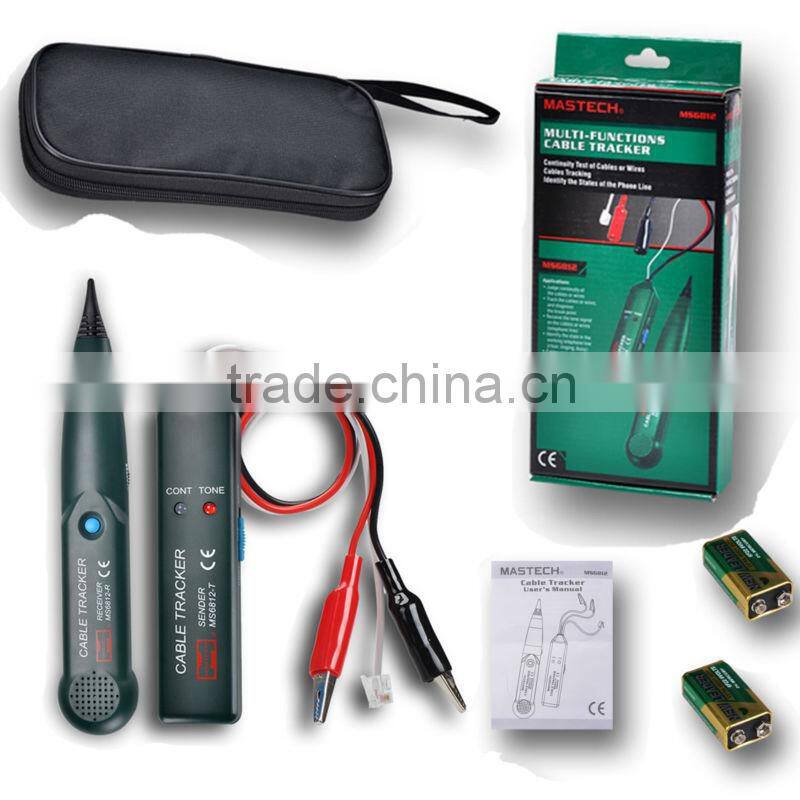

One Set Included



• 1 x Sender
• 1 x Receiver
• 2 x 9V Battery

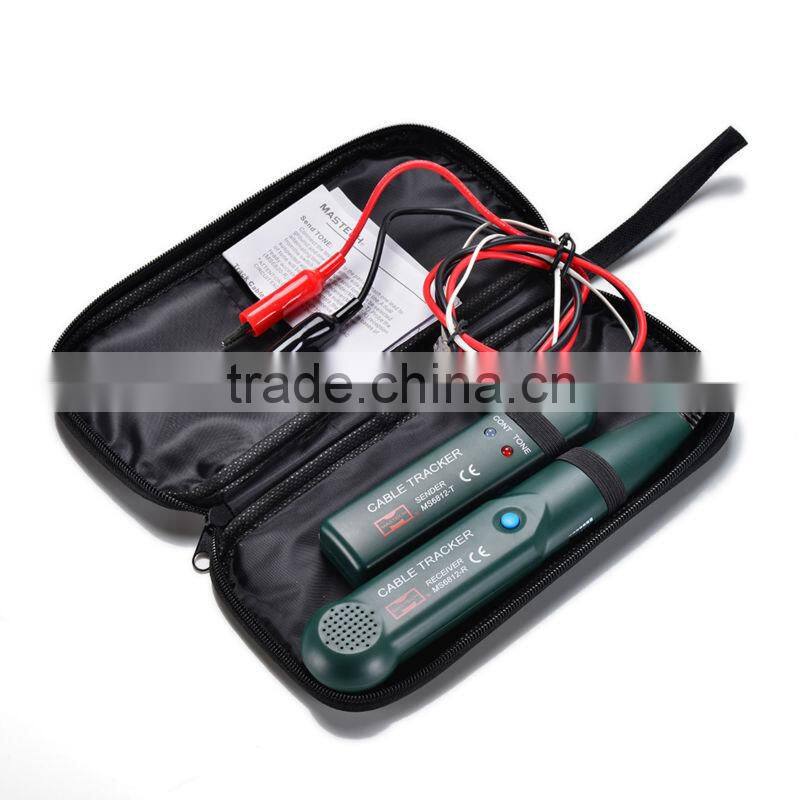

• 1 x Black Carrying Bag
• 1 x Instruction Manual
• Standard Factory Package
