Features For 2015 latest 720p 960p 1080p 4ch 8ch 16ch ahd dvr
l HD iDVR Three in one: combines the function of DVR/HVR/NVR together, multi-mode input, support 8ch analog+network HD video hybrid input support full HD network video input.
l step on the internet:can penetrate through all kinds of network via cloud service, to do remote control easily&conveniently without any complicate setting.
l Compression algorithm ideal:Compression algorithm upgraded to H.264 main profile,the advance space-time filter technique make the code stream lower at least 30% .
l playback quality:real-time coding synchronously, real-time multi-channel playback synchronously.
l Main and Sub Stream:support main stream and extra steam encode synchronously.Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
l Mobile monitor:support all kinds of mobile monitor (iPhone, Android)
l Display: support VGA&HDMI output synchronously which support 1080P hd output, make the traditional monitor display effect upside down.
l Operation interface:similar WINDOWS operating style,powerful right button menu function of mouse, make it easy for using.
l Network:Powerful net service(support DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAILl,IP , etc),complete enclosure(WEB,CMS,SDK),to easily achieve interconnection.
l Browsers:Support multi-browser(IE,Chrome,Firefox,Safari).
l Remote Access:Self enclosed with DNS function (ARSP),one-key to enable remote control, and support DNS of 3322,dyndns,oray,myq-see, etc.
l Others:Completed protective circuit, unique treble watchdog function, make device never crashed; special “black-box” technology to monitor the device process, greatly reduce the maintenance cost.
Specifications for 2015 latest 720p 960p 1080p 4ch 8ch 16ch ahd dvr
System | Main processor | Chip: Hi3531 AVR-7608HM |
Operating system | Embedded LINUX system | |
Video | Video Standard | PAL(625 lines,50fps);NTSC(525 lines,60fps) |
Encode and decode capability | Encode:8AHD-H@15fps decode:4AHD-H@15fps | |
Multi-mode input
| Analog:1080P*8(15fps);720P*8(25fps) Mixing:8*720P(analog)+ 8*720P(ip)Or 2 AHD-H(analog)+2 1080P(ip) Pure network:1*1080P+8*720P | |
Motion Detection | Each screen can be set to 192 (16 × 12) detection areas; multi-level sensitivity can be set | |
Video playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Local playback | Maximum playback 4ch 15fps Non-real time | |
Video search | Time point search,calendar search,event search,channel search | |
Storage equipment | Space occupation | 1080P 30G /day 720P 20G/day;960H 12~20G/day*channel;audio:691.2M/day*channel |
Record save | Hard disk,network | |
Backup mode | Network backup/USB HDD/USB write | |
Interface | Video input | 8ch BNC |
Video output | 1ch VGA,1ch HDMI (support 1920*1080P) | |
Audio input/output | input:4 (can extend to 8ch) output:1 | |
Audio format/intercom | G.711A intercom:YES | |
Alarm input | no | |
Alarm output | No (can extend to 1 ch) | |
Network interface | RJ45 10M/100M Adaptive Ethernet port | |
PTZ Control | 1 RS485;support multiple PTZ protocols | |
USB | 2 USB Ports | |
Hard disk | 2 SATA(Each maximum support 4TB) |

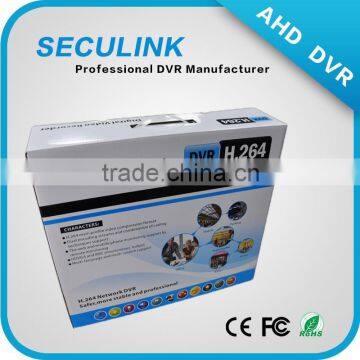

Pictures for 2015 latest 720p 960p 1080p 4ch 8ch 16ch ahd dvr
