2" NPT female threaded stainless steel hexagon pipe end cap

Specifications

Superior quality with competitive price
Full range of molds and gages
Offer material analysis report
Professional factory

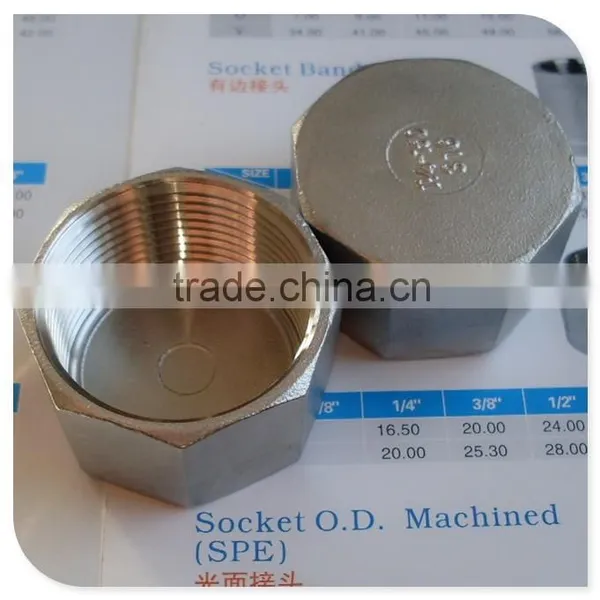

2" NPT female threaded stainless steel hexagon pipe end cap.

About us:

We are factory specializing in manufacturing and exporting of stainless steel products, such as stainless steel thread fittings, stainless steel valve, quick couplings and so on. We have many designs with series quality grade covering ss304,316.



We also have advantages on the production size.Three production lines are included.The first one is precision casting line. The second one is processing line. The third one is assembly line.So this can assure our products high quality.











Detail information:



Material	High quality stainless steel AISI 304,316,304L,316L. ASTM A351, CF8, CF8M,  1.4301,1.4306,1.4308,1.4404,1.4408
Size	1/8”,1/4”,3/8”,1/2”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”,3”,4” DN6-DN100
Standard	ANSI,DIN,JIS,GB,EN,BS
Design and manufacture Features:	Our fittings are in accordance with ISO 4144 or MSS-SP114 in terms of all dimensions. Or according to your specific drawings.
Investment Casting Bodies.	CNC lathes progressing. Top Quality.
Function	Connect the pipeline
Type of Thread	DIN2999, BSPT, BS21, ISO228, NPT, G threaded pipe fittings
Working Pressure	150lbs The 304 and 316 screwed pipe fittings could be used for standard pressure service as 10.55Kgs/cm² Of water pressure.
TEMPERATURE:	304 and 316 are not recommended for service at temperatures in excess of 800° F(425° C)
Technology	Investment casting.
Packing	pcs/carton ,cartons/pallet or according to your requirement
Certification	ISO9001:2008
Process	CNC lathe
Application	They are widely used as linkages of pipes for the transportation of water ,oil, gas and every kind of corrosive suitable for stainless steel.
Delivery time	Within 30-45 days after receipt of advance payment.
Payment term	1)30% T/T down payment, the balance against the copy of B/L. 2)L/C 3)D/P
Note	We can change the design as per the client’s requirement.
	We can manufacture 150lbs stainless steel thread fittings,1000PSI ball valves,and quick couplings for your choice.

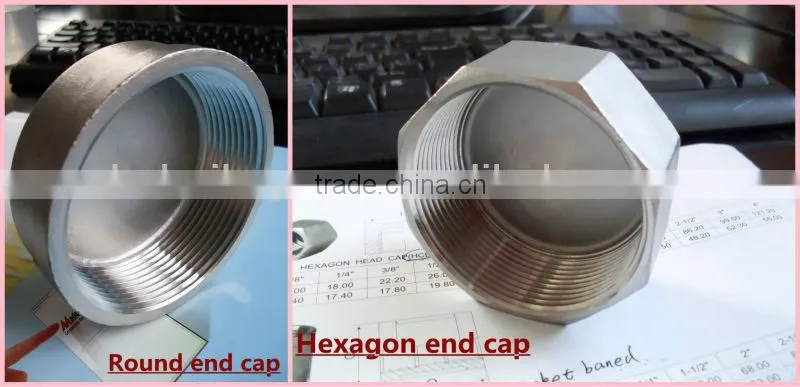

Fittings show:

Technics: Silicasol precision casting

CNC machining process

Timely delivery guaranteed

Packing Details:











Our regular packing is that the end products are first in the carton, finally onthe pallet or in a big wooden case if the customers have this requirement of package.





Of course if the customers have specifical packingrequirement, we can make adjustment according to your request.







Standard Carton Size: 32cm×22cm×20cm



Standard Wooden Case Size:     105cm×105cm×95cm







Usually,48 small cartons are loaded into a big pallet.(We can make adjustment on the size according to the cargo quatity.)









Service:

customer first, quality excellence, warm and thoughtful service, good faith cooperation, mutual benefit and create a win-win situation.



• Timely feedback
• competitive quotation
• Strict quality control,careful assemble to ensure no burr,no sandhole,be stainless steel
• Track the process of our order,prompt reply to our customer's request.
• Offer the material analysis report.
• Prompt delivery is guranteed.

Need quote?Take action!!!Cotact me!

Not miss any opportunity!
