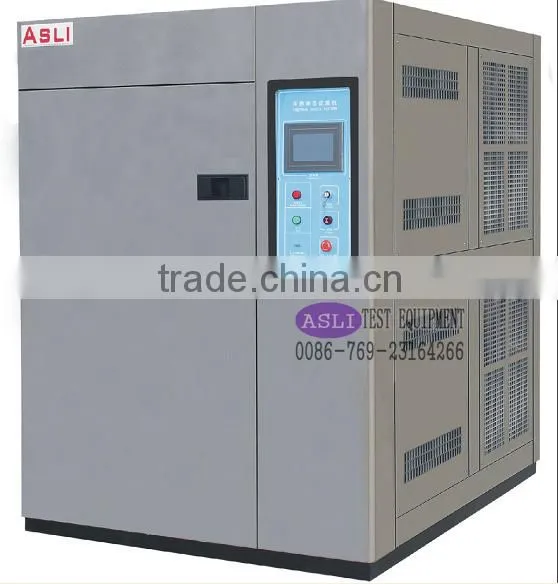

Thermal Shock Environmental Chambers /High-low Temperature testing machine /Programmable Thermal
Shock Tester/Themal Shock Testing Machine / Photovoltaic panel test chambers
1). Photovoltaic Panel Test Chambers Technical Parameters:
Model | TS-49(A~C) | TS-80(A~C) | TS-150(A~C) | TS-252(A~C) | TS-450(A~C) | TS-900(A~S) | |
Internal Dimension WxHxD ( mm) | 400x350x350 | 500x400x400 | 600x500x500 | 700x600x600 | 800x750x750 | 1000x900x900 | |
External Dimension WxHxD (mm) | 1400x1800x1400 | 1550x1950x1550 | 1600x2000x1700 | 1700x2100x1750 | 1800x2200x1900 | 2100x2400x2200 | |
Temperature Range of Testing zone | Type A:-40 degree~+150degree (200degree is Optional) | Type B:-55degree ~+150degree (200degree is Optional) | Type C:-65degree ~+150degree (200degree is Optional) | ||||
High temperature Range of Testing zone: +60degree~+150degree(200degree is Optional); Low Temperature Range of Testing Zone: -10degree~-40degree/-55degree/-65degree | |||||||
Exposure Time of High/Low Temperature | Exposure Time of High Temperature:+60degree~+150degree(200degree is Optional) 30Mins | ||||||
Exposure Time of Low Temperature:-10degree~Type B:-40degree/ Type B -55degree/ Type C -65degree 30Mins | |||||||
Temperature of Heat-Storing Slot/ Heating Time | RT~200degree/About 45mins | ||||||
Temperature of Cool-storing Slot/ Cooling Time | RT~-75degree/ About 100mins | ||||||
Temperature Recovery Time/Conversion Time | ≤5min/≤5sec | ||||||
Precision temperature Control / Distribution Accuracy | ±0.5degree/±2degree | ||||||
Internal and External Material | Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated. | ||||||
Insulation Material | High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials | ||||||
Mechanics | P.I.D+S.S.R+ Micro-computer balanced temperature control system | ||||||
Cooling System | Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type) | ||||||
Security Protection Devices | Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm | ||||||
Accessories | viewing window(special order) | ||||||
Compressor | French “Tecumseh” Brand, Germany Bizer Brand | ||||||
Power | AC220V 1 phase 3 lines,50/60HZ, AC380V 3 phase 5 lines,50/60HZ | ||||||
Weight (Approx) (kg) | 450 | 600 | 750 | 900 | 1300 | 1500 | |
2) Photovoltaic Panel Test Chambers Applications:
Thermal shock testing that subjects a product to alternating extremes of high and low temperatures in order to observe changes in product characteristics and failure occurrence caused by different materials and their thermal expansion
coefficients. Using powerful air-to-air thermal shock chambers, such as those offered by Asli, manufacturers are able to place their product inside the product carrier and observe as the product automatically is transferred between two or three separately controlled temperature zones, depending on the configuration of chamber chosen.

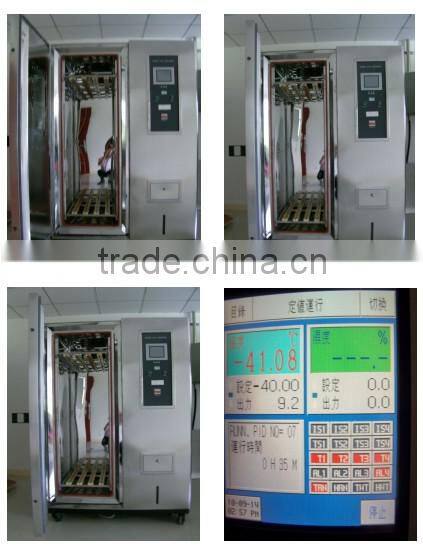

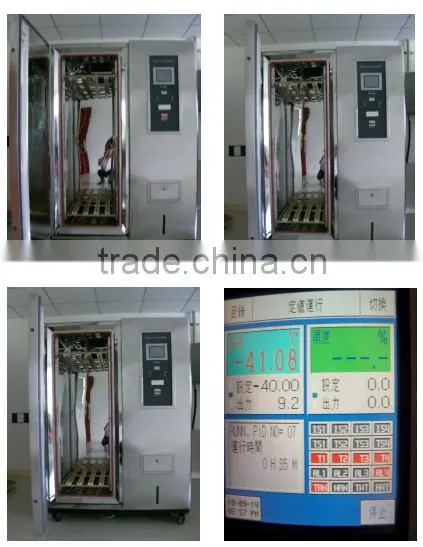

Photovoltaic Panel Test Chambers Pictures:
...
