Electro-Dynamic Shaker ( Electrodynamic Shaker System)

FOB Price

USD $25,000 - $250,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	ASLi, ASLI	Model Number:	ES series
Power:	Electronic	Usage:	Other, Vibration Testing Machine, Vibration Testing Machine

Product Description

Electro-Dynamic Shaker ( Electrodynamic Shaker System)

Electro-Dynamic Shaker ( Electrodynamic Shaker System) Description

We are manufacturer of electrical vibration series products, adopted the 'double-magnetic circuit structure','self-generated skeleton action circles', 'Airborne Support'and 'roller bearings and linear guidance','trunnion isolation' advanced modern

technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, sawtooth wave) pulse and shock response spectrum test. High Frequency Vibration Tester widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications,

home appliances and other fields.

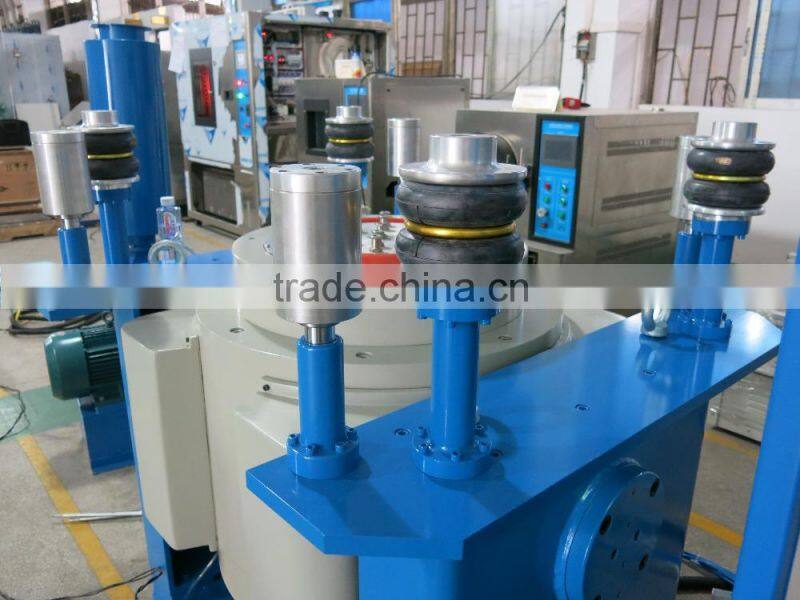

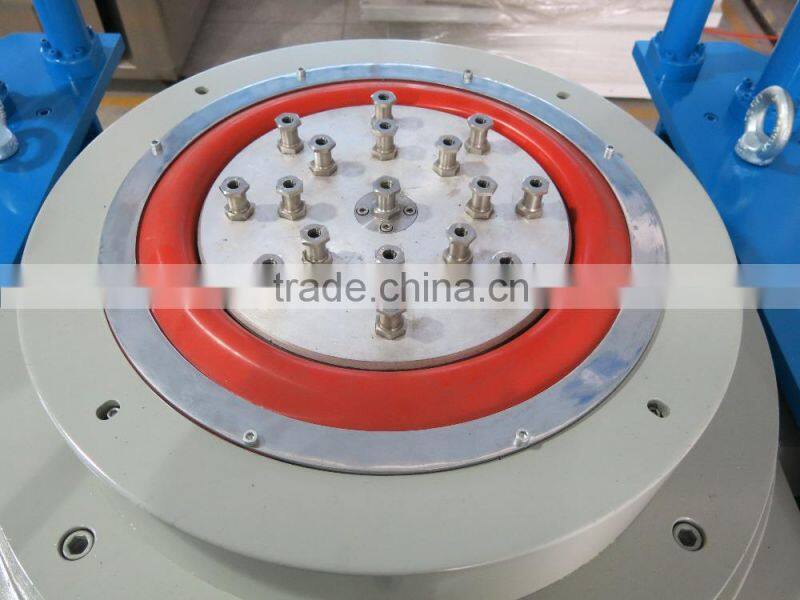

Electro-Dynamic Shaker ( Electrodynamic Shaker System) view

Electro-Dynamic Shaker ( Electrodynamic Shaker System) Technical Parameters:

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s²)	Rated Speed (m/s)	Rated Replacement(p-p)mm	Max. Loading (Kg)	moving coil (Kg)	Dimension of Moving coil(mm)
ES1	1000	1000	3-3500	400	1.2	25	70	2.5	Φ150
ES2	2000	2000	3-3500	800	1.6	25	70	2.5	Φ150
ES2a	2000	2000	3-3500	300	1.6	40	70	8	Φ230
ES3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450
ES60	60000	60000	3-2700	1000	1.8	51	750	60	Φ450
ES100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ450
ES120	120000	120000	3-2200	1000	1.8	51	1100	90	Φ500
ES160	160000	160000	3-2100	1000	1.8	51	1500	150	Φ600
ES200	200000	200000	3-2000	1000	1.8	51	2500	200	Φ650
ES350	350000	350000	3-1700	1000	1.8	51	4500	300	Φ870

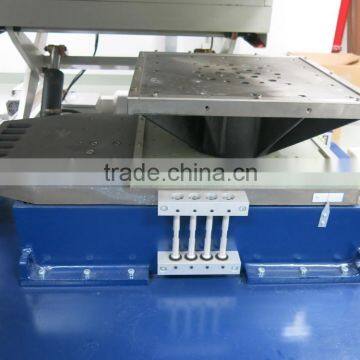

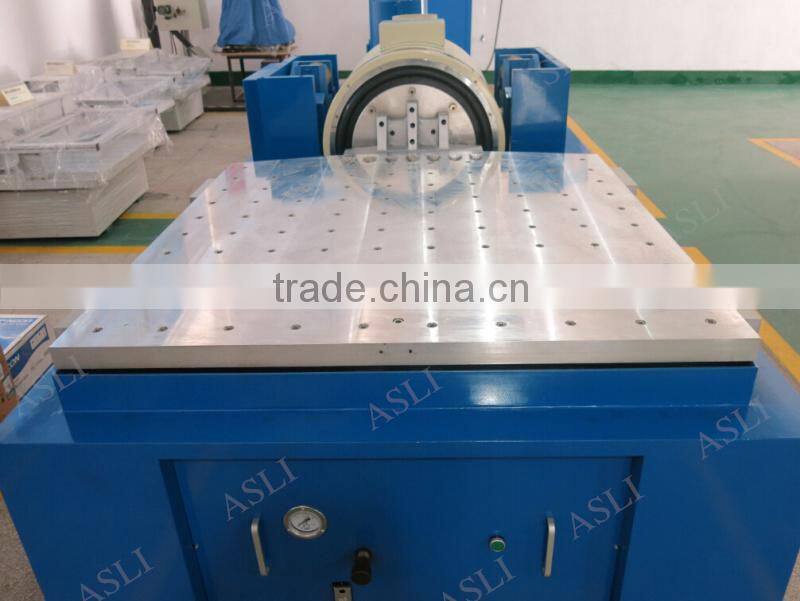

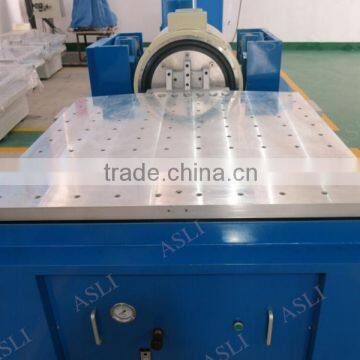

high frequency vibration shaker table Horizontal Stand:
Features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance

of whole machine bench.

Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating

high frequency vibration shaker table Technical Parameters:

Model	Bench Size (mm)	Frequency Range (Hz)	Weight of Moving Parts (kg)
LT0303	300×300×22 300×300×26 300×300×30	5-1000 5-1500 5-2000	6.6 7.8 9.0
LT0404	400×400×22 400×400×26 400×400×30	5-l000 5-1400 5-2000	11.2 13.2 16.0
LT0505	500×500×25 500×500×30 500×500×35	5-1000 5-1500 5-2000	19.3 23.1 27.0
LT0606	600×600×25 600×600×30 600×600×40	5-1000 5-1200 5-2000	27.5 33.0 45
LT0707	700×700×25 700×700×30 700×700×35	5-800 5-1000 5-1500	36.8 44.2 52
LT0808	800×800×30 800×800×40 800× 800×45	5-1000 5-1500 5-2000	57.7 76.9 86.5
LT 1010	1000× 1000×30 1000× 1000×40 1000× 1000×50	5-1000 5-1300 5-1500	89.1 118.8 147
LT 1212	1200× 1200×30 1200× 1200×40 1200× 1200×50	5-800 5-1100 5-1400	126

high frequency vibration shaker table Vertical Extended-bench:

Features:

VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect

structure, high quality material and workmanship.

(for technical data pls contact with us)

Our Services

Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.
