Portable mixing tanks with hopper
- 90 Set / Sets per Month
- Shanghai qingdao dalian etc. for mixing tanks
- T/T L/C D/P D/A Credit Card PayPal
- Heavy equipment sand dewatering screens for construction
- Gold mining flotator plant operator manufacturer machine
- Professional Horizontal Impact Crusher with Large Capacity
- Best sell cone crusher for sale from Shanghai Lipu
- Sea Sand Wet Drum Separator Machine
- GZD series mining vibrating hopper feeder manufacturer
Product Details
Condition: | New | Mixer Type: | Planetary Mixer | Product Type: | Other, Slurry mixing |
Application: | Other, Liquid with Suspended Solids, Mix drug and slurry | Additional Capabilities: | Granulating | Place of Origin: | Shanghai, China |
Brand Name: | LIPU mixing tanks | Model Number: | XB series mixing tanks | Max. Loading Capacity: | 0.098-30m3 |
Voltage: | According to model | Power(W): | 1.5-30kw | Dimension(L*W*H): | According to capacity |
Certification: | ISO9001:2000 | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Export Standard container or as customers requirements (mixing tanks)
Product Description
Specifications
mixing tanks1.Model:XB series;
2.Volume:0.098-30 m3;
3.Internal diameter:500-2500mm;
4. Application:mix slurry
Brief Introduction Of mixing tanks :
mixing tanks is mainly used to mix slurry before flotation in the beneficiation process. It can mix drug and slurry completely. It is suitable to mix slurry with density smaller than 30 % (weight ratio) and size smaller than 1mm. V-belt of motor drives impeller to mix drug and slurry completely. This machine can increase reaction time and strengthen reaction quality of the drug.
Product parameter of mixing tanks :
Model | Internal diameter (mm) | Internal Height (mm) | Volume (m3) | Impeller speed (r/min) | Impeller diameter (mm) | Weight (t) | Motor power | Dimension (LxWxH) (mm) | |
Model | Power(KW) | ||||||||
XB-500 | 500 | 500 | 0.098 | 600 | 200 | 0.15 | Y90S-6 | 1.1 | 600×566×954 |
XB-750 | 750 | 750 | 0.33 | 530 | 255 | 0.6 | Y90L-4 | 1.5 | 1131×880×1241 |
XB-1000 | 1000 | 1000 | 0.58 | 530 | 255 | 0.99 | Y90L-4 | 1.5 | 1131×1130×1492 |
XB-1200 | 1200 | 1200 | 1.4 | 300 | 400 | 1.05 | Y132S-6 | 3 | 1500×1480×1800 |
XB-1500 | 1500 | 1500 | 2.2 | 320 | 400 | 1.2 | Y132S-6 | 3 | 1750×1640×2190 |
XB-2000 | 2000 | 2000 | 5.46 | 230 | 550 | 1.6 | Y132M2-6 | 5.5 | 2380×2162×2850 |
XB-2500 | 2500 | 2500 | 11.2 | 230 | 650 | 3.44 | Y160L-6 | 11 | 3036×2716×3543 |
XB-3000 | 3000 | 3000 | 19.1 | 210 | 700 | 4.61 | Y225S-8 | 18.5 | 3604×3216×4250 |
XB-3500 | 3500 | 3500 | 30 | 230 | 850 | 7.28 | Y225M-8 | 22 | 3940×3766×5386 |
Any change of technical parameters, there is no further notice.

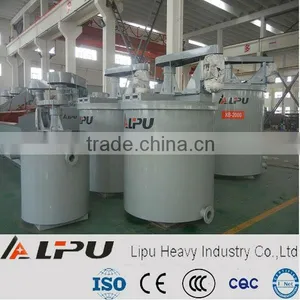

Latest Image of mixing tanks :
