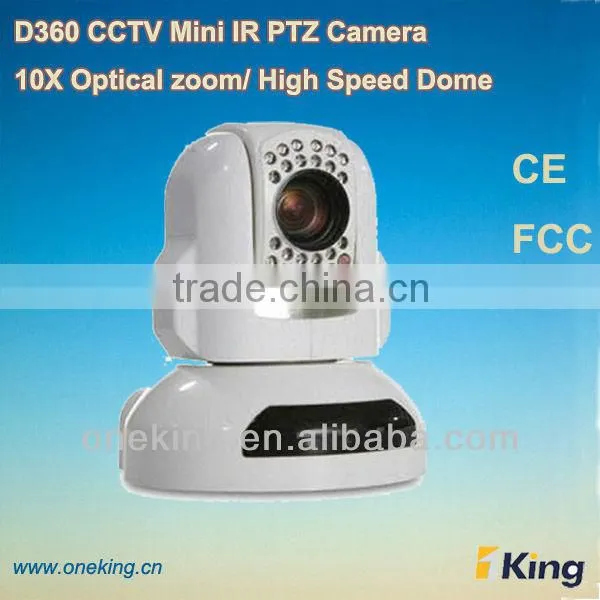

2013 Hotsale analogue Mini Dome Camera with 24pcs IR Leds

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port shenzhen
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Oneking	Model Number:	D360
Type:	Other, Analog Camera, CCTV PTZ Camera	Style:	Mini Camera	Sensor:	CCD
Technology:	Infrared

Product Description

Specifications

analogue Mini Dome Camera
1/4" Sony CCD, 420TVL IR, 30M IR Distance High Speed Dome PT 355 de pan & 180 de tilt rotation

We are the professional manufacturer of PTZ IP/ CCTV IR Dome Camera ------

Basic Features of D360 CCTV IR Dome Camera :

l 1/4" SONY CCD

l 10 Optical x 10 Digital zoom 480-530TVL, support SONY, SAMSUNG, Oneking Cam modules

l 360 degree Pan Continuously & 180 degree Tilt

l 64 preset positions, 4 Patrol cruise

l OSD Menu of lens and camera on screen

l RF remote control for optional (USD 8.00)

l Support Wall/Ceiling mount

Easy Install]

* DIY Wall & Ceiling mounts

* Manual in CD with products and necessary accessories in package

* OEM Packages and manual book

2013 Hotsale analogue Mini Dome Camera with 24pcs IR Leds

Additional advantages:

1. Private tooling for OEM/ODM project, we could put your logo on software and products for free under mass production (attached the logo for example).

PTZ MINI Camera Details:

The Analogy PTZ CCTV Camera -Package Box:

Analogy CCTV Camera Spec sheet:

Model Number:D360

CCD	1/4" SONY CCD
Signal System	PAL/NTSC
Minimum Scene Illumination	0.05Lux
White Balance	AUTO/Manual
Gain Control	AUTO
Back-light compensation	On/off
Electronic shutter	1/50-1/120,000S
Horizontal resolution	480/540 TVL
S/N Ratio	More than 60 dB
Lens	Focus	AUTO
	Iris	AUTO/Manual
	Lens	10 Optical(sumsung LENS:10 Optical X 10 digital)
		f=3.9-39.0mm, F1.2
Video Output		VIDEO: VBS: 1.0Vpp at 75 ohm;
Control Decoder		Built-in
Communication		EIA/RS-485
		EIA/RS-232( Bidirectional)
PTZ Control Protocol		PELCO-P,PELCO-D
Baud Rate		4800/9600bps
Patrol tours		4
pattern tours		4
Preset		64
Privacy Mask Zone		4
Save stataus after power off		support
Speed Matching Function		Support
OSD Menu		Support
Image Auto Flip		(SUMSUNG LENS:Support)
Pan Speed		0-280 degrees/s
Tilt Speed		0-100 degrees/s
Pan Rotation Angle		360 degrees continuously
Tilt Rotation Angle		180 degrees
Auto Pan Scan		support
Boundary scan		0-359 degrees (programmable)
Remoter Control		RF Wireless remote control P/T/Z
Power		DC12V+-10% 1.2A
Operation Temperature		0°-60°C
Environmental humidity		0 - 95%RH(non-condensation)
Lengthxwidthxhigh		124X120X145mm/165x145x160mm(NET/PACKAGE)
Weight		800g/1300g(NET/PACKAGE)

Other optional:
