Home > Products > New Products > 1080p 60fps Full HD Video conference PTZ camera for conference system

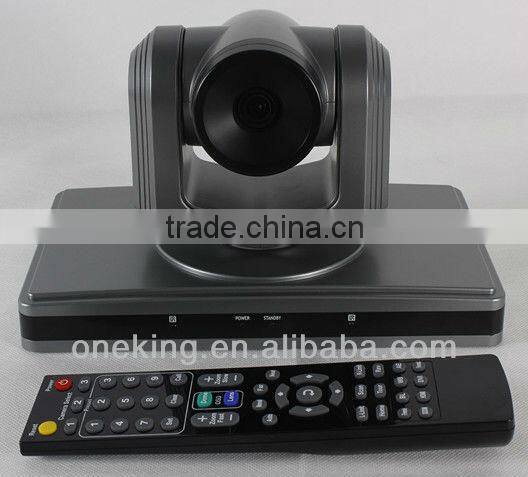

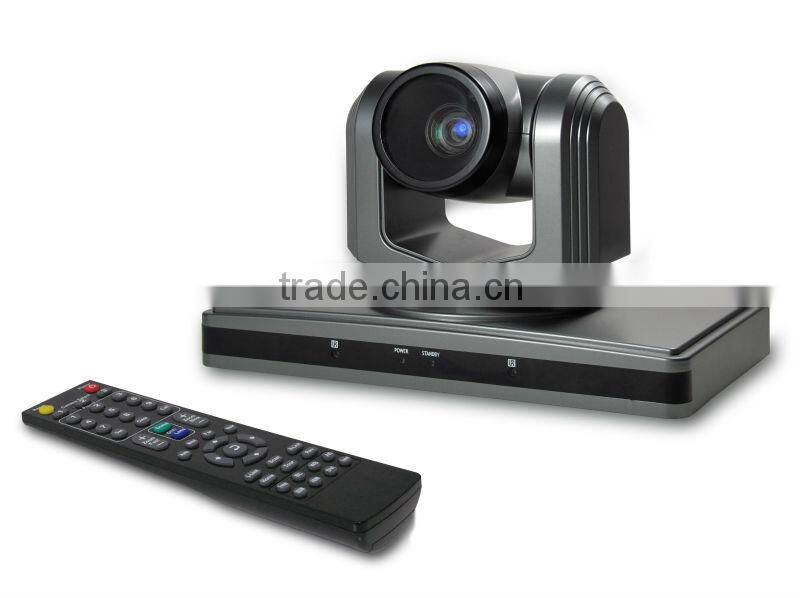

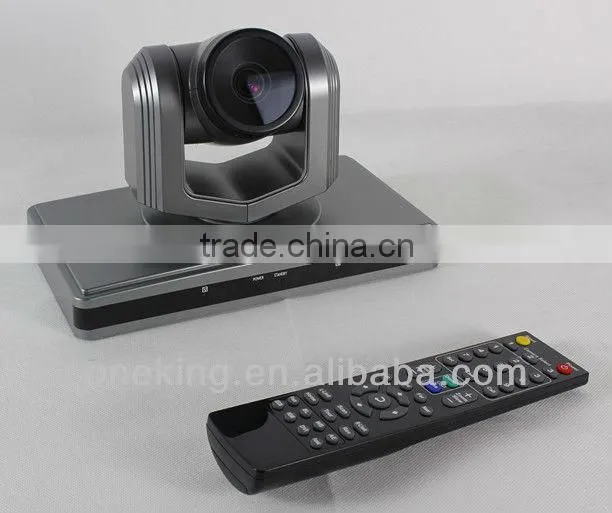

1080p 60fps Full HD Video conference PTZ camera for conference system

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port SHENZHEN
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Type:	Video Conference System	Function:	Other, video	Simultaneous Interpretation:	Yes
Place of Origin:	Guangdong, China	Brand Name:	1king/OEM	Model Number:	HD-600-A

Product Description

Specifications

Video conference PTZ camera for conference system
4.5mm F1.6 fixed lens
1080p/60
HOV>70 Degree
DVI, DVI to HDMI

1080p 60fps Full HD Video conference PTZ camera for conference system

1.1/2.8" CMOS 2.0 Mega Pixel, Full HD Video conference camera
4.5mm F1.6 fixed lens 1.0 Lux at F1.2
Auto/Manual/Indoor/Outdoor, Auto Gain Control, 1/50~1/120,000S E-shotter
2. Resolution: 2.0 Mega Pixel

3. HOV>70 Degree (depends on Lens);
4. DVI Video Out;
5. Video Format: 1080P@60, 1080P@30, 1080P@25, 1080P@24, 1080i@60, 1080i@50,
720P@60, 720P@50
6. EIA/RS232C
7. Power on/off button
8. Pan/Tilt Movement
355 degree Pan 90 degree Tilt movement
Pan Speed: 0~16 degree/Second
Tilt Speed: 0~16 degree/Second
9. Tripod/Desktop installation

Model No.		HD600
Image Sensor	Sensor	1/2.8" CMOS 2.0 Mega Pixel
	Effective Pixels	2.0 Megapixel
	Illumination	1.0 Lux
	White Balance	Auto/Manual
	Gain Control	Auto
	Back-light compensation	On / Off
	E-Shutter	1/50~1/5000S
	S/N Ratio	> 50db
Lens	Focus	4mm fixed lens
	Iris	Auto/Manual
	Zoom
Lens HOV		70°
Video Output		HDMI, DVI
Video Output Model		1080P@60/50/30/25,1080i@60/50,720P@60/50
Communication Interface		EIA/RS232C,EIA/RS485C (Bidirectional)
Communication Control Protocol		VISCA,PELCO-D
Baud Rate		4800/9600bps
Tour		4 Line
Preset		64
Speed Matching		Pan/Tlit movement speed depends on camera module zoom in/out
OSD Menu		Access to OSD Menu and adjust camear module para meters
Image Auto Flip		Support Horizontal/Vertical image flip
Pan Speed		1-200 degree per second
Tilt Speed		1-150 degree per second
Pan Rotation Angle		0~355 degree
Tilt Rotation Angle		±45 degree
Auto Pan Scan		Support auto pan scan
Boundary Scan		0-355 degree (programmable)
Remote Controller		IR wireless control P/T/Z
Power Supply		DC12V±10%, 2A
Working Temperature		0-50°C
Environment Humidity		0-95%RH
Size(LxWxH)		250X140X154mm
Weight		1380g
