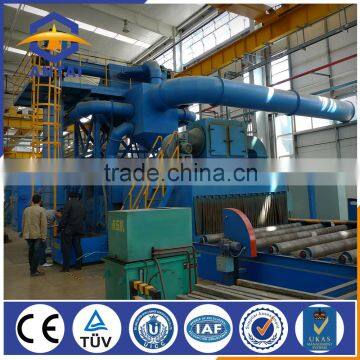

H beam QH69 shot blasting machine for Large-scale H steel and Steel structures

H beam QH69 shot blasting machine for Large-scale H steel and Steel structures

Our service

Technique parameter

Product Introduction

Steel structure shot blasting machine is mainly used for steel plate and profile surface cleaning, welding stress removing and coating adhesion ability improving.  The machine has been widely used in shipbuilding, locomotive, bridge building, machinery and steel structure fabrication industry.

Feature

1.This Steel structure shot blasting machine use high speed cantilever centrifugal type turbine blast wheels. Curve blades blast wheel has more blasting force to process steel products.

2.Material of blades, abrasive distributor, and control cage is high chrome, which can be used over 500 hours. Another option is Taiwan made special material blades, which has 1000-1500 hours lifetime.

3.Blasting cabinet liner material is casted Manganese steel 13, which has good hardness and impact force absorbing ability, which makes its life longer than one year.  Another option is rolled Manganese steel, which has life more than two years.

4.Roller conveyor is controlled by frequency converter, which can adjust moving speed to fit for different blasting purpose.

5.Full shutter type air wash separator has three steps separating, which effectively separate dust and abrasive. It is good for abrasive recycle, improve cleaning effect and protect the machine.

6.Blowing nozzles are used at end of chamber to blow off the remaining steel ball and dust.

7.Pulse jet bag type dust collector, dust remove efficiency is over 99%. Good for environmental protection. Cartridge type dust collector is optional.

8.Safety protection, electrical interlock, failure self detection and alarming function. Full range of automatic control.

9.ABB motor, SEW gear box, SKF/NSK bearings, SIEMENS/Mitsubishi PLC, Mitsubishi/SIEMENS touch screen, Schneider electric components are optional selection.

Product Pictures

Spare parts

According to your requirements,the most suitable machines will be designed for your workpieces please indicate the following details.

1.what kind of workpiece will you clean ?

2.The workpiece size,length ,width and height of maximum workpiece?

3.How many workpiecs do you want to clean per day ?

Based on this question,the detailed technical proposals will be sent to you for reference.

1.Equipment painting completed before shipment, With Stretch film to avoid rub off the surface paint, It can used wooden cases packaging according to  users requirements.(Key parts such as electric cabinet with shockproof packaging material and then packed in wooden cases. )

2. We have 15 experienced engineers, With 108 skilled workers insure good   quality of our machines and prompt delivery.

3.Meanwhile our company has a long-term cooperation with ACL, CSCL, CCNI,CNC, COSCO etc insure the goods to the port on time.

FAQ

1. How many days do you need to produce this machine?
