Sand gyratory screener

NPFS Gyratory Vibration Machine Feature:

l handle both large capacity and fine mterial

l Low angle, Gyratory-Reciprocating Motion gently sifts the material

l Multi deck screeners produce several grades of product in one machine

l Totally enclosed with effective sealing for clean operation

l Durable constructon and wear-resistant impact areas for long life and continuous operation

1. Coating: Plastic wrap for initial packing.
2. Master Shipper: Standard fumigated shipping wooden case.

Guarantee and After-sale Service:

• 13 months guarantee for whole machine
• 24 hours technical online support
• Telephone or door-to-door service

Navector’s Shanghai base was founded in 2005. Not only about 10 years of experience in manufacturing and issue solving in sieving field, also we provide innovative solutions for process industries throughout worldwide. Shang Hai Navector currently serves over 1000 local customers while serves over 100 oversea customers.

1. What the machine does?

Separate solids from liquids or segregate dry materials into various sizes.

2. How it works?

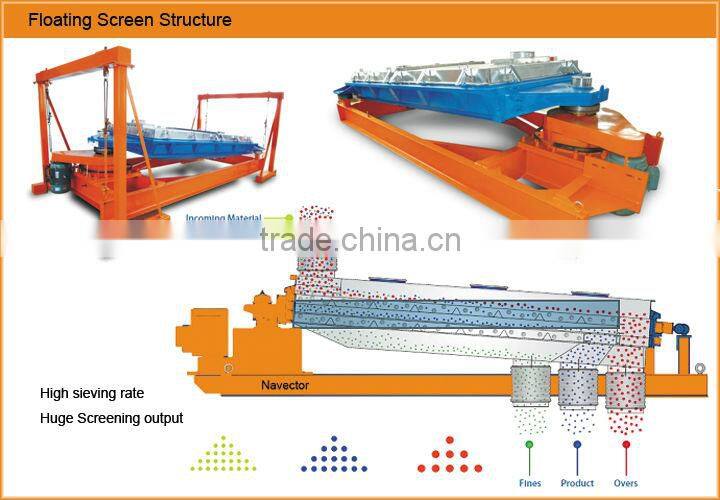

Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. and The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern.

3. Are there any self-cleaning devices on the sieving machine?

Yes, Bouncing/jumping ball or Ultrasonic system could be installed.

4. How many kinds of material are supported?

All stainless steel (201, 304, 316L)

All carbon steel Q235A

Contact part Stainless steel.

5. What about the phase and the voltage?

0.12-0.55 kw single phase and three phase are both supported.

0.55-2.2 kw Three phase is just supported.

110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).

6. How long does the warranty last?

The warranty lasts 13 month (except for wearing parts: sealing strip, jumping ball and sieve mesh, etc.). Because the machine's usage life can very besed on uncertain circumstances.

7. Are OEM order and labeling services availiable?

Yes, OEM order and labeling services are supported. And we are seeking business partners throughout worldwide.

8. Whether the site visit is availiable?

Site visit is almost welcomed. Meanwhile, Navector will arrange the airport pick-up as per your schedule.
