Home > Products > 02. 3/4 Automatic Type Screen Printing Line > high quality directly factory 3/4 automatic screen printing machine

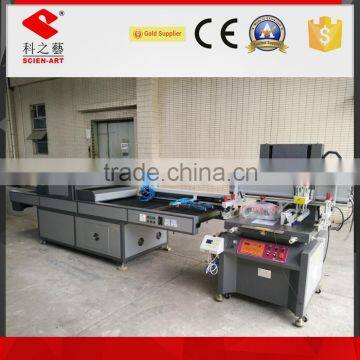

high quality directly factory 3/4 automatic screen printing machine
- 100 Set / Sets per Month
- shenzhen ningbo Shanghai
- Credit Card PayPal
You May Like
-
New design wholesale 3/4 automatic silk screen printer
-
high quality directly factory 3/4 screen printing machine
-
with UV dryer paper 3/4 automatic silk screen printer machine
-
paper flat spot uv semi-automatic silk screen printing machine for sale
-
max 800*1000mm screen frame size electric screen printing drying oven
-
max 900*1200mm size for screen frame drying cabinet
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | scien-art | Model Number | YKP6090II | |
| Usage | Card Printer, Cloths Printer, Label Printer, Paper Printer, Other, Card Printer, Cloths Printer, Label Printer, Paper Printer, paper spot uv screen printing machine | Automatic Grade | Semi-Automatic | |
| Voltage | 380V | Gross Power | 3.2+12Kw | |
| Dimensions(L*W*H) | 1.6*1.3*1.75m+1230*980*1350mm | Weight | 850Kg | |
| Certification | CE/ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
high quality directly factory 3/4 automatic screen printing machine :
screen printer technical parameters:
Model | YKP-5070II | YKP-6090II |
Workbench Area (mm²) | 600×800 | 700×1000 |
Max Print Area (mm²) | 500×700 | 600×900 |
Max Screen Size(mm) | 700×900 | 800×1200 |
Accuracy(mm) | ±0.05 | ±0.05 |
Registering Accuracy(mm) | ±0.01 | ±0.01 |
Printing Speed(mm/sce) | 80~160 | 80~160 |
Printing pressure(kgf/cm²) | 4.0~8.0 | 4.0~8.0 |
Source Power (kw) | 2.3 | 2.3 |
Rated Power (V) | 380 | 380 |
Highest NO of Printing(Hr) | 400-600 | 400-600 |
Thickness of printing stock | 50mm | 50mm |
Weight(kg) | 320kg(360kg) | 480kg |
Dimension (mm) L×W×H | 1300×970×1620 | 1500×1070×1750 |
|
|
|
UV dryer technical parameters:
Model | UV750 | UV1000 |
Conveyor belt width(mm) | 750 | 1000 |
Power(V/Kw) | 380V/12.5KW | 380V/12.8KW |
Conveyor speed(m/min) | 0-15 | 0-15 |
UV light power(kw) | 5.6kw; 2 set | 5.6kw; 2 set |
Overall dimensions(mm)L*W*H | 2500(or4000)*980*1350 | 2500(or4000)*1230*1350 |
Weight(kg) | 300 | 350 |
video link : https://youtu.be/Gat8ymsEbio
| |||
| Roll to roll screen printer | Automatic Screen Printer | Semi-Auto Screen Printer1 | Semi-Auto Screen Printer2 |
| |||
| LED UV Curing System | UV Dryer | Three Fourths Auto-Screen Printing Line1 | Three Fourths Auto-Screen Printing Line2 |
| in stock now, contact with me to know more informations, an inquiry and let me know by T/M will have 5% discount !!!! |
