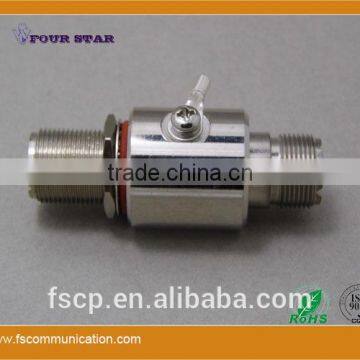

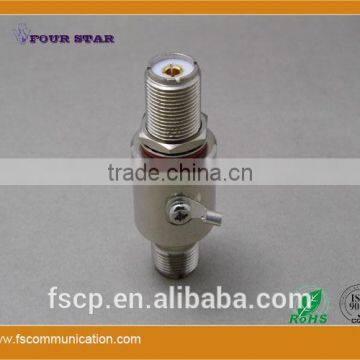

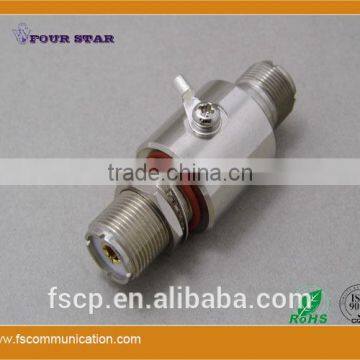

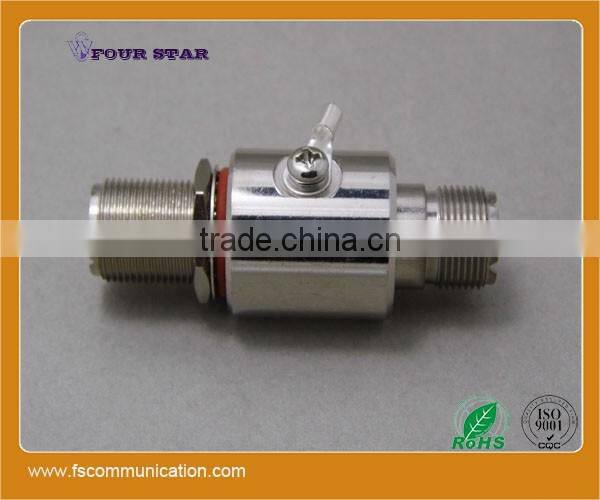

Gas Discharge Tube Lightning protector with UHF connector

Name: Gas Discharge Tube Lightning protector with UHF connector
Brand: Four Star
Availability: InStock

FOB Price

USD $3.8 - $5.8 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Jiangsu, China

Brand Name:

Four Star

Model Number:

LPGD-UHFKKY-3

Gas Discharge Tube Lightning Arrestor

Gas Discharge Tube Type Lightning Protector With UHF Female to UHF Female Bulkhead Connector
Model No.	UHF-GD-KKY-3
Interface	IEC 60169-12/MIL-STD-348/313
Electrical
Characteristic Impedance	50ohm
Coaxial Connector	UHF Female to UHF Female Bulkhead Connector
Frequency Range	DC-3GHz
VSWR	≤1.30@DC-1000MHz; ≤1.50@1000-3000MHz;
Insertion Losss	≤0.18dB(1GHz)
Impulse Breakdown Voltage	≤2500V (@1kv/μs)
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤1mΩ	Outer Contact ≤1 mΩ
Peak Power	200 Watts
DC Breakdown Voltage	90/150/230/350V±20%(@100v/s)
AC Discharge Current	5A(50Hz)
Surge Discharge Current	5KA(8/20μs)
Maximum Withstand Current	20KA(8/20μs)
Mating	—
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating (Finish)
Body(Housing)	Brass	Ni or Tri-Metal(CuZnSn)
Insulator	PTFE	—
Inner Conductor	Phosphor Bronze	Au
Coupling Nut	Brass	Ni
Gasket	Silicone Rubber	—
Washer	Brass	Ni
Grouding Component	Stainless Steel	—
Environmental
Operating Temperature	_45 °C-85 °C
Weatherproof Rate	IP67
RoHs (2002/95/EC)	Compliant by exemption
EU Directive 2006/95/EC	Compliant
