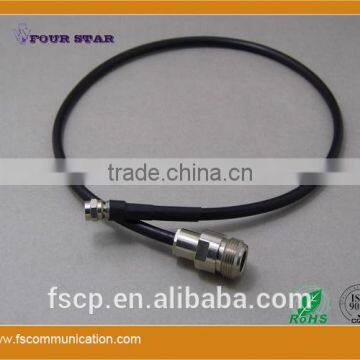

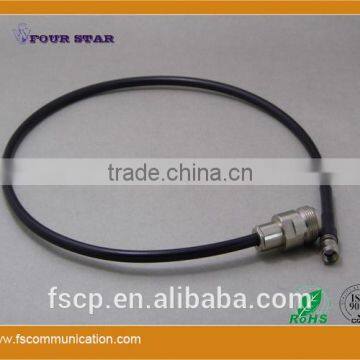

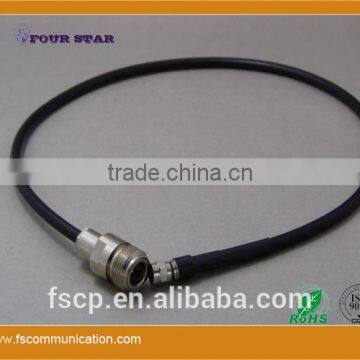

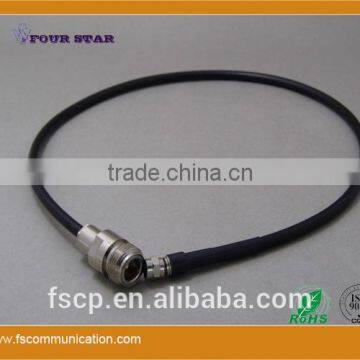

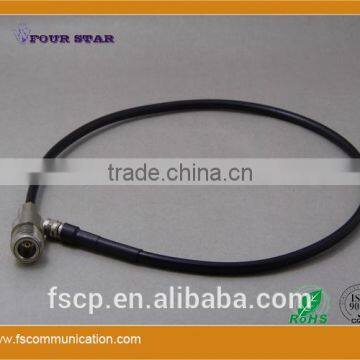

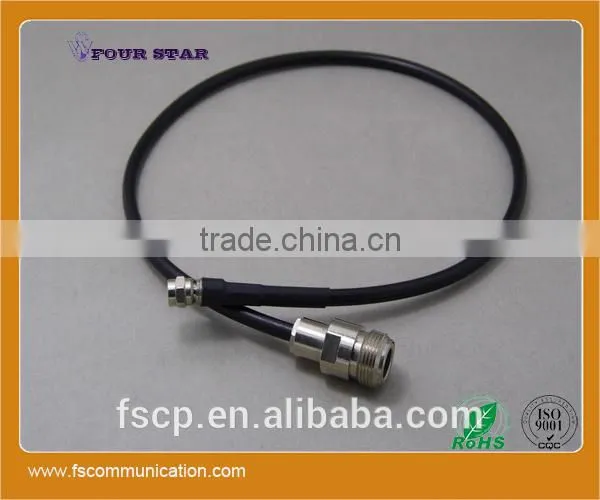

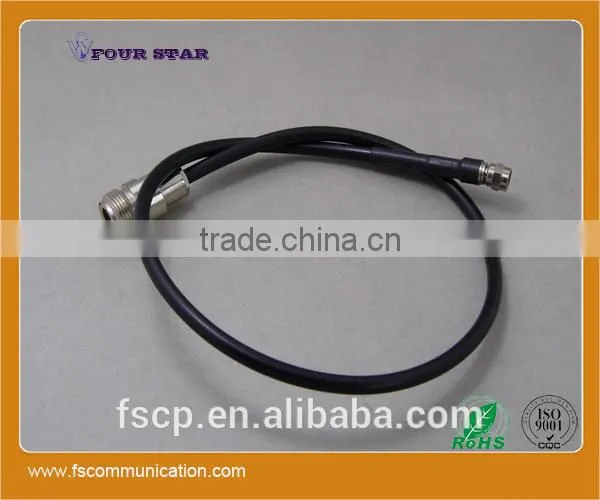

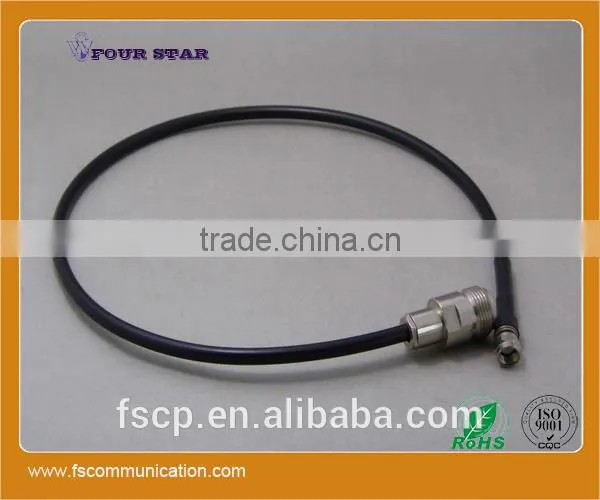

RG58 Cable Assembly with SMA RP-Male to N Female Crimp Connetcors

FOB Price

USD $1.78 - $2.25 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	Four Star	Model Number:	SMA-C-JR3/N-C-K3-500
Type:	Coaxial	Number of Conductors:	1

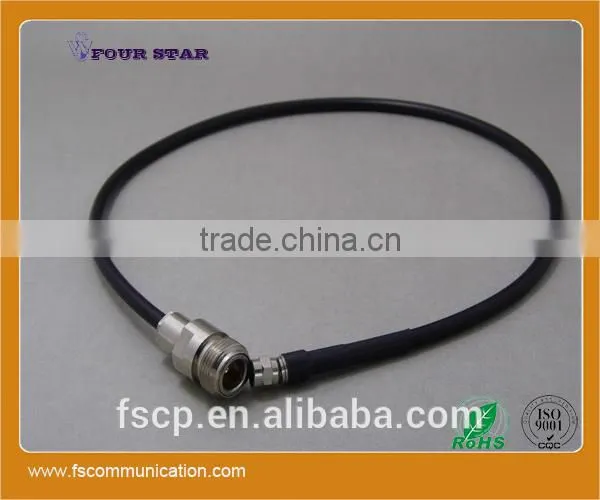

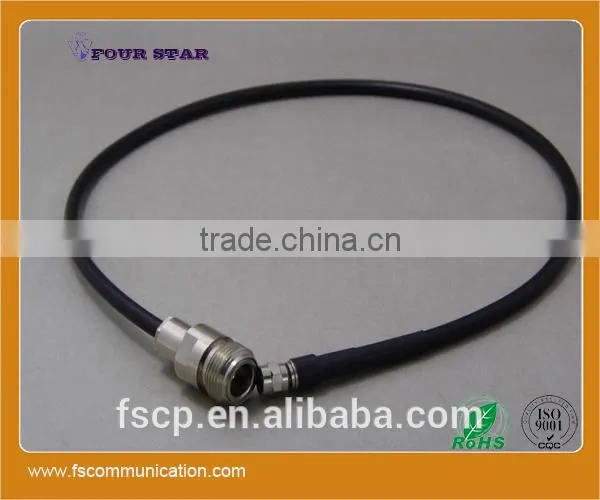

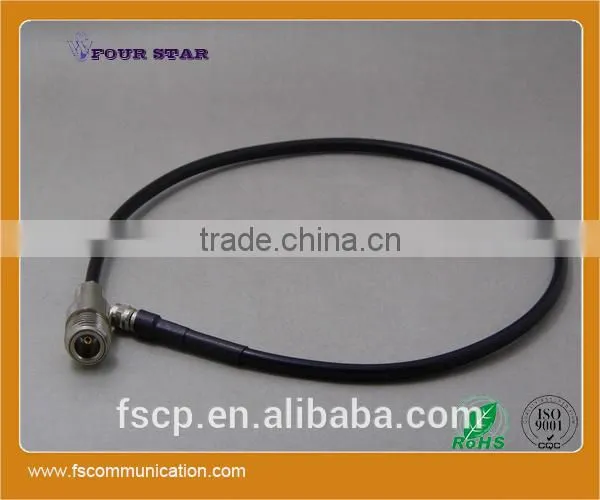

500mm RG58 cable assembly with SMA RP-male to N female crimp connetcors
Model No.	SMA-C-JR3/N-C-K3-500
Connector Type	A Side: SMA Connector RP-Male Crimp for RG58 Cable
	B Side: N Connector Female Crimp for RG58 Cable
Cable Type(Name)	RG58 Cable
Cable Length	500mm (Customized Length Available)
Connector Interface	IEC 60169-15; IEC 60169-16
Typical Frequency Range	DC-3GHz
VSWR	≤1.30@DC-3GHz
Intermodulation 3rd (PIM3)	—
Durability	≥500 cycles
Parts Name	Material	Plating
Body	Brass	Ni
Insulator	PTFE	—
Inner Conductor	Phosphor Bronze	Au
Coupling Nut	Brass	Ni
Gasket	Silicone Rubber	—
Washer	Brass	Ni
Ferrule	Brass	Ni
Operating Temperature	_45 ℃-85 ℃
Weatherproof Rate	IP67
RoHs (2002/95/EC)	Compliant by exemption
