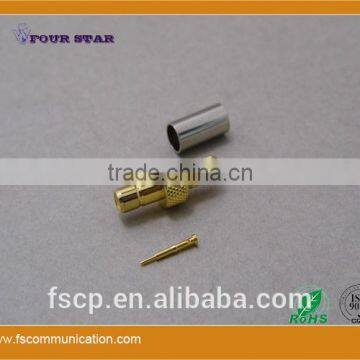

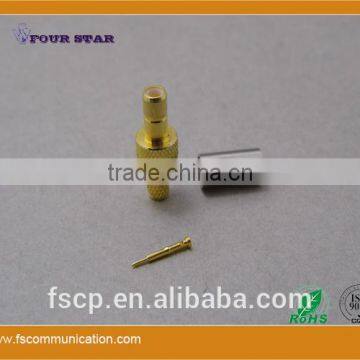

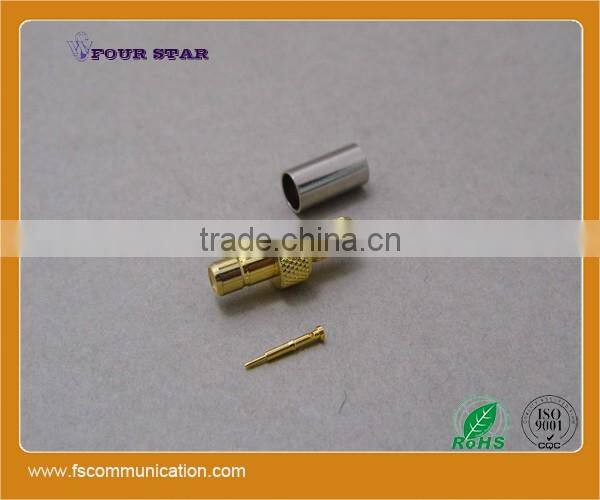

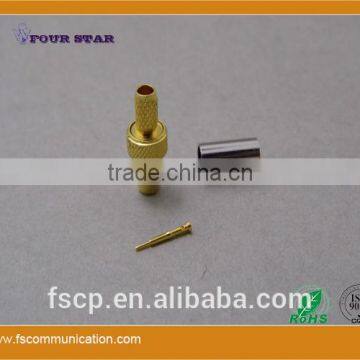

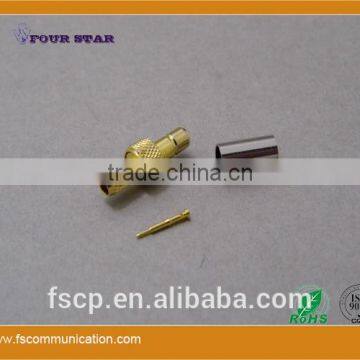

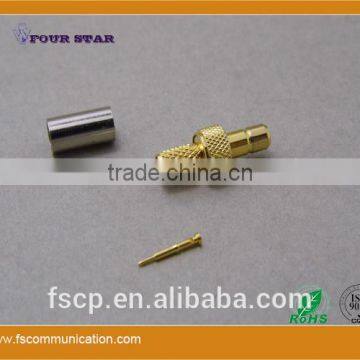

SMB Connector Male Crimp for FLEX-3 Cable
USD $0.44 - $0.76
/ Piece
100 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
-
SMB Connector Female Crimp for FLEX-3 Cable
-
SMB Connector Female Crimp Right Angle for FLEX-2 Cable
-
SMB Connector Female Crimp Soldering for SYV-75-2-2 Cable
-
SMB Connector Male Crimp Soldering for SYV-75-2-2 Cable
-
SMB Connector Female Crimp Right Angle for 1.5C-2V Cable
-
SMB Connector Female Crimp for 1.5C-2V Cable
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Four Star | Model Number: | SMB-C-Jflex-3 |
| Type: | SMB | Application: | RF | Gender: | Male |
Product Description
Product Description
SMB Connector Male Crimp for FLEX-3 Cable
| SMB Connector Male Crimp for FLEX-3 Cable | ||
| Model No. | SMB-C-JFlex-3 | |
| Interface | IEC 60169-10;CECC 22130;MIL-C-39012 | |
| Electrical | ||
| Characteristic Impedance | 75ohm | |
| Frequency Range | DC-2GHz | |
| VSWR | ≤1.30@DC-3000MHz | |
| 3rd Order IM (PIM3) | — | |
| Working Vlotage | 335V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | 1000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥1000MΩ | |
| Center Conductor Retention Force | ≥0.28N | |
| Engagement force | 8-63N | |
| Disengagement force | 8-63N | |
| Contact Resistance | Center Contact ≤6mΩ | Outer Contact ≤1 mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Au |
| Insulator | PTFE | — |
| Inner Conductor | Beryllium Bronze | Au |
| Resilient Contact | Beryllium Bronze | Au |
| Washer | Brass | Au |
| Gasket | — | — |
| Cable Clamp | — | — |
| Ferrule | Annealed Copper | Ni or Au |
| Environmental | ||
| Operating Temperature | -45 ℃~-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | Flex-3 Cable | |
