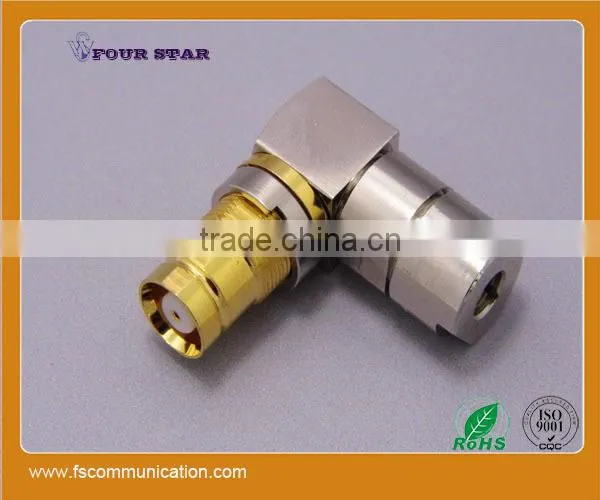

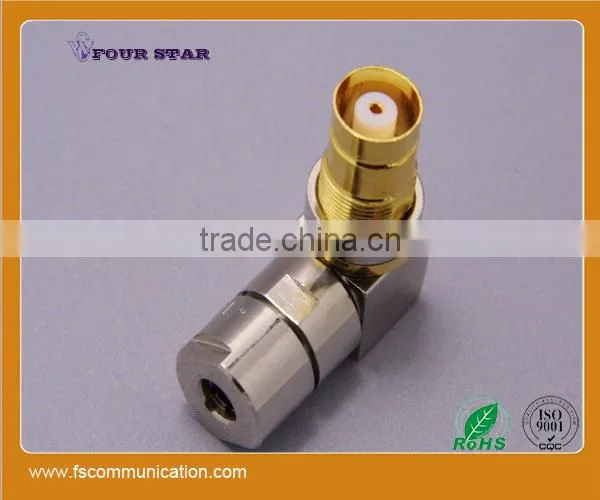

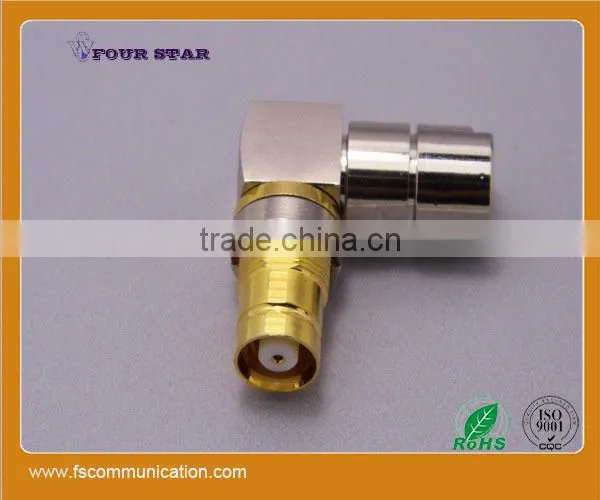

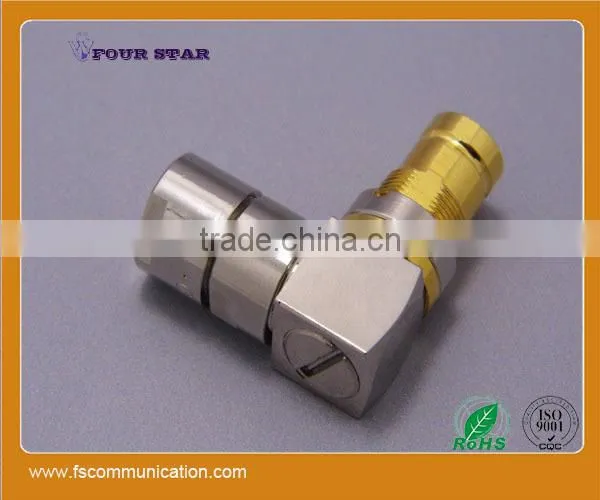

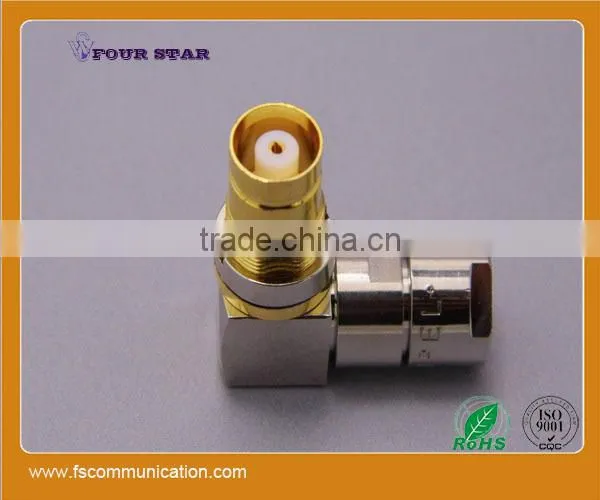

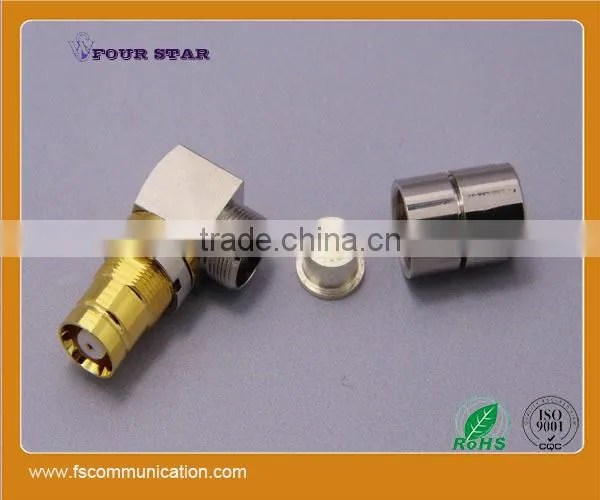

1.6/5.6 Female Bulkhead Right Angle Clamp Connector For Flex-3 Cable B
USD $0.79 - $1.19
/ Piece
100 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
1.6/5.6 Connector Male Crimp For BT3002 Cable B
-
1.6/5.6 Connector Male Crimp For BT3002 Cable A
-
1.6/5.6 Female Bulkhead Crimp Right Angle Connector For BT3002 Cable
-
1.6/5.6 female bulkhead crimp connector for BT3002 cable
-
1.6/5.6 Jack Bulkhead Crimp Solder Connector For BT3002 Cable
-
rf lightning protector gas capsule tube n male n female connector
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Four Star | Model Number: | 1.6/5.6-KYWFLEX-3-B |
| Type: | Other, 1.6/5.6 | Application: | RF | Gender: | Female |
Product Description
Product Description
| 1.6/5.6 DIN Connector Female Bulkhead Right Angle Clamp Flex-3 Cable | ||
| Model No. | 1.6/5.6--KYWFlex-3-B | |
| Interface | IEC 60169-13;CECC 22240;DIN47295 | |
| Electrical | ||
| Characteristic Impedance | 75ohm | |
| Frequency Range | DC-1GHz | |
| VSWR | ≤1.30@DC-1000MHz | |
| 3rd Order IM (PIM3) | — | |
| Working Vlotage | 330V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥1000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥10000MΩ | |
| Center Conductor Retention Force | ≥0.5N | |
| Coupling Nut Retention Force | ≥300N | |
| Contact Resistance | Center Contact ≤4mΩ | Outer Contact ≤2 mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni and Au |
| Insulator | PTFE | — |
| Inner Conductor | Beryllium Bronze | Au |
| Resilient Contact | Phosphor Bronze | Au |
| Coupling Nut /Sealing Cap | Brass | Ni |
| Gasket | — | — |
| Cable Clamp | Brass | Ag |
| Ferrule | Annealed Copper | Ni |
| Environmental | ||
| Operating Temperature | -45 ℃~-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | FLEX-3 75ohm Coaxial Cable | |
