Air Cooling Ceramic Heater With Ceramic Fins for Extruder

Specifications

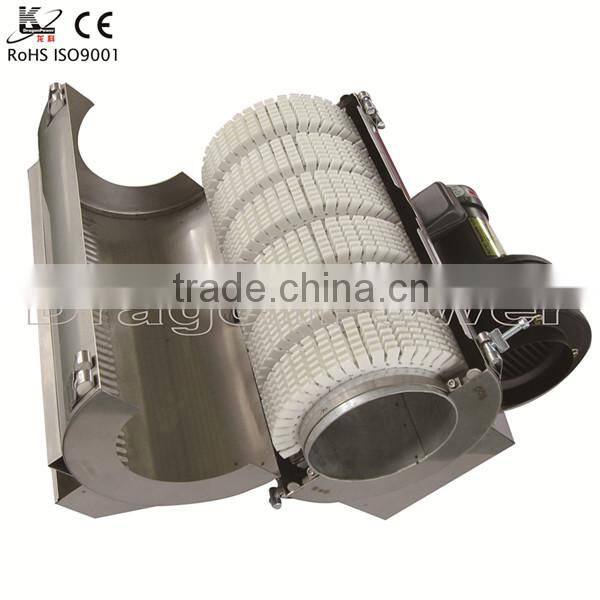

  Air Cooling Ceramic Heater With Ceramic Fins

Description

Ceramic band  industrial heater is mainly used for extrusion, casting and down-stroke machines. The operating temperature can reach up to 600°C. The maximum surface loading rate is 8 W/sqm.Its advantages include fast speed of heating, high rate of heat utilization, excellent energy saving (energy consumption is reduced by 30%), high resistance of high temperature creep, long lifetime, resistance of high temperature and high insulation rate. It is one of the most suiTable: electric heaters for plastic extrusion and injection machines, plastic hollow and blowing machines and chemical fibre moulding machines.

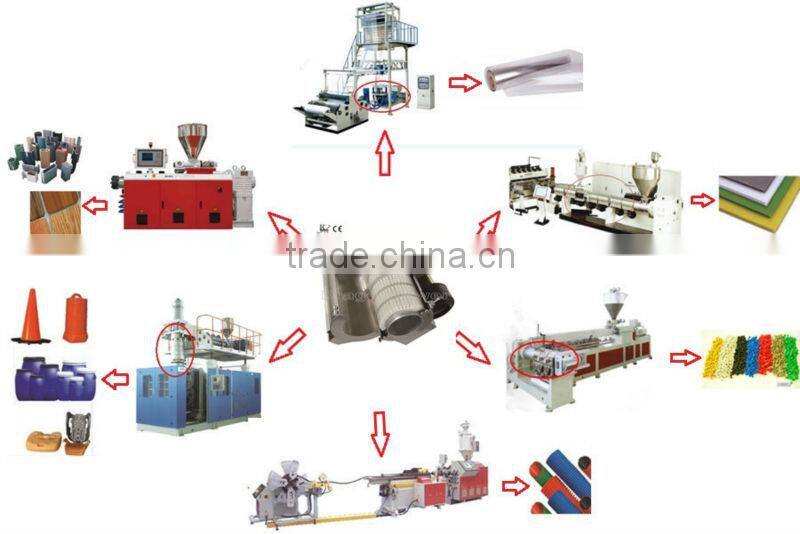

• Plastic injection moulding machine
• Hollow shaping machine/Blow-molding machine
• Extrusion machine/Co-extrusion line
• Raw material processing equipment
• Pelletizing equipment
• Granular machine
• All types of plastics processing machines

Rigorous working and best after-sales services guarantee the first class quality for customers worldwide!

Our factory

 Certificates

We will attend 2013 K Show 16.—23. October in Dusselduff Germany

Welcome to visit our booth HALL 16C58 !

Order Guide

Please specify the following when ordering.

1. The inner diameter (mm)  (or outer diameter when the heater is used inside)  and length (mm) of heaters
2. width of heaters
3. Voltage and power density
4. Position and size of the hole for thermocouple
5. Wiring type and position
6. Content of the stamping if needed
7. Special gap if Necessary
8. Order quantity
9. Delivery date

* It’s better to provide us with the drawings/pictures
