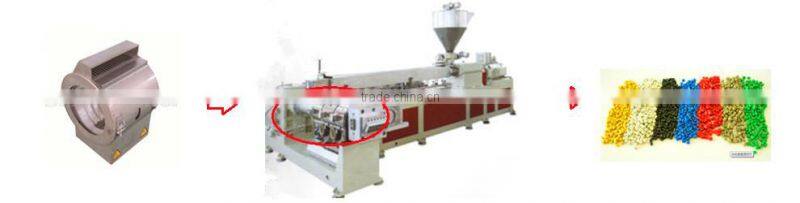

Cast Aluminum Heater for Blowing Moulding Machine

Specifications

 Cast Aluminum for Extrusion Line (PVC wide floor leathear)

Description

Mica heater is mainly used in (1) plastic injection moulding machine, (2) the heating part of the machine head of hollow shaping machine, and (3) the heating system of extrusion machine. The operating temperature can reach up to 350°C. Its characteristic features include compactness in size, fast speed of heating, well designed in shape and excellent heat exchange capability. It is an indispensable heating element in the rubber and plastics industries worldwide. The maximum surface loading rate is 6.5 W/sqcm.

1. Types

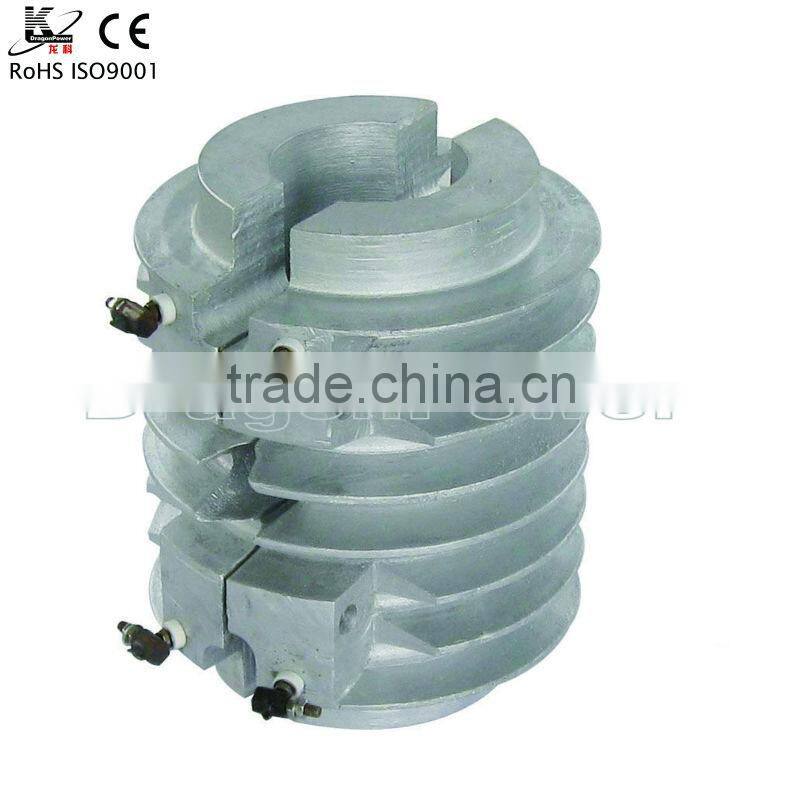

Cast aluminum band heater with water cooling system inside



E

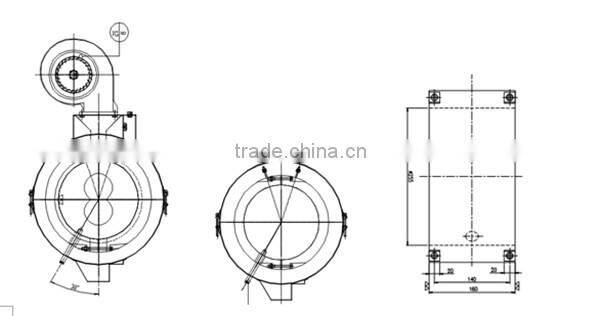

Air cooling cast aluminum heater with inner air ducts













  Air cooling cast aluminum heater with outer air ducts

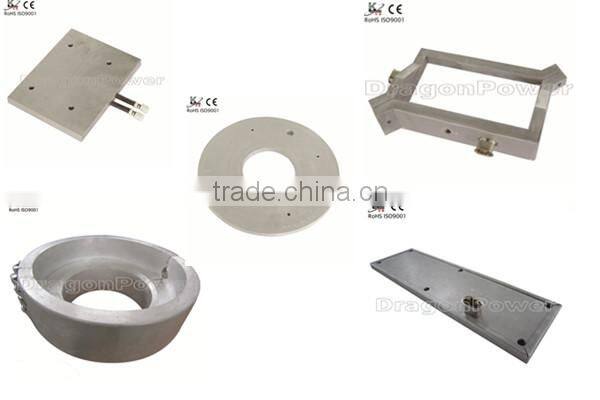

Other Types Aluminum Heater











2.Application Cases

• Plastic injection moulding machine

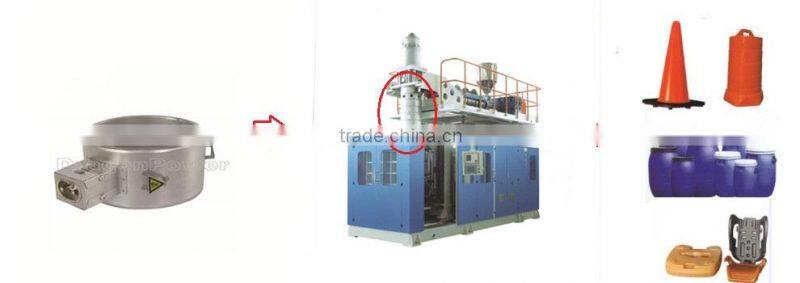

• Hollow shaping machine/Blow-molding machine

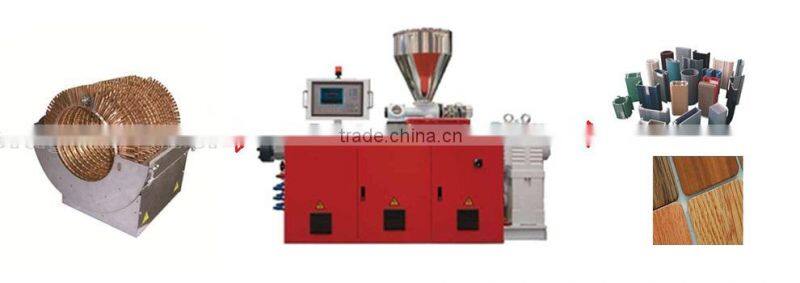

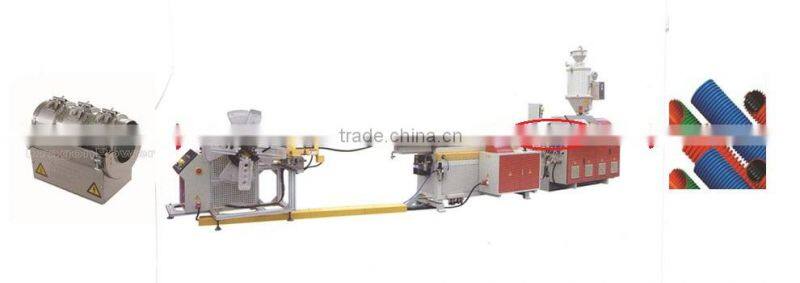

• Extrusion machine/Co-extrusion line
• Raw material processing equipment
• Pelletizing equipment
• Granular machine

Rigorous working and best after-sales services guarantee the first class quality for customers worldwide!

Our factory

Certificates

International Exhibition 2013

Order Guide

Please specify the following when ordering.

1. The inner diameter (mm) and length (mm) of heaters
2. Thickness of heaters
3. Terminal length (max & min) and the distance of terminal length
4. The diameter, length of cooling tubes and the distance between them.
5. Voltage and power density
6. Gap of two pieces if applicable
7. Wiring type and position
8. Whether need air blowers
9. Content of the stamping if needed
10. Order quantity
11. Delivery date

* It’s better to provide us with the drawings/pictures

Others: position of terminal box, the position and size of the hole for connecting thermocouple OR of the incision, whether need to cast in the terminal
