Introduction:
21/35kV, 26/35kV

Model No.: YJZGG

Test Standard:

IEC 60502

Each product will carry out the routine test in high-voltage lab of the company.

a. Partial discharge test                       b. Voltage withstand test

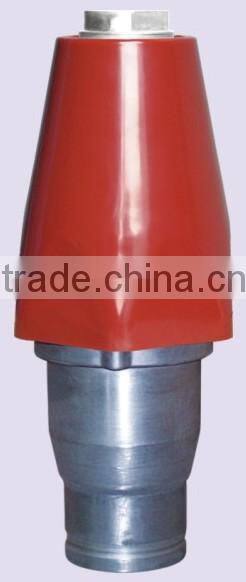

The product is XLPE cable indoor termination, and suitable for GIS switchgear / transformer. The GIS termination consists of stress cone and Epoxy busing. We have both assembly type and plug-in type.


The Main Feature:
Termination adopt wiping sleeve and spring integrated compact structure. The stress cone is compressed tightly on the wall of epoxy bushing. It overcome the stress cone elasticity loose and bad contact between stress cone and cable semi-conductive layer caused by material aging. This ensure the long time safety running of the cable termination.

Stress cone adopt silicone rubber. The whole termination is fully dry type, no need any casting agent. It eliminate the oil leakage during running and extend the service life.

Our company can provide 1#, 2#, 3# socket and stop end to Match the product.

Compact structure, light weight, small volume and easy to install.

When ordering, please state the following data:

1). Voltage

2). Conductor material copper or aluminum

3). Conductor cross section diameter

4). Diameter of insulation

5). Outer diameter of cable

Quality warranty & after sales service:

1. Secure production under ISO9001 & ISO14001 and OHSAS 18001 system;

2. 2-year warranty;

3. Can provide service of installation or training your installation workers.

4. Service Life: 30 years
