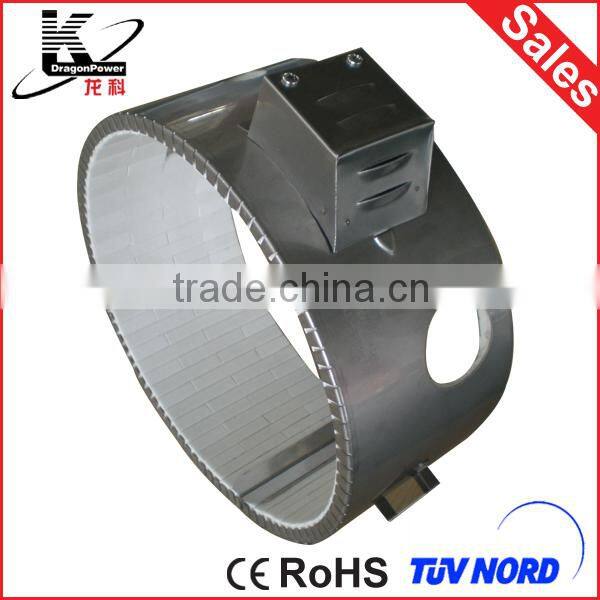

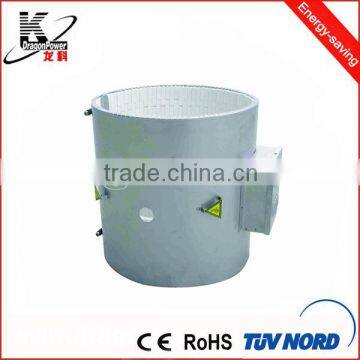

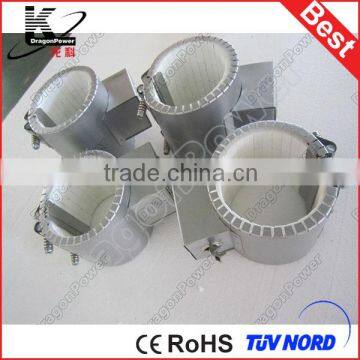

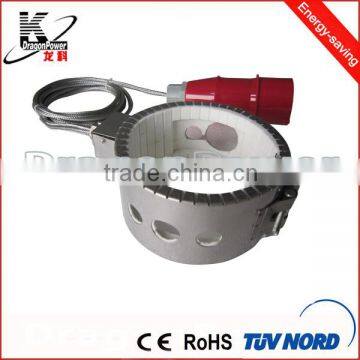

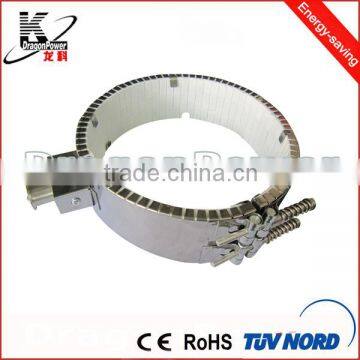

Ceramic band heater, mainly used for extrusion,casting and down-stroke machines. The operating temperature can reach up to 600 degree C. The maximum surface loading rate is 8 w/ cm2. Its advantages include fast speed of heating, high rate of heat utilization, excellent energy saving(energy consumption is reduced by 30%), high resistance of high insulation rate. It is one of the most suitable: electric heaters for plastic extrusion and injection machines, plastic hollow and blowing machines and chemical fibre moulding machines.
| Model | Dimension(mm) | Voltage(v) | Power(w) |
| LK-TC Φ 125*51 | 125*51 | 230 | 500 |
| LK-TC Φ 105*66 | 105*66 | 230 | 800 |
| LK-TC Φ 185*51 | 185*51 | 230 | 1100 |
| LK-TC Φ 190*85 | 190*85 | 230 | 1500 |
| LK-TC Φ 220*75 | 220*75 | 230 | 1700 |
| LK-TC Φ 180*90 | 180*90 | 230 | 1700 |
| Key Technical Indexes |
1.Use condition:environment temperature -20~+60 degree C 2.Leakage current:<0.5MA 3.Insulation resistance:>=5M 4.Ground resistance:<0.1 5.Voltage resistance:no electric breakdown for 1 minute under 1500v 6.Temperature endurance:500-800 degree C 7.Power deviation:+5%-10% |
Note:other models are available according to your specifications.
Ceramic Plate Applications:
1.Plastic injection moulding machine
2.Hollow shaping machine/Blow-molding machine
3.Extrusion machine/Co-extrusion line
4.Raw material processing equipment
5.Pelletizing equipment
6.Granular machine
7.All types of plastics processing machines
Packaging & Shipping:
Packaging: ceramic plates for Injection molding in plywood case outside if needed.
Shipping: 1.small quantity by DHL,FEDEX. 2.Bulk goods by Sea Freight. 3. Arranged to your order.
Our Service:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support ( with overseas sevice available)
5. Simple ordering procedure: Email, fax or mail.
Order Guide for ceramic plates:
Please specify the following when ordering.
- The inner diameter (mm) and length (mm) of heaters
- Thickness of heaters
- Terminal length (max & min) and the distance of terminal length
- The diameter, length of cooling tubes and the distance between them.
- Voltage and power density
- Gap of two pieces if applicable
- Wiring type and position
- Whether need air blowers
- Content of the stamping if needed
- Order quantity
- Delivery date
** It’s better to provide us with the drawings/pictures
Others: position of terminal box, the position and size of the hole for connecting thermocouple OR of the incision, whether need to cast in the terminal
