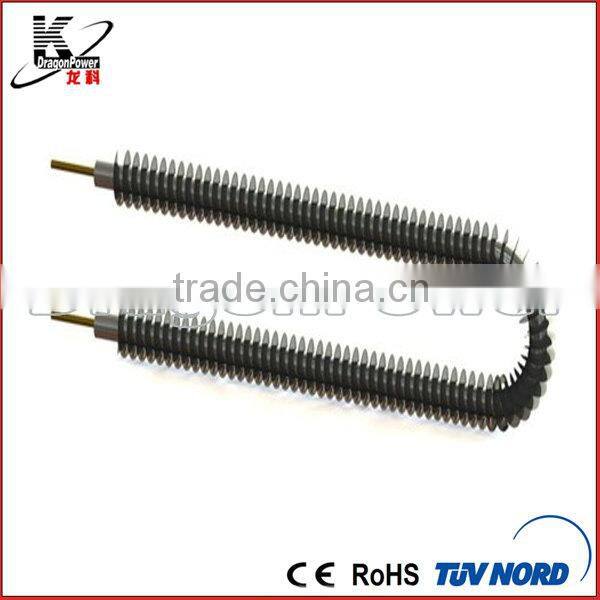

Tubular Heater Description:
These components are mainly used in aerospace, petrochemical, rubber and plastics industries, and the like. It can be used to heat still or flowing air, water, oil, nitrate, alkali and other kinds of liquid. It can also be used to melt light metal or to heat metal moulds. It has advantages such as simple structure, long lifetime, high thermal efficiency, reliable and safe operation and so on.
Tubular Heater Table:
Model | Dimension(mm) | Voltage(V) | Power(W) | Key Technical Indexes |
LK-GZ-Φ12Χ1000 | Φ12Χ1000 | 220 | 2000 | 1.Use condition: environment temperature -20~+60°C, Relative temperature <95% 2.Leakage current:<0.5MA 3.Insulation resistance:≥5 4.Ground resistance:<0.1 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance:100-1200°C |
LK-GZ-Φ14Χ1500 | Φ14Χ1500 | 220 | 3000 | |
LK-GZ-Φ16Χ2000 | Φ16Χ2000 | 220 | 4000 | |
LK-GZ-Φ20Χ1600 | Φ20Χ1600 | 220 | 4500 | |
Note: Other models are available according to your specifications. Please refer to the Order Guide | ||||

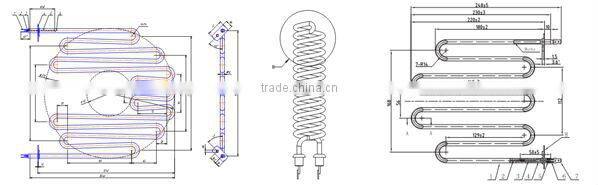

Tubular Heater Type:
Related Products
Packaging and Shipping
Packaging: Tubular heater in plywood case outside if needed.
Shipment: 1.small quantity by DHL,FEDEX 2.Bulk goods by Sea Freight. 3. Arranged to your order
Our Service
Customized service
One year warranty period
Professional purchasing guid
Technial support
After-service: Overseas service center available
DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services.
Tubular Heater Order Guide:
Please specify the following when ordering:
- Diameter (mm) of tubular heaters
- Total length of heaters when extended (mm)
- Type of leads and length
- Voltage and power density
- Content of the stamping if needed
- Order quantity
- Delivery date
* As it is difficult to see the internal construction of tubular heaters, it’s better to provide us with the drawings/pictures
