CE Certificate Flexible Waterproof Insultion Jacket Blanket

>>More detail

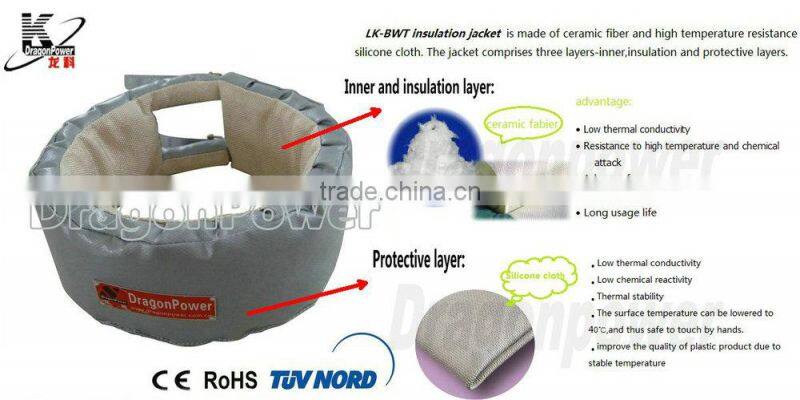

Insulation Blanket/Jacket Characters :

Material

1.Outside-this layer is shown outside on the top level;  generally,  it is fabricated by waterproof  fabric such as glass cloth with silicone coated or PTFE (Polytetrafluoroethylene) to avoid water or fluid

damaging insulating material .

2. Middle – this layer is also important for protecting heat lost, so we regularly use both fiberglass wool,rock wool and ceramic wool.

3.Inside – this layer contact directly with heated surface, and we normally use fiberglass cloth (500 C) as our main materials – sometimes it also depends on customer’s requirements.

 Insulation Blanket/Jacket Advantages :

1. Save 20%-45% energy in general

2. The surface temperature can be lowered to 40degree centigrade, and thus safe to touch by hands

3. Made to order by customer’s requirement to ensure 100% fit between heaters and jackets

4. Easy to install by buckles, by aligning the wiring terminals and thermocouple holes

5. Improve the quality of plastic products due to stable temperature

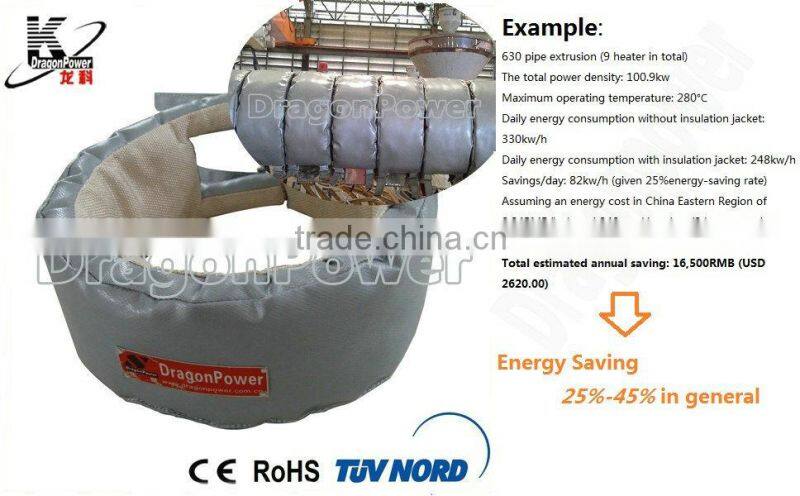

6. Short return on investment period (with 20% energy-saving rate, it takes 4 to 5 months to recover the cost. The higher the rate is, the less time it takes)

7. Long usage life of jacket (also can extend the life of heater by preventing it from continuous heating. And thus extend the lives of barrel and screw)

8. Water and oil proof, multi-layer protection, anti corrosion, easy to clean, easy to bend, pollution free and neat out looking.

l Dimension, cut/hole sizes and positions are required for quotation. Drawings and pictures are preferred.

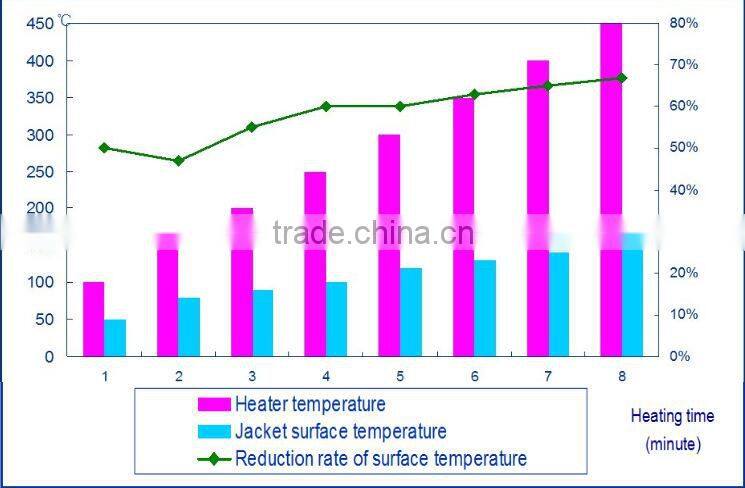

Reduction of Surface Temperature of blanket cover

(Thickness of Insulation 25mm)

Related Products:

 DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services.

Please send us the specifications of the applied objects, e.g. the inner, outer diamter of the heating bands, etc
